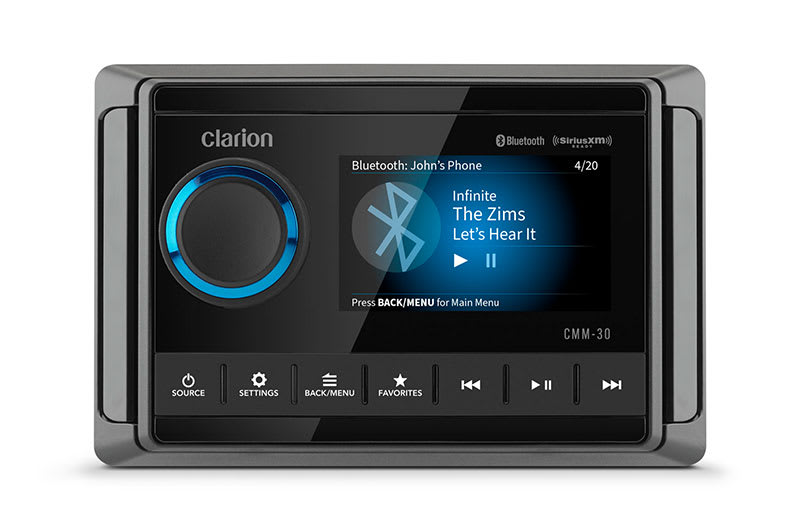

Clarion 010-03224-00 Marine AM/FM Tuner with built-in NOAA Weather Radio and SiriusXM-Ready Satellite Radio
Clarion 010-03224-00 Marine AM/FM Tuner with built-in NOAA Weather Radio and SiriusXM-Ready Satellite Radio
Clarion - 010-03224-00
Regular price
$429.99 USD
Regular price
$515.99 USD
Sale price
$429.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Clarion® Marine Source Unit
With LCD Display (CMM-30)
PART NUMBER010-03224-00
Marine AM/FM Tuner with built-in NOAA Weather Radio and SiriusXM-Ready Satellite Radio (Tuner and Antenna sold separately)
General |
|
| Physical dimensions (Height) | CMM-30: 3.90" (99 mm) CMM-30BB: 7.90" (201 mm) |
|---|---|
| Physical dimensions (Width) | CMM-30: 5.94" (151 mm) CMM-30BB: 5.42" (138 mm) |
| Physical dimensions (Depth) | CMM-30: 2.95" (75 mm) CMM-30BB: 2.01" (138 mm) |
| Control Surface Dust/Water Rating (when properly installed) | IP66 |
| Operating temperature range | -4° F to +140° F (-20° C to +60° C) |
| Current draw (max) | 15 A |
| Warranty | 1 year |
Networking |
|
| NMEA 2000® LEN | 1 (50 mA) |
|---|---|
| Bluetooth® wireless range | Up to 35 ft (11 meters) |
| Wireless frequencies/protocols | BLUETOOTH® |
Audio |
|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 25 W x 4 |
|---|---|
Electrical Features |
|
| Power Input | 10-16 VDC |
|---|---|
Stereo Features |
|
| Display size | CMM-30: 3" (76 mm) |
|---|---|
| Display type | CMM-30: color TFT LCD backlit |
| Display resolution | CMM-30: 640 x 360 |
| Optically bonded display | yes (CMM-30) |
| Built-in amplifier | Class D (2 Ω stereo-stable) |
| Multi-Zone™ technology | |
| Bluetooth® wireless technology | |
| SiriusXM-ready | |
| Multi-language interface | English |
| Software updates | |
Sources |
|
| Supported sources |
Digital AM/FM with RDS/NOAA Weather Radio (US only)/BLUETOOTH®/USB audio/iPhone/iPod/AUX/SiriusXM-Ready (USA & CA only, requires subscription and SiriusXM Connect vehicle tuner) |
|---|---|
| Supported audio formats (USB) | MP3, WMA, FLAC, WAV |
Connections |
|
| Auxiliary inputs (RCA) | 1 (2V or 1V RMS Input Sensitivity) |
|---|---|
| NMEA 2000® ports | 1 (Micro-C connector) |
| USB 2.0 ports | 1 High-speed connection for use with iPhone®/iPod® (MFi Certified) or USB storage device (2.1 A charging output) |
| SiriusXM ports | 1 |
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zones amplified) |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 4 zones (L+R) or Zone 4 as subwoofer |
| Line out (requires external amplification) | 4 (L + R per zone) |
| Subwoofer out (requires external amplification) | Occupies Zone 4 |
