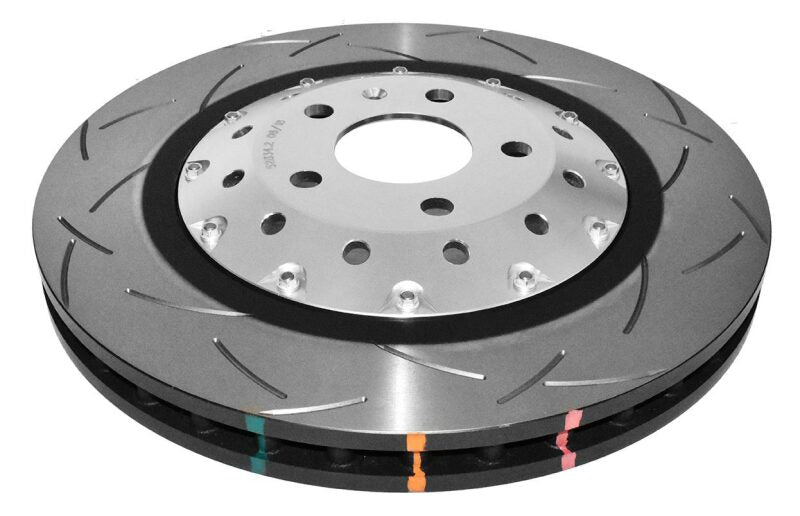

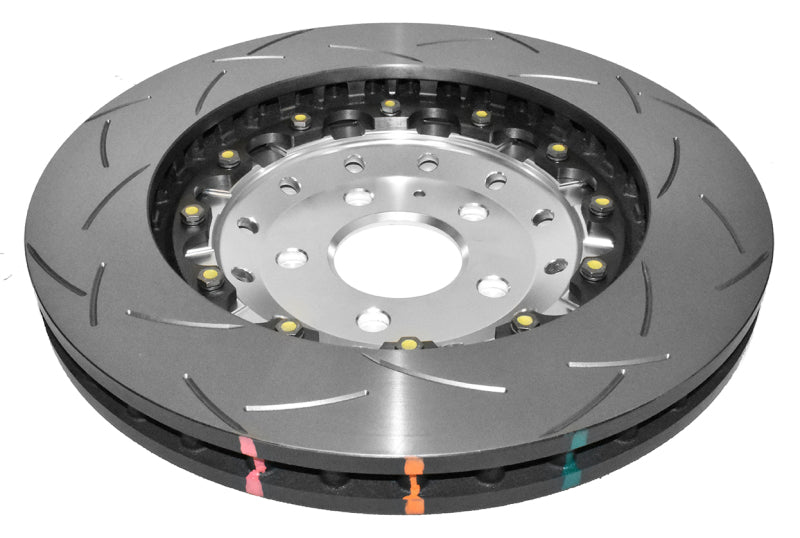

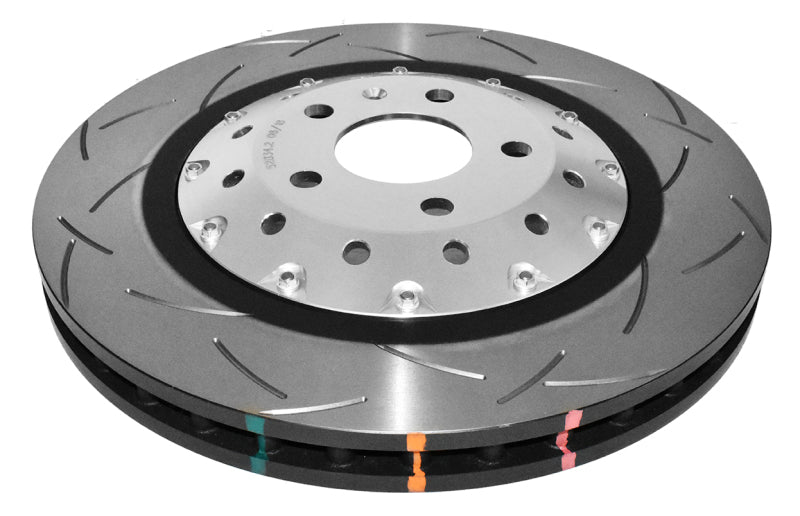

DBA 52834SLVS 5000 Series T3 Slotted Front Brake Rotor with Silver Hat for Audi R8 and RS5

Sharing all the benefits of the 4000 Series, DBA's 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminum hats (T6061-T6), held together with National Aerospace Standards (NAS) bolts and crimp nuts. The 5000 Series share all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via aluminum hats. The use of aerospace grade aluminum hats reduces the unsprung weight of the brake rotors, while allowing for uniform radial disc expansion through the cast iron rings, and reduced heat transfer from disc to hub via the aluminum hats. DBA offers both complete assemblies for first time replacement (hats and flat discs bolted together) along with replacement hats and flat disc rotors (rings). This allows drivers to re-use their DBA 5000 Series hats with DBA replacement flat discs (rings). DBA recommends the 5000 Series for high performance street vehicles, track day and club racing and rally applications. Sharing all the benefits of the 4000 Series, DBA's 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances. DBA's 5000 Series rotors feature: Aluminium hats (T6061-T6), National Aerospace Standard (NAS) bolts and crimp nuts, Replacement disc rotors available, XG-150 High Carbon Alloyed Iron, TSP (Thermal Stability Profiling), Thermo-graphic Paint markings (THGP), Direct replacement suitability, Moisture proof corrosion protection packaging

The DBA 52834SLVS 5000 Series T3 slotted front brake rotor is a direct-replacement, two-piece brake rotor designed for high-performance street vehicles, track-day driving, club racing, and rally applications. Combining a high-carbon XG-150 cast-iron disc with an aerospace-grade T6061-T6 aluminum hat, this rotor delivers improved heat management and reduced unsprung weight compared with conventional one-piece designs.

DBA’s 5000 Series incorporates Thermal Stability Profiling (TSP) to help promote consistent braking performance during repeated high-temperature use. The slotted T3 disc design supports efficient friction-material cleaning and heat dissipation, while thermographic paint markings help indicate operating temperatures. The aluminum hat also helps reduce heat transfer from the disc to the hub and allows controlled radial expansion through the cast-iron ring.

The DBA 52834SLVS uses National Aerospace Standards (NAS) bolts and crimp nuts for secure assembly and is supplied with a silver-finished hat. Replacement flat disc rings are available separately, allowing compatible DBA 5000 Series hats to be reused during future service. Moisture-resistant corrosion-protection packaging helps preserve the rotor during storage and transport. This front rotor fits select Audi R8 and Audi RS5 applications, including the listed 2010–2012 R8 and 2013–2015 RS5 configurations; verify vehicle year, brake package, and application before ordering.

What's Included

• One DBA 5000 Series T3 slotted front brake rotor assembly
• Silver T6061-T6 aluminum hat
• Preassembled high-carbon cast-iron disc ring
• NAS bolts and crimp nuts

Features:

• Two-Piece Composite Design: Combines a high-carbon cast-iron disc ring with a lightweight aerospace-grade aluminum hat to reduce unsprung weight and improve heat control.
• T3 Slotted Disc: Precision slotting helps clean the pad surface, manage heat, and support consistent braking performance during demanding driving.
• Thermal Stability Profiling: DBA TSP technology helps promote controlled heat distribution and resistance to performance variation under repeated braking.
• High-Performance Direct Replacement: Designed for select Audi R8 and RS5 front-brake applications, with replacement disc rings available for future service.

Fitments:
2008 Audi R8 Base
2009 Audi R8 Base
2010 Audi R8 Base
2011 Audi R8 Base
2011 Audi R8 Spyder
2012 Audi R8 Base
2012 Audi R8 GT
2012 Audi R8 GT Spyder
2012 Audi R8 Spyder
2013 Audi RS5 Base
2015 Audi RS5 Base
2015 Audi RS5 Cabriolet
2018 Audi R8 Base
2018 Audi R8 Plus
2018 Audi R8 Plus Spyder
2018 Audi R8 RWS
2018 Audi R8 Spyder

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Regular Stock: false
Units Per Sku: 1
