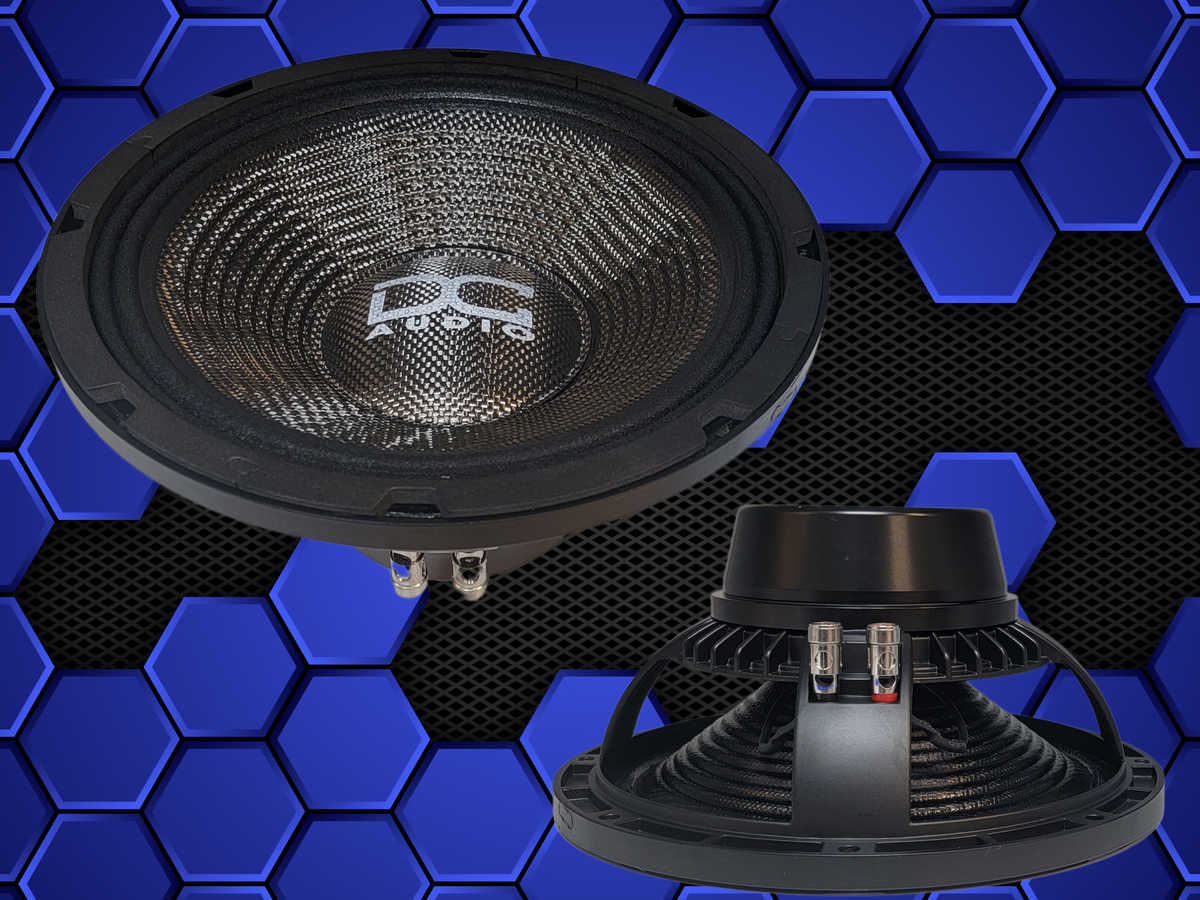

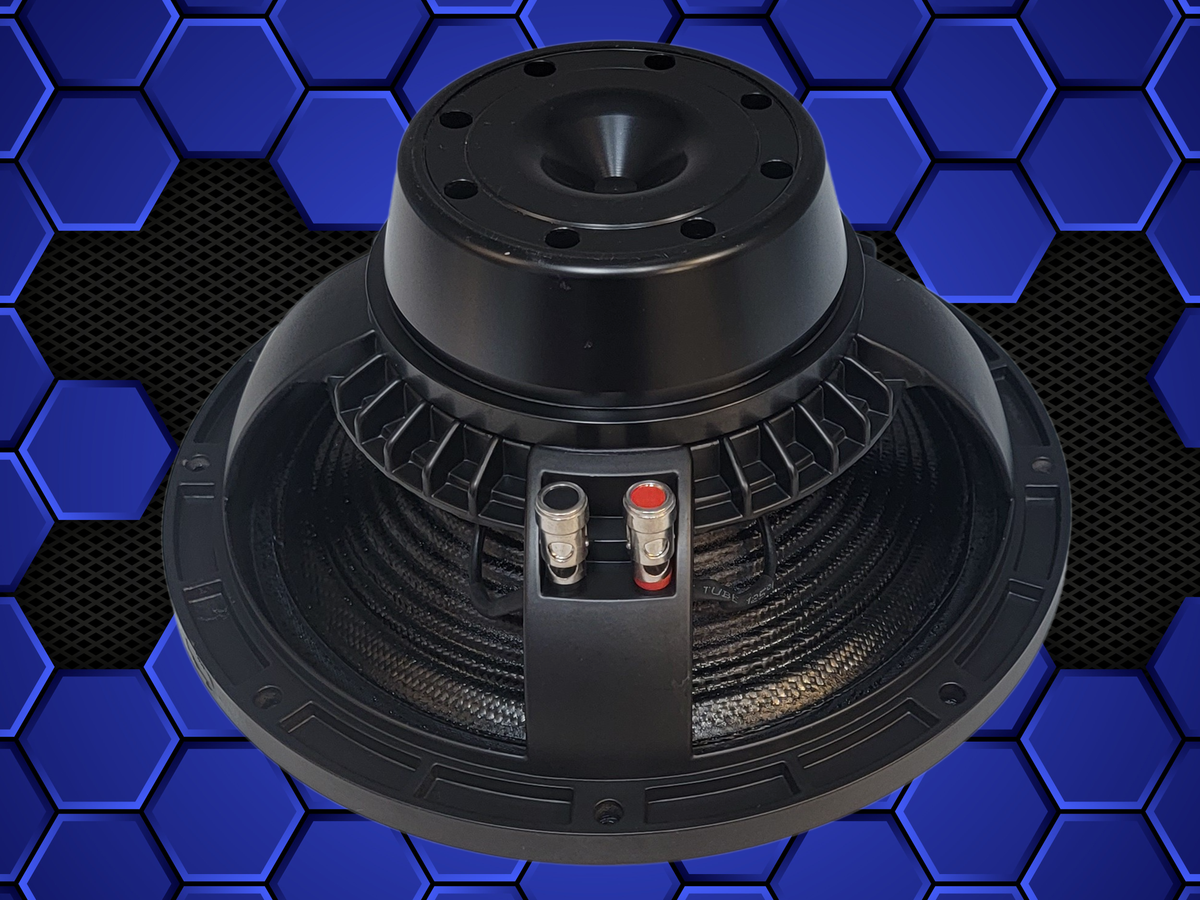

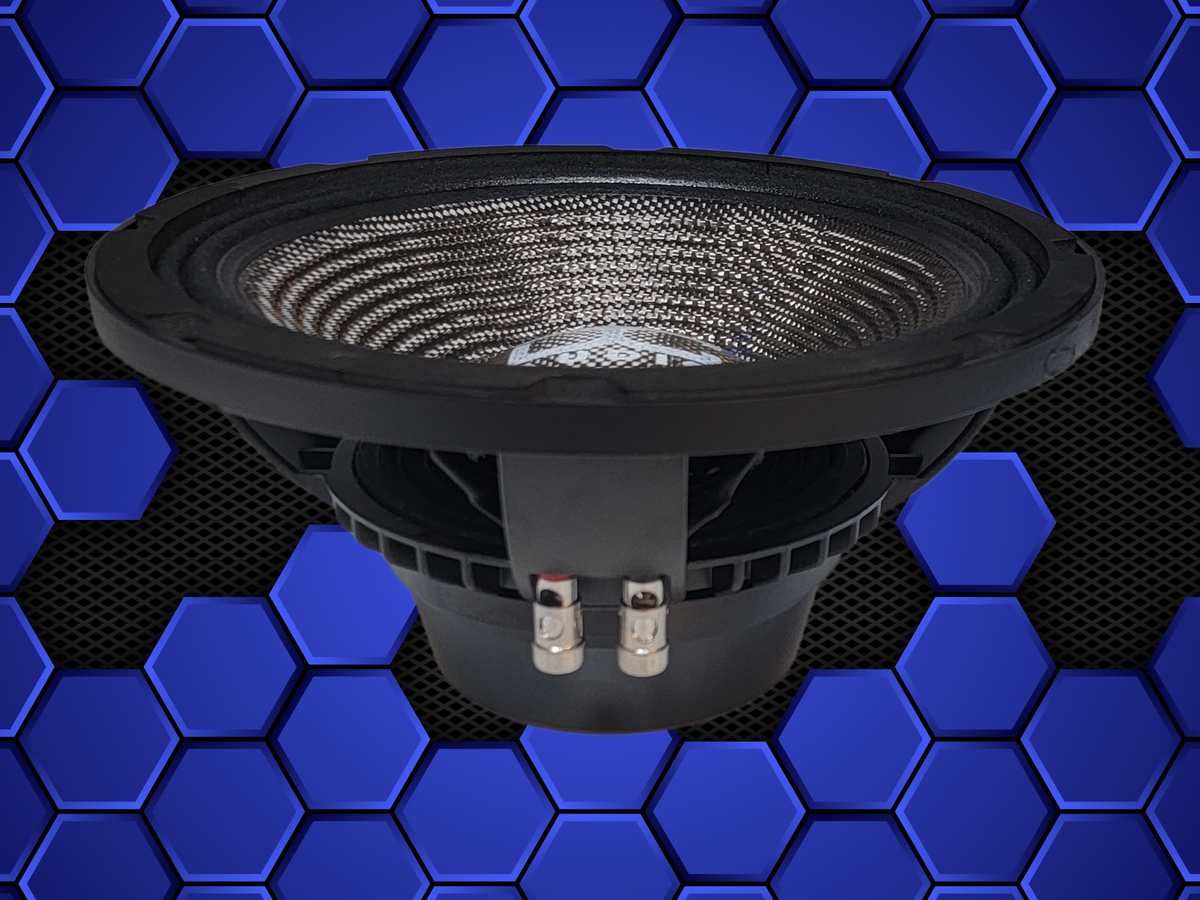

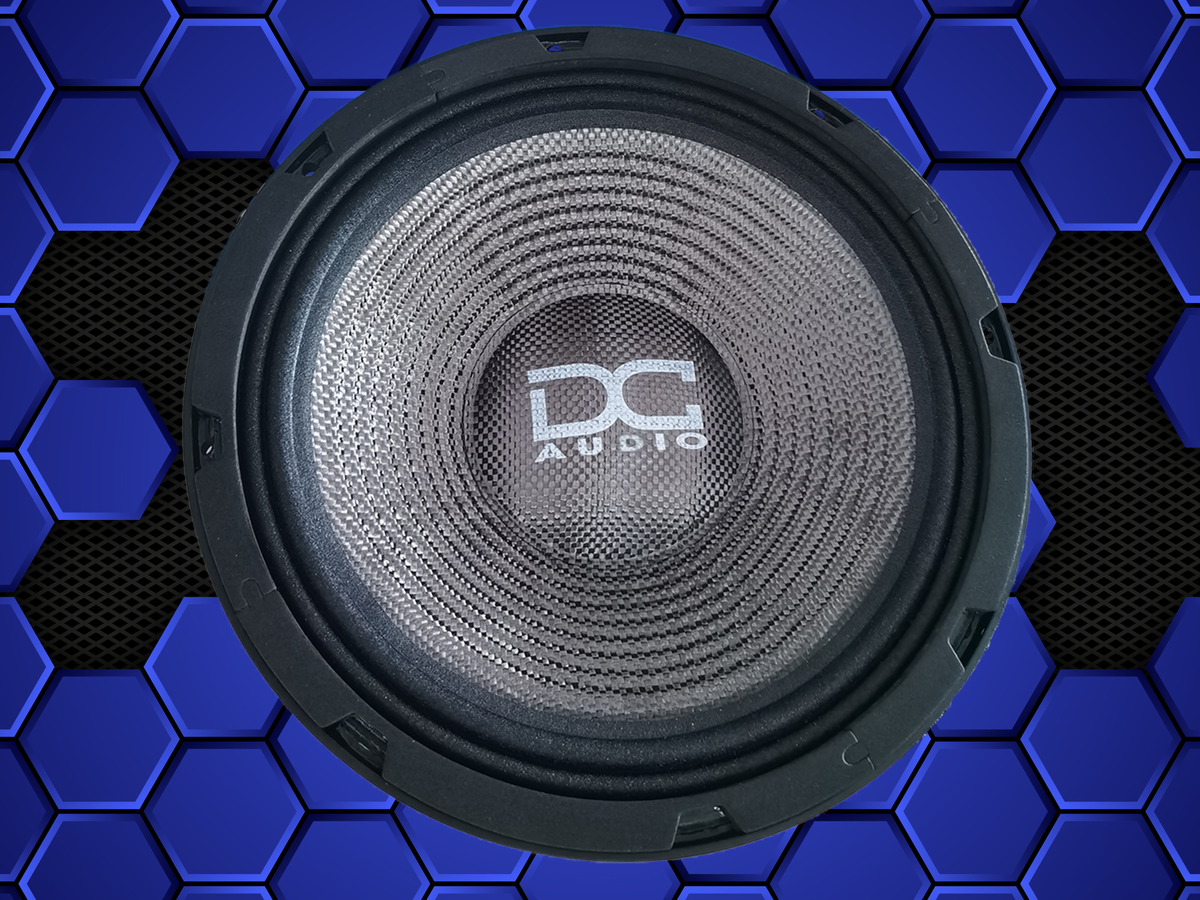

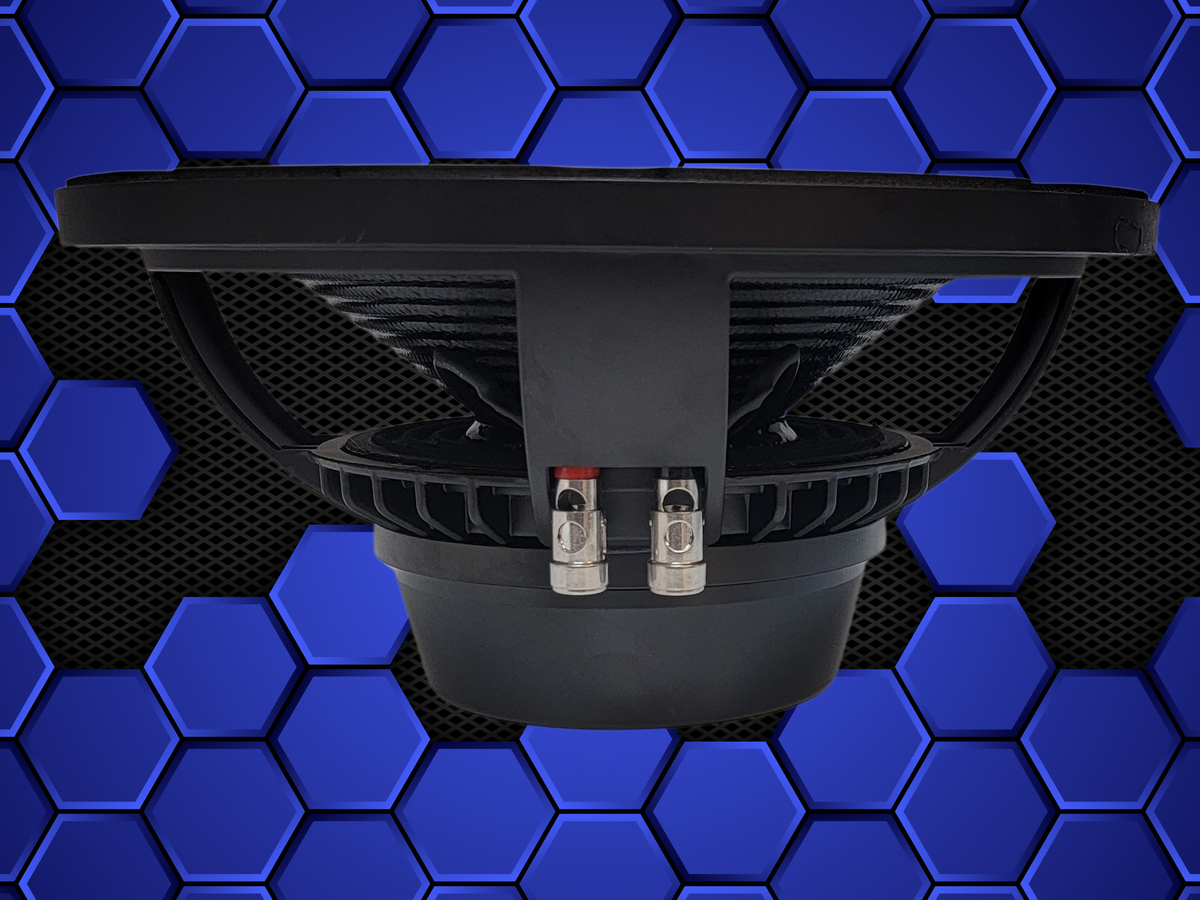

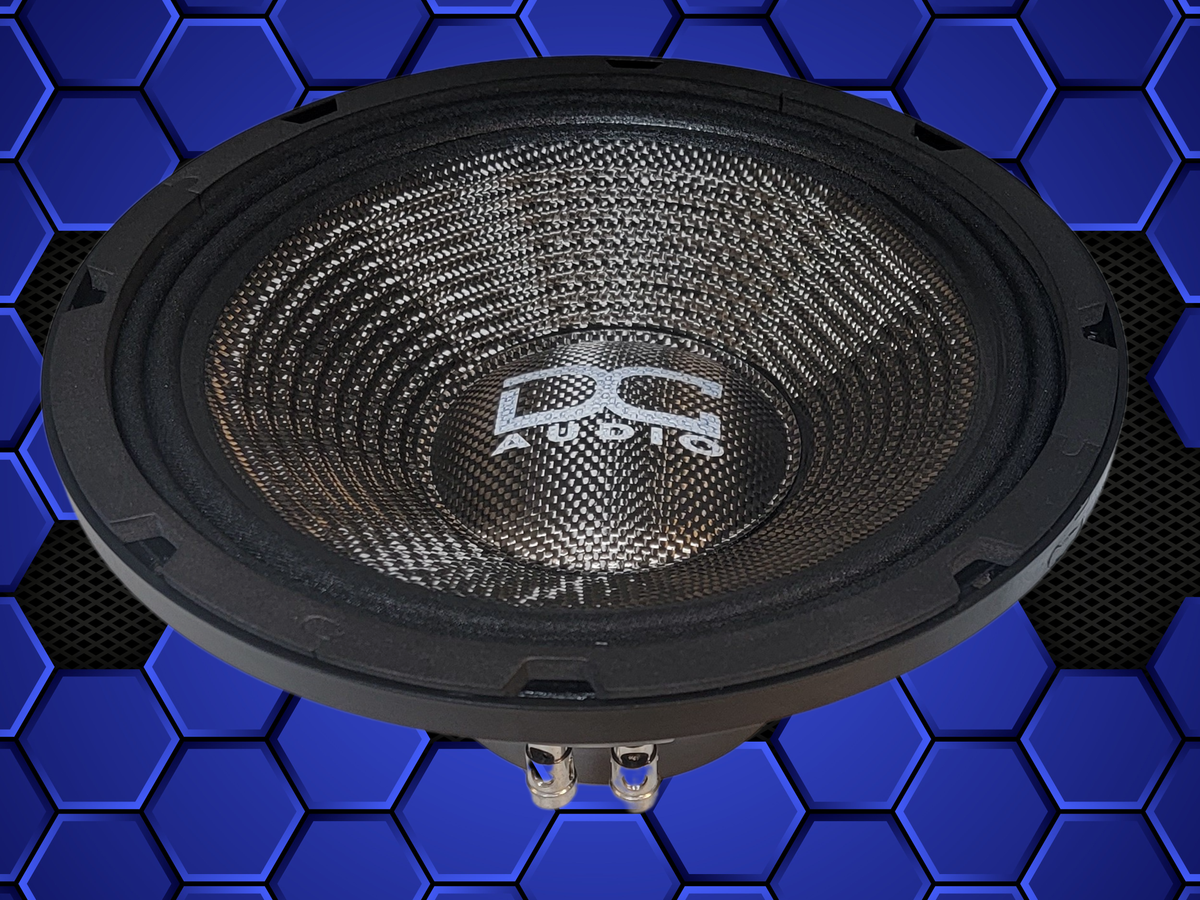

DC Audio NEO CF 10" Full Range Pro Audio

DC Audio 10" Pro Audio Speaker

Power Rating 400 watts RMS 800 watt Program

Frequency Response: 55hz-3khz

3" Aluminum Voice Coil

4 or 8 ohms impedance options

Sensitivity 1w/1m 100db

Cut Out 9.25"

Outside Diameter 10.25”

Mounting Depth 4.95

Cast Frame

Carbon Cone and Dust Cap

Magnet Material: Neodymium

Sold in Individuals

T/S Parameters

RE: 6.8

BL: 16.84

MMS: 50.51

QTS: 0.37

QMS: 4.28

QES: 0.4126

CMS: 0.1706

VAS: 25.58

FS: 54.21

SD: 0.0346

** These Speakers are for High Output Applications and 99% of the time require custom installations or modifications to fit the Massive Motor and Frame used for the Pro Audio Line up
