DEI Fire Sleeve 1-Inch Inside Diameter x 25-Foot Spool, Part Number 92474

Fire Sleeve solves the problem of heat and abrasions damaging fuel, transmission and brake lines and is a fireproof solution. Constructed from a high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100% iron oxide silicone rubber, Fire Sleeve thermal insulator sleeve provides the ultimate in heat insulation and protection from direct heat up to 500°F. Insulates wiring, hoses, oil / brakes / transmission lines & more Use for bundling & protecting hoses, electrical wiring, etc. Withstands 2000°F of intermittent heat Size: 1 inch x 25 feet Fitment Chart AN Conversion Chart AN Size Metal Tube O.D. Thread Size 2 1/8 in. 5/16 24 SAE 3 3/16 in. 3/8 24 SAE 4 1/4 in. 7/16 20 SAE 5 5/16 in. 3/8 18 SAE 6 3/8 in. 9/16 18 SAE 8 1/2 in. 3/4 16 SAE 10 5/8 in. 7/8 14 SAE 12 3/4 in. 1-1/16 12 SAE 16 1 in. 1-5/16 12 SAE 20 1-1/4 in. 1-5/8 12 SAE 24 1-1/2 in. 1-7/8 12 SAE 28 1-3/4 in. 2-1/4 12 SAE 32 2 in. 2-1/2 12 SAE Fire Sleeve Application Chart Part# Name Line Size* 10470 3/8 in. Fire Sleeve 3AN4AN6AN** 10472 5/8 in. Fire Sleeve 6AN8AN 10474 1 in. Fire Sleeve 10AN12AN16AN**5/8 in. Heater Hose3/4 in. Heater Hose *Braided Kevlar line was used in testing. You may notice a slight difference in size if you have Braided Stainless Steel lines. **Tight fit: If you have fittings on your line, you may need to order one size up. You can achieve between 1/16 in. and 1/8 in. stretch out of our material. This may help on installs with fittings already on the lines. One 25 foot roll of Fire Sleeve with a 1 inch inside diameter. Fire Sleeve solves the problem of heat and abrasions damaging fuel, transmission and brake lines and is a fireproof solution. Constructed from a high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100% iron oxide silicone rubber, Fire Sleeve thermal insulator sleeve provides the ultimate in heat insulation and protection from direct heat up to 500F. Insulates wiring, hoses, oil / brakes / transmission lines & more Use for bundling & protecting hoses, electrical wiring, etc. Withstands 2000F of intermittent heat Size: 1 inch x 25 feet Universal

• Withstands 500 Degrees F Continuous/2000 Degrees F Intermittent Heat
• Insulates Wiring/Hoses/Oil/Brake / Transmission Lines And More
• Use For Bundling And Protecting Hoses; Electrical Wiring Etc.
• Burn Protection During Under Hood Repairs And Maintenance
• Use For Bundling And Protecting Hoses
• Fire Tape Not Included
• Electrical Wiring Etc.

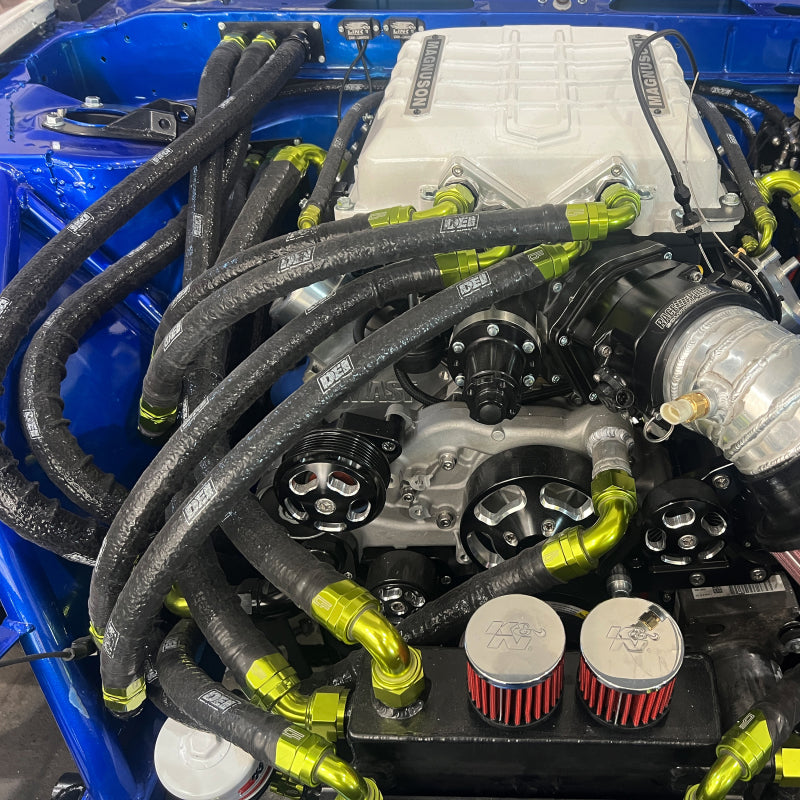

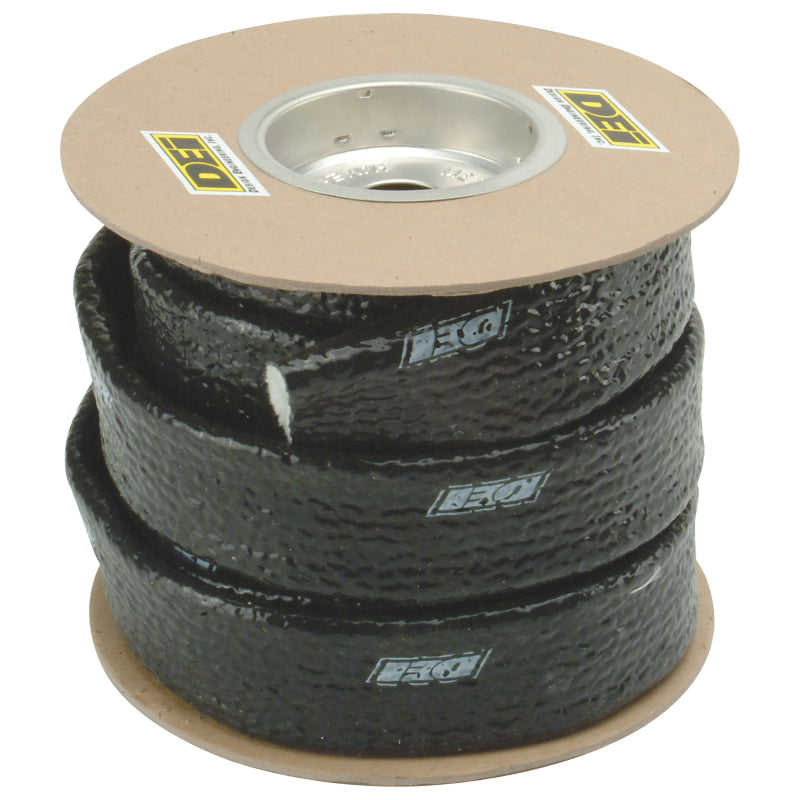

DEI Fire Sleeve is a high-temperature thermal protection sleeve designed to help shield fuel, transmission, brake, oil, heater, and other automotive lines from heat and abrasion. Part Number 92474 provides a 1-inch inside diameter and comes as a 25-foot spool, making it suitable for protecting multiple lines, bundling hoses, or insulating electrical wiring in demanding automotive applications.

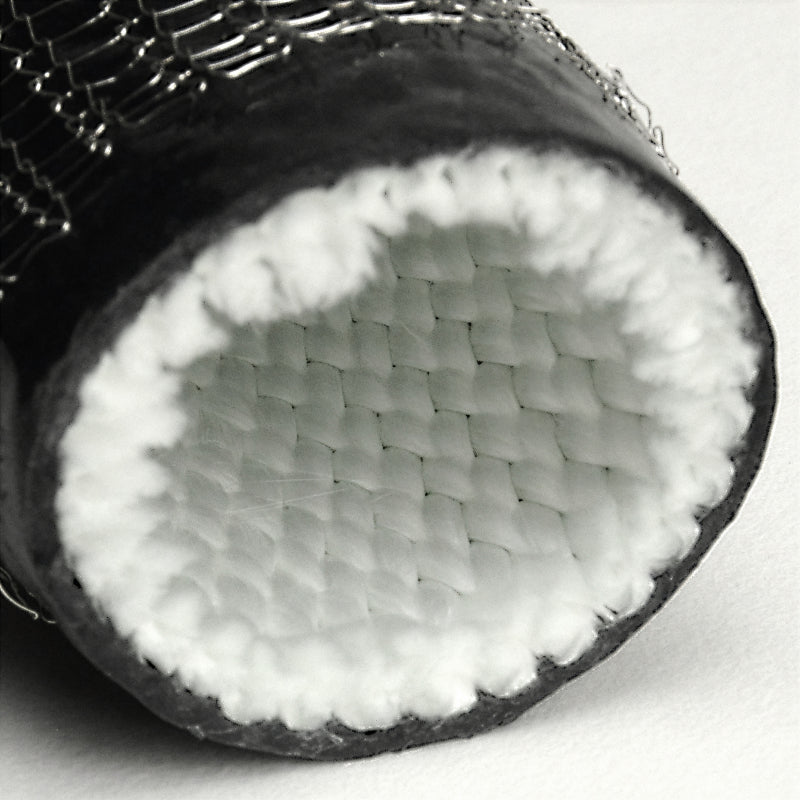

The sleeve is constructed from high-temperature braided glass material woven into a flexible sleeve and heavily coated with 100% iron oxide silicone rubber. It withstands up to 500°F of continuous heat and up to 2,000°F of intermittent heat, helping reduce heat exposure near exhaust components and other high-temperature areas. DEI Fire Sleeve can also provide burn protection during under-hood repairs and routine maintenance.

This universal sleeve is compatible with a variety of line sizes, including many 10AN, 12AN, and 16AN applications, as well as 5/8-inch and 3/4-inch heater hose. A tight fit may occur when fittings are already installed, so selecting a larger sleeve size may be appropriate for certain installations. Braided Kevlar and braided stainless steel lines may produce slight differences in fit. Fire tape is not included. Fitment is universal and application-specific; confirm line and fitting clearance before installation.

Key Product Specifications & Technical Data

• Brand: DEI
• Part Number: 92474
• Product Type: Thermal protection sleeve
• Inside Diameter: 1 inch
• Roll Length: 25 feet
• Continuous Heat Resistance: Up to 500°F
• Intermittent Heat Resistance: Up to 2,000°F
• Material: Braided glass fiber with iron oxide silicone rubber coating

What's Included

• One DEI Fire Sleeve roll
• Fire tape not included

Features:

• Heat Protection: Withstands up to 500°F of continuous heat and 2,000°F of intermittent heat.
• Abrasion Resistance: Helps protect fuel, brake, oil, transmission, heater, and other lines from heat and abrasion.
• Durable Construction: Uses braided glass material with a 100% iron oxide silicone rubber coating.
• Versatile Installation: Suitable for bundling hoses, insulating electrical wiring, and protecting multiple automotive line applications.
