DEI Fire Sleeve 3/8-Inch Inside Diameter x 25-Foot Spool, Part Number 92470

Fire Sleeve solves the problem of heat and abrasions damaging fuel, transmission and brake lines and is a fireproof solution. Constructed from a high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100% iron oxide silicone rubber, Fire Sleeve thermal insulator sleeve provides the ultimate in heat insulation and protection from direct heat up to 500°F. Insulates wiring, hoses, oil / brakes / transmission lines & more Use for bundling & protecting hoses, electrical wiring, etc. Withstands 2000°F of intermittent heat Size: 0.375 (3/8) inch x 25 feet Fitment Chart AN Conversion Chart AN Size Metal Tube O.D. Thread Size 2 1/8 in. 5/16 24 SAE 3 3/16 in. 3/8 24 SAE 4 1/4 in. 7/16 20 SAE 5 5/16 in. 3/8 18 SAE 6 3/8 in. 9/16 18 SAE 8 1/2 in. 3/4 16 SAE 10 5/8 in. 7/8 14 SAE 12 3/4 in. 1-1/16 12 SAE 16 1 in. 1-5/16 12 SAE 20 1-1/4 in. 1-5/8 12 SAE 24 1-1/2 in. 1-7/8 12 SAE 28 1-3/4 in. 2-1/4 12 SAE 32 2 in. 2-1/2 12 SAE Fire Sleeve Application Chart Part# Name Line Size* 10470 3/8 in. Fire Sleeve 3AN4AN6AN** 10472 5/8 in. Fire Sleeve 6AN8AN 10474 1 in. Fire Sleeve 10AN12AN16AN**5/8 in. Heater Hose3/4 in. Heater Hose *Braided Kevlar line was used in testing. You may notice a slight difference in size if you have Braided Stainless Steel lines. **Tight fit: If you have fittings on your line, you may need to order one size up. You can achieve between 1/16 in. and 1/8 in. stretch out of our material. This may help on installs with fittings already on the lines. One 25 foot roll of Fire Sleeve with a 3/8 inch inside diameter. Fire Sleeve solves the problem of heat and abrasions damaging fuel, transmission and brake lines and is a fireproof solution. Constructed from a high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100% iron oxide silicone rubber, Fire Sleeve thermal insulator sleeve provides the ultimate in heat insulation and protection from direct heat up to 500F. Insulates wiring, hoses, oil / brakes / transmission lines & more Use for bundling & protecting hoses, electrical wiring, etc. Withstands 2000F of intermittent heat Size: 0.375 (3/8) inch x 25 feet Universal

• Withstands 500 Degrees F Continuous/2000 Degrees F Intermittent Heat
• Insulates Wiring/Hoses/Oil/Brake / Transmission Lines And More
• Use For Bundling And Protecting Hoses; Electrical Wiring Etc.
• Burn Protection During Under Hood Repairs And Maintenance
• Use For Bundling And Protecting Hoses
• Fire Tape Not Included
• Electrical Wiring Etc.

DEI Fire Sleeve, part number 92470, provides high-temperature insulation and abrasion protection for fuel, transmission, brake, oil, and other automotive lines. This flexible thermal sleeve is also suitable for electrical wiring, hoses, and line bundling in engine compartments and other heat-exposed areas. The 3/8-inch inside diameter is designed for compatible small-diameter lines and hose assemblies.

Constructed from high-temperature braided glass material and heavily coated with 100% iron oxide silicone rubber, DEI Fire Sleeve helps shield components from direct heat up to 500°F and withstands intermittent heat exposure up to 2,000°F. It can also help reduce burn hazards during under-hood repairs and maintenance. The sleeve is supplied as one continuous 25-foot roll for flexible installation and custom cutting.

This universal Fire Sleeve is compatible with many 3AN, 4AN, and 6AN applications when used with braided Kevlar lines. Fit can vary with braided stainless steel lines, and fittings may require selecting the next larger size. Fire Tape is not included. This product is intended for thermal protection and is not a replacement for properly rated fuel, brake, transmission, or electrical components.

Key Product Specifications and Technical Data

• Brand: DEI
• Part Number: 92470
• Product Type: Thermal protection sleeve
• Inside Diameter: 3/8 inch
• Roll Length: 25 feet
• Continuous Heat Resistance: Up to 500°F
• Intermittent Heat Resistance: Up to 2,000°F

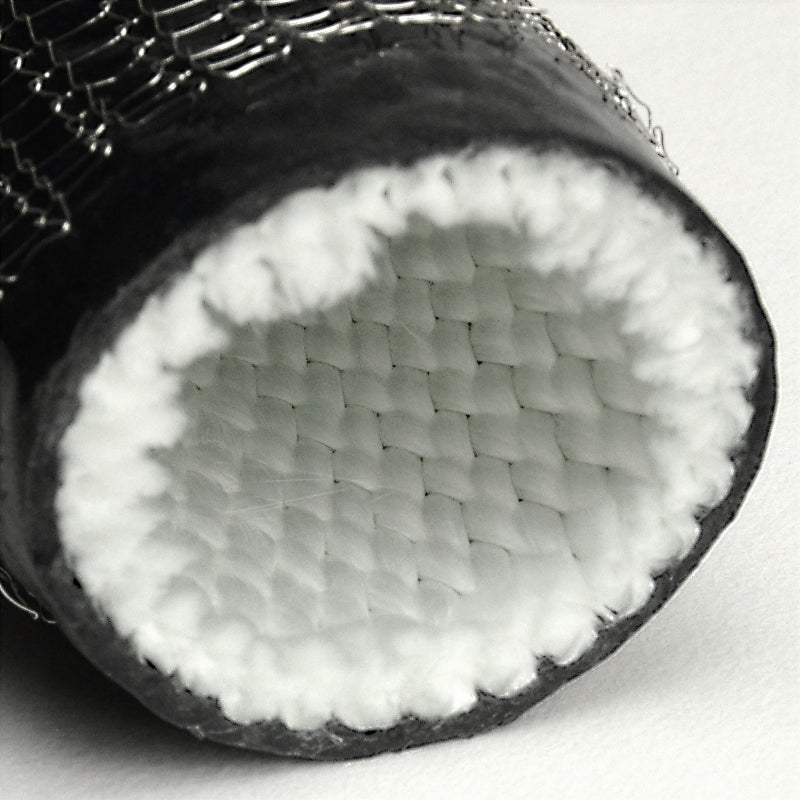

• Material: Braided glass with iron oxide silicone rubber coating

What's Included

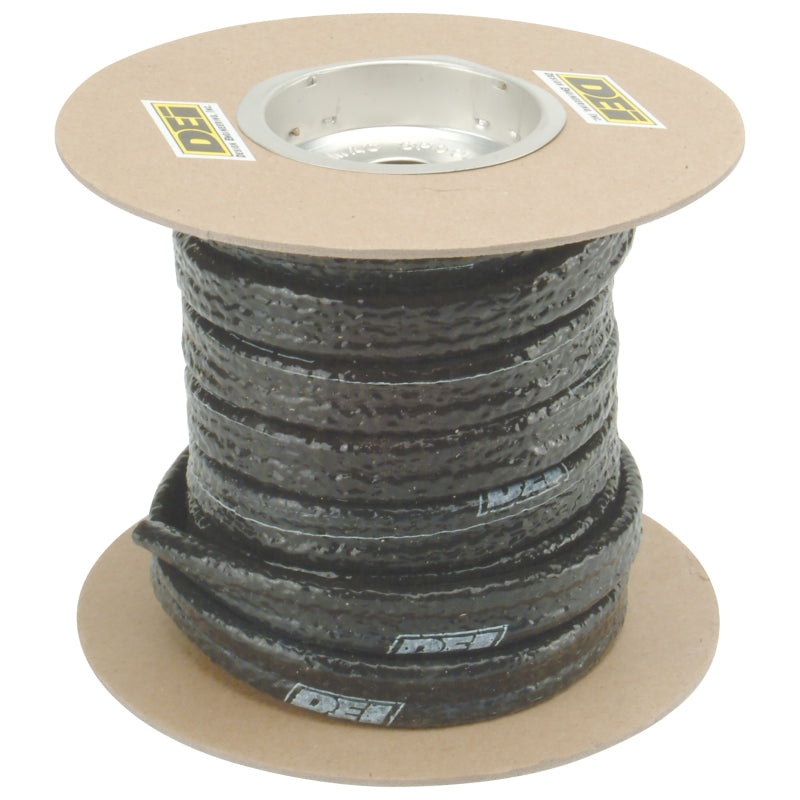

• One 25-foot roll of DEI Fire Sleeve
• Fire Tape not included

Features:

• High-Temperature Protection: Withstands direct continuous heat exposure up to 500°F and intermittent heat up to 2,000°F.
• Abrasion and Heat Shielding: Helps protect fuel, brake, transmission, oil, and other lines from engine-compartment heat and abrasion.
• Durable Construction: Braided glass material with a 100% iron oxide silicone rubber coating provides flexible, reliable thermal insulation.
• Versatile Installation: A 25-foot roll can be cut for use around compatible hoses, wiring, and small-diameter line assemblies.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
