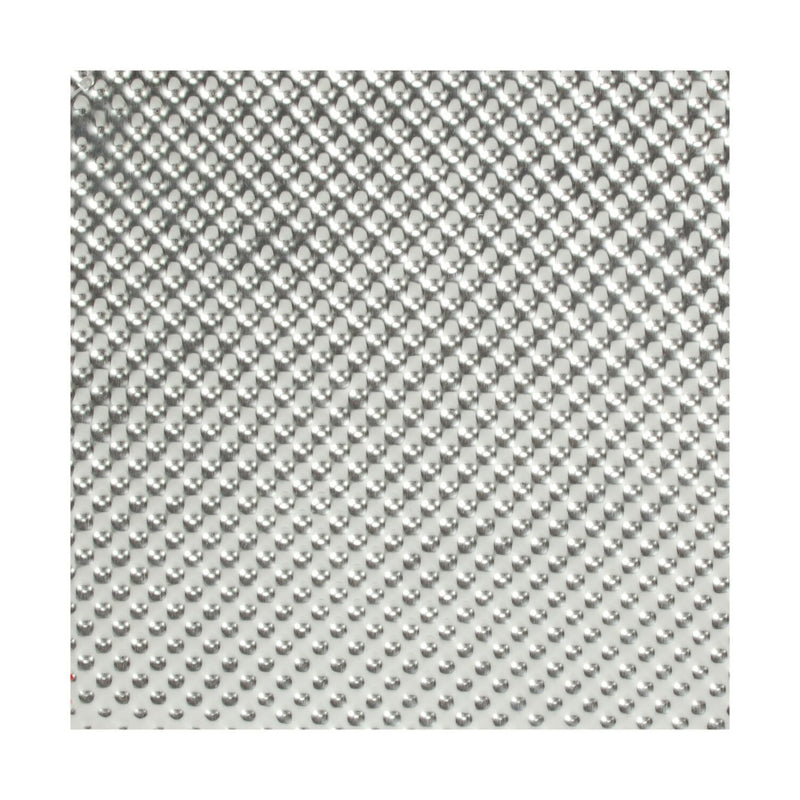

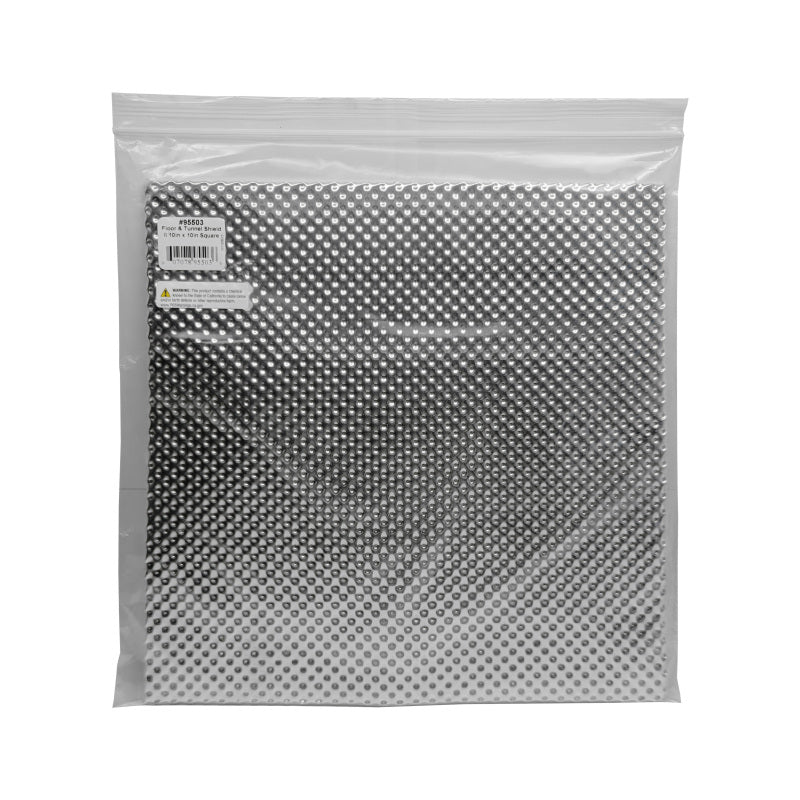

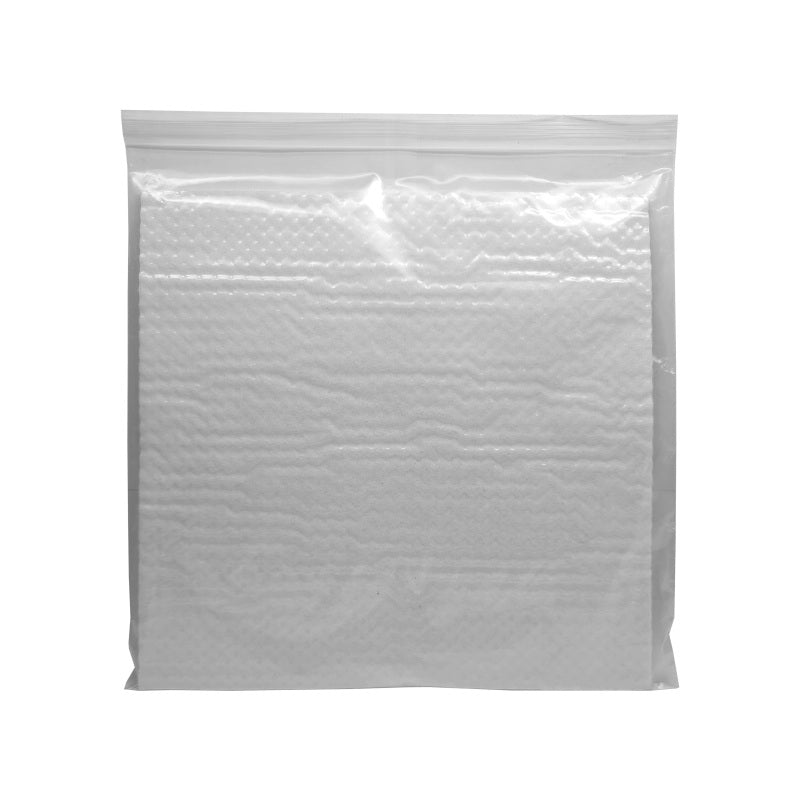

DEI Floor & Tunnel Shield II Heat Barrier, Part Number DEI95503

Floor & Tunnel Shield II(TM) solves the problem of needing a high heat barrier to block heat from any source intruding into interiors and damaging components and electronics. Use as a barrier to reflect and insulate from any heat source. Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic, Floor annd Tunnel Shield II limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. Floor & Tunnel Shield II provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well. Constructed with an embossed 10 mil aluminum face bonded to 1/8 in. composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, Floor and Tunnel Shield II withstands up to 1750F. The adhesive side holds past 450F. Its improved multifaceted modern aluminum surface offers improved reflection and rigidity and allows for ease of installation - aluminum side must face the heat source. At only 3/16 in. thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas. With a unique and patented finely woven glass-fiber backing, Floor and Tunnel Shield II is the easiest, most cost effective way to control thermal transfer while protecting expensive components and vehicle occupants from extreme heat situations and sound. Floor and Tunnel Shield II can be used on any number of surfaces including, metal, aluminum, carbon fiber, plastic, and more. 10 mil dimpled aluminum face Protection for engine compartments Protection for painted body parts Comfortable interior at any temperature Hi-temp adhesive for a do-it-once install Extreme heat barrier - aluminum side should face the heat Only 3/16 in. thick Use as barrier to reflect and insulate from any heat source Great for exterior applications DO NOT apply directly to exhaust components. Floor And Tunnel Shield II™; 10 in. x 10 in.; .83 sq. ft.; Floor & Tunnel Shield II(TM) solves the problem of needing a high heat barrier to block heat from any source intruding into interiors and damaging components and electronics. Use as a barrier to reflect and insulate from any heat source. Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic, Floor annd Tunnel Shield II limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. Floor & Tunnel Shield II provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well. Constructed with an embossed 10 mil aluminum face bonded to 1/8 in. composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, Floor and Tunnel Shield II withstands up to 1750F. The adhesive side holds past 450F. Its improved multifaceted modern aluminum surface offers improved reflection and rigidity and allows for ease of installation - aluminum side must face the heat source. At only 3/16 in. thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas. With a unique and patented finely woven glass-fiber backing, Floor and Tunnel Shield II is the easiest, most cost effective way to control thermal transfer while protecting expensive components and vehicle occupants from extreme heat situations and sound. Floor and Tunnel Shield II can be used on any number of surfaces including, metal, aluminum, carbon fiber, plastic, and more. 10 mil dimpled aluminum face Protection for engine compartments Protection for painted body parts Comfortable interior at any temperature Hi-temp adhesive for a do-it-once install Extreme heat barrier - aluminum side should face the heat Only 3/16 in. thick Use as barrier to reflect and insulate from any heat source Great for exterior applications DO NOT apply directly to exhaust components. Universal

• Ideal For Firewalls/Under Vehicle/Floor Pans/Oil Tank Box/etc.
• Serves As A Barrier To Unwanted Road/Tire And Engine Noise
• Aggressive Self-Adhesive Backing Holds Past 450 Degrees F
• Withstands Direct High Temperatures Up To 1750Degrees
• Blocks Radiant Heat From Entering Driver Compartment
• Adheres To Almost Any Surface/Material/Fiberglass
• Minimum Clearance Required Only 3/16 in. Thick
• Easy To Form To Shapes And Contours
• Constructed From 10 Mil Aluminum
• Peel and stick adhesive backing
• 10 in x 10 in / 0.83 sq ft
• Just Trim Peel And Stick

DEI Floor & Tunnel Shield II is a lightweight, self-adhesive thermal barrier designed to block radiant heat from entering vehicle interiors and damaging sensitive components. Part Number DEI95503 is well suited for firewalls, transmission tunnels, floor pans, fuel cell areas, oil tank boxes, engine compartments, and other locations where high temperatures are a concern. The reflective aluminum face must be installed toward the heat source and should not be applied directly to exhaust components.

Constructed with an embossed 10 mil aluminum face, a composite glass-fiber core, and high-temperature pressure-sensitive adhesive backing, this barrier withstands direct temperatures up to 1,750 degrees F. The adhesive remains secure beyond 450 degrees F when properly installed on a clean, suitable surface. Its thin, flexible construction can be formed and trimmed around contours, making it practical for tight-clearance applications while also helping reduce unwanted road, tire, and engine noise.

Floor & Tunnel Shield II adheres to many materials, including metal, aluminum, carbon fiber, plastic, fiberglass, and painted surfaces. The rigid, multifaceted aluminum surface improves heat reflection and installation control, while the glass-fiber construction provides additional protection against road and track debris. This universal automotive heat shield is supplied as a 10-inch by 10-inch section covering approximately 0.83 square feet. Apply by trimming to shape, peeling the backing, and firmly bonding the shield to the prepared surface.

Fitment: Universal automotive application. Recommended for custom installation on compatible surfaces in firewalls, floors, tunnels, underbody areas, and engine compartments. Verify available clearance and surface compatibility before installation.

Safety: Do not apply directly to exhaust components. Install with the aluminum face toward the heat source and follow appropriate preparation and installation procedures.

Features:

• Extreme Heat Protection: Withstands direct radiant temperatures up to 1,750 degrees F to help protect occupants, electronics, painted body panels, and vehicle components.
• High-Temperature Adhesive: Aggressive pressure-sensitive backing remains secure beyond 450 degrees F for a durable peel-and-stick installation.
• Reflective Aluminum Construction: Embossed 10 mil aluminum face reflects radiant heat and adds rigidity while providing a durable protective outer surface.
• Flexible Noise and Debris Barrier: Thin composite glass-fiber construction forms around contours, helps reduce road and engine noise, and provides added protection from road and track debris.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
