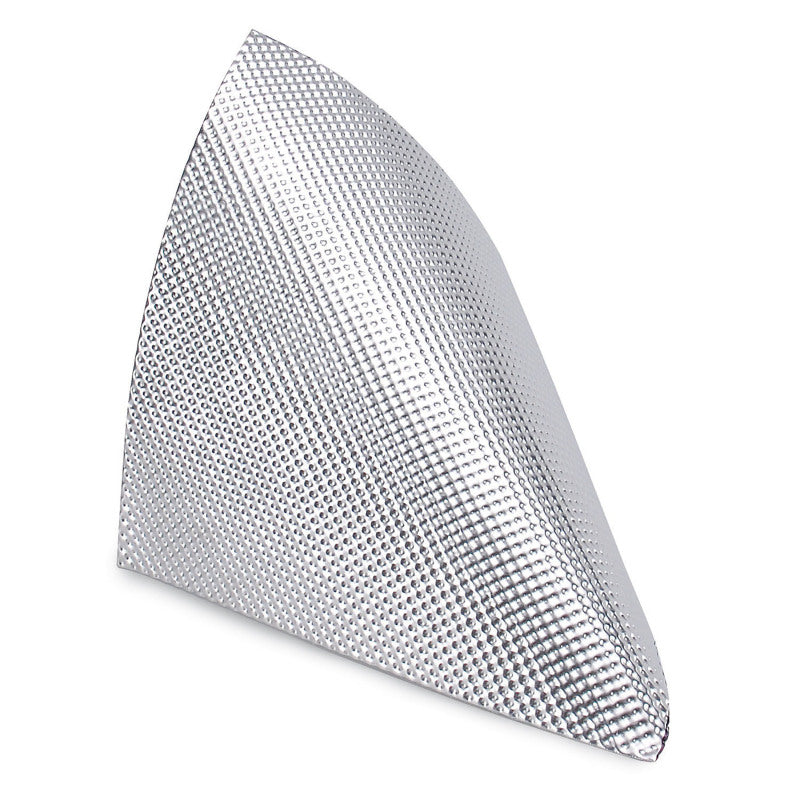

DEI Floor & Tunnel Shield II Non-Adhesive Heat Barrier, Part 50520

Floor & Tunnel Shield II(TM) solves the problem of needing a high heat barrier to block heat from any source intruding into interiors and damaging components and electronics. Use as a barrier to reflect and insulate from any heat source. Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic, Floor & Tunnel Shield II limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. Floor & Tunnel Shield II provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well. Constructed with an embossed 10 mil aluminum face bonded to 1/8 in. composite glass-fiber core, Floor & Tunnel Shield II withstands up to 1750°F. Its improved multifaceted modern aluminum surface offers improved reflection and rigidity and allows for ease of installation - aluminum side must face the heat source. At only 3/16 in. thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas. With a unique and patented finely woven glass-fiber backing, Floor & Tunnel Shield II is the easiest, most cost effective way to control thermal transfer while protecting expensive components and vehicle occupants from extreme heat situations and sound. Floor & Tunnel Shield II can be used on any number of surfaces including, metal, aluminum, carbon fiber, plastic, and more. This version of Floor and Tunnel II does not include the adhesive backing the Original Floor and Tunnel Shield II has. 10 mil dimpled aluminum face Protection for engine compartments Protection for painted body parts Comfortable interior at any temperature Extreme heat barrier - aluminum side should face the heat Only 3/16 in. thick Use as barrier to reflect and insulate from any heat source No adhesive backing *DO NOT apply directly to exhaust components. Floor And Tunnel Shield II™; 42 in. x 48 in.; 14 sq. ft.; Non PSA; w/o Adhesive;

• Adhesive-free back, requires mechanical fasteners (not-included)
• Withstands Direct High Heat Temperatures Up To 1750 Degrees
• Bonded To High Temperature Resistant Glass Fiber
• Minimum Clearance Required/Only 3/16 in. Thick
• Easy To Form To Shapes And Contours
• Constructed From 10 Mil Aluminum

DEI Floor & Tunnel Shield II Non-Adhesive Heat Barrier, Part 50520, provides lightweight thermal protection for automotive interiors, engine compartments, transmission tunnels, floorboards, firewalls, fuel cells, and other areas exposed to excessive heat. The embossed aluminum face reflects radiant heat while the composite glass-fiber core helps insulate against heat transfer. Install the aluminum side toward the heat source for proper performance.

Designed for areas with limited clearance, this flexible heat shield is only 3/16 inch thick and can be formed or trimmed to follow custom shapes and contours. It also helps protect painted body panels, vehicle occupants, electronics, and other sensitive components from extreme temperatures, road debris, and unwanted sound. DEI Floor & Tunnel Shield II can be used on metal, aluminum, carbon fiber, plastic, and other suitable surfaces.

This non-adhesive version does not include a pressure-sensitive adhesive backing. Mechanical fasteners are required for installation and are not included. The shield withstands direct high heat temperatures up to 1,750°F and is intended to be used as a barrier between heat sources and protected components. Do not apply directly to exhaust components. The package includes one Floor & Tunnel Shield II panel covering approximately 14 square feet. Vehicle-specific fitment data was not provided; the material is designed for custom automotive applications.

Key Product Specifications & Technical Data

• Product type: Automotive thermal and sound barrier
• Brand: DEI
• Part number: 50520
• Product series: Floor & Tunnel Shield II
• Construction: Embossed aluminum face with composite glass-fiber core
• Aluminum thickness: 10 mil
• Overall thickness: 3/16 inch
• Heat resistance: Up to 1,750°F

What's Included

• One DEI Floor & Tunnel Shield II non-adhesive heat barrier panel
• Mechanical fasteners and installation hardware are not included

Features:

• High-temperature protection: Withstands direct heat exposure up to 1,750°F when installed with the aluminum face toward the heat source.
• Reflective aluminum surface: The embossed 10 mil aluminum face reflects radiant heat and provides added rigidity for shaping and installation.
• Lightweight, low-clearance design: The 3/16-inch-thick construction fits areas where space is limited and can be formed or trimmed for a custom fit.
• Versatile barrier construction: The glass-fiber core helps provide thermal insulation, sound deadening, and protection from road debris across metal, aluminum, carbon fiber, plastic, and other suitable surfaces.

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
