Dinan F90/F91/F92/F93 Turbo Inlet Pipes for BMW M5 and M8 by Dinan - Part D760-0053

From the factory, the plastic inlets are limited and allow very little volume to pass as they neck down dramatically to the turbochargers themselves. This reduction stifles flow and increases the pressure ratio pre-turbine causing the turbochargers to work harder than necessary. This is a problem Dinan engineers took great care in rectifying through exhaustive prototyping and testing to ensure maximum future power potential while also having compatibility with numerous potential configurations. The benefit of their hard work are Dinan Turbo Inlets that are constructed of gloss UV coated 2x2 carbon fiber and are designed to mate seamlessly with whatever level of modification to the intake system you anticipate (paired with either stock air boxes or the full Dinan Cold Air Intake System). Where the carbon fiber ends an aluminum adapter to connect to the stock turbocharger begins. Using the same factory locking system, installation in this area is straightforward and earmarked by a "click" when secure. The simplicity making this quite possibly the quickest and least aggravating installs on the platform you will encounter. The pipe itself has been created to offer the largest possible cross-sectional area all the way from the intake filter to the turbo, a staggering 200% increase in volume over stock. This is the key to maximum performance gains from the system and the reason for the organic and unorthodox shape of the Dinan inlet system. While the effects of the additional volume are pronounced on a vehicle equipped with the factory airboxes and results in average gains of +11 WHP / +13 WTQ from 2000 RPM to redline, the overall efficiency of the entire intake system is maximized when paired with the Dinan Cold Air Intake that is also delivering an increased volume of cooler air earlier in the intake tract. Carbon Fiber - F90/F91/F92/F93

• More Power: Max gains of 22 WHP and 18 lb-ft of torque @ 6500 RPM on an otherwise stock vehicle. Average gains of 11 WHP and 13 WTQ from 2000 RPM to redline.
• Compatible with both the OEM and Dinan intake systems. Compatibility with other intakes not guaranteed.
• More volume (~200% more than stock, 105 cubic inches vs. 35 cubic inches per side).
• Larger internal diameter throughout (maximum cross-sectional area allowed).

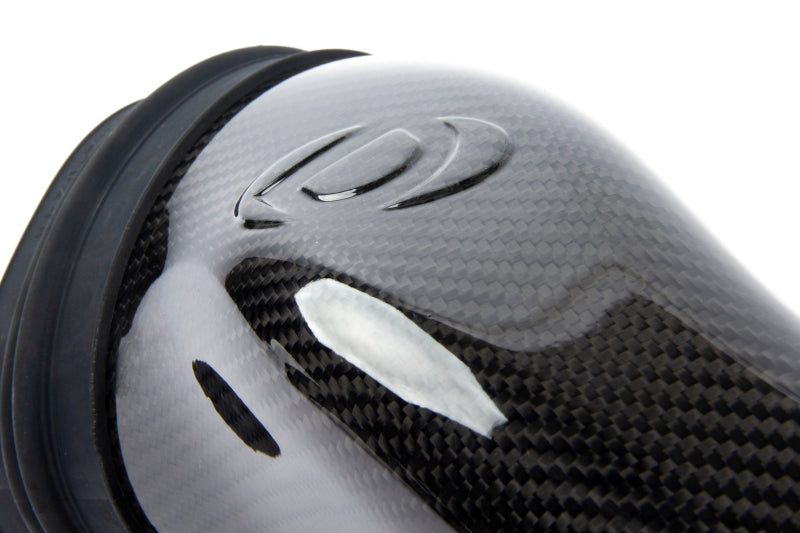

• Carbon fiber construction for heat insulation and visual appeal.
• Quick and easy bolt-on installation.
• Outflows the factory inlets.

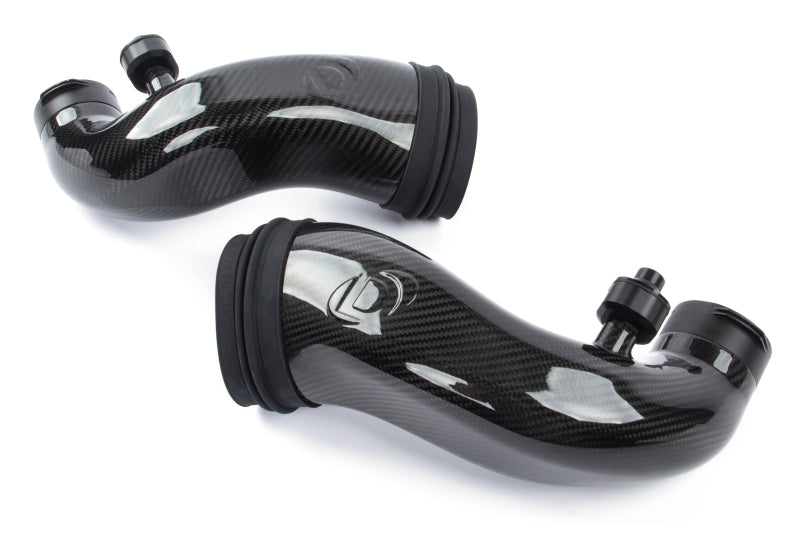

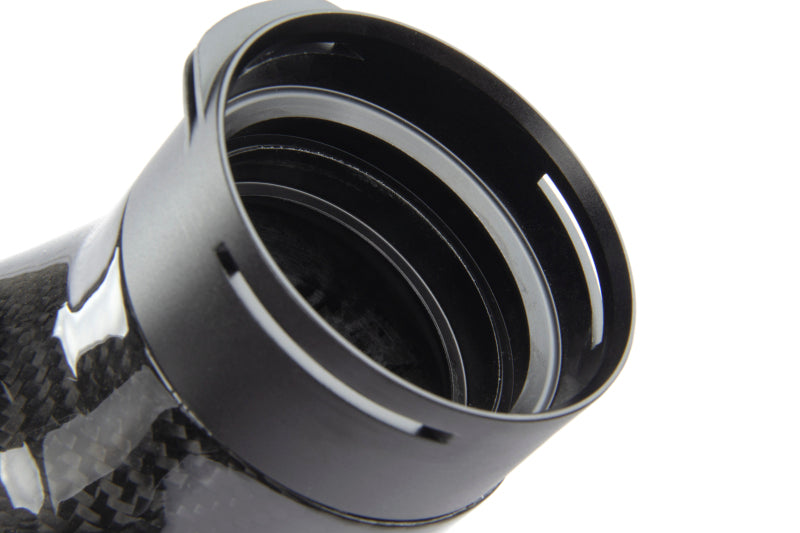

Enhance your BMW's performance with the Dinan F90/F91/F92/F93 Turbo Inlet Pipes, designed specifically for models including the BMW M5 and M8 from 2018 to 2021. Engineered with precision, these inlet pipes are constructed from high-quality gloss UV-coated 2x2 carbon fiber, offering both durability and an appealing aesthetic. The design features an aluminum adapter that seamlessly connects to the stock turbochargers, utilizing the factory locking system for quick and secure installation, marked by a satisfying "click". This straightforward bolt-on process makes upgrading effortless, reducing installation time and complexity. The key benefit of these inlet pipes lies in their significantly increased internal diameter, providing approximately 200% more volume than stock—105 cubic inches per side compared to the original 35 cubic inches—resulting in enhanced airflow from the intake filter directly to the turbochargers. This improvement allows the engine to breathe more freely, which translates to noticeable power gains. Typical results include an increase of up to 11 wheel horsepower (WHP) and 13 wheel torque (WTQ) from 2000 RPM to redline, with peak gains reaching 22 WHP and 18 lb-ft of torque at 6500 RPM on a stock vehicle. These inlet pipes are compatible with both OEM and Dinan intake systems, offering flexibility for various upgrade paths, although compatibility with other aftermarket intakes is not guaranteed. The carbon fiber construction not only provides heat insulation, helping to keep intake temperatures lower, but also adds a sleek visual element to your engine bay. Designed for models such as the 2018-2021 BMW M5 and M8 series, these pipes deliver maximum airflow and efficiency, especially when paired with a Dinan Cold Air Intake, which further enhances airflow volume and cooler air intake. Whether you seek increased power, improved throttle response, or a high-performance upgrade, these turbo inlet pipes are a reliable choice for enthusiasts aiming to maximize their vehicle’s potential.

Features:

• More Power: Max gains of 22 WHP and 18 lb-ft of torque at 6500 RPM on a stock vehicle. Average gains of 11 WHP and 13 WTQ from 2000 RPM to redline.

• Compatible with both OEM and Dinan intake systems, offering flexibility for various upgrade configurations.

• Significantly increased volume: approximately 200% more than stock, with 105 cubic inches per side.

• Larger internal diameter throughout for maximum airflow efficiency.

• Carbon fiber construction provides heat insulation and a premium appearance.

• Quick and easy bolt-on installation with factory locking system for secure fit.

• Outperforms factory inlets, enhancing overall intake system performance.

Fitments:
2018 BMW M5 Base
2019 BMW M5 Base
2019 BMW M5 Competition
2020 BMW M5 Base
2020 BMW M5 Competition
2020 BMW M8 Base
2020 BMW M8 Competition
2020 BMW M8 Gran Coupe Base
2020 BMW M8 Gran Coupe Competition
2021 BMW M5 Base
2021 BMW M5 Competition
2021 BMW M8 Gran Coupe Base
2021 BMW M8 Gran Coupe Competition
2022 BMW M5 Base
2022 BMW M5 CS
2022 BMW M8 Competition
2022 BMW M8 Gran Coupe Competition
2023 BMW M5 Base
2023 BMW M8 Competition
2023 BMW M8 Gran Coupe Competition
2024 BMW M8 Competition
2024 BMW M8 Gran Coupe Competition
2025 BMW M8 Competition
2025 BMW M8 Gran Coupe Competition

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
