Diode Dynamics SS10 Max Yellow Driving Stealth LED Light Bar Kit for 2024-2025 Toyota Tacoma - Part DD8839

Features Patented TIR Optics for maximum efficiency and output. Upgraded beam patterns engineered for real-world performance. True amber backlight provides unique accent lighting. Durable aluminum housing with ASTM-standard powdercoat finish. Built for the extreme with IP69K waterproof rating. Limited Lifetime Warranty. Made in USA with Global Materials. Overview The Stealth LED Light Bar Kit compatible with Toyota Tacoma 2024+ adds powerful auxiliary lighting with a clean, OEM-style appearance. These application-specific brackets have been CAD-designed to mount two 10-inch LED Light Bars behind the grille using factory mounting points. No cutting or drilling required! With higher light output, modern optics, and greater intensity than anything else on the market, the new Stage Series Lightbars are the most capable lightbars available today! Designed for Performance. Each Stage Series Light Bar has been engineered from the ground to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light. Amber Backlight. All Stage Series LED Light Bars include an integrated amber backlight that fully illuminates the TIR optic, providing distinctive accent lighting and enhanced visibility when parked or stopped on the trail. The Sport model offers the best bang for your buck, while the Pro model takes things a step further with a noticeable boost in power. The Max model is designed with cutting-edge automotive emitters for both high power and extreme intensity. The all-new Stage Series Lightbars are here! Rebuilt with modern optics SmartSelect control new backlight options and unmatched durability. Get more power configurability and performance than ever before. One (1) Stealth Light Bar Bracket Kit

• Durable aluminum housing with ASTM-standard powdercoat finish.
• Upgraded beam patterns engineered for real-world performance.
• Patented TIR Optics for maximum efficiency and output.
• True amber backlight provides unique accent lighting.
• Built for the extreme with IP69K waterproof rating.
• Made in USA with Global Materials.
• Limited Lifetime Warranty.

The Diode Dynamics SS10 Max Yellow Driving Stealth LED Light Bar Kit is designed specifically for the 2024-2025 Toyota Tacoma, delivering powerful auxiliary lighting with a clean, OEM-style appearance. This application-specific system uses CAD-designed brackets to mount two 10-inch Stage Series LED light bars behind the factory grille mounting points. Installation requires no cutting or drilling, helping preserve the vehicle’s original structure and appearance.

Each Stage Series light bar uses patented TIR optics to capture and focus light efficiently, producing a controlled beam with high intensity and reduced wasted output. The Max model uses advanced automotive emitters for exceptional power and long-range visibility, while the yellow driving beam improves contrast in dust, rain, and other challenging conditions. An integrated true amber backlight illuminates the optic for distinctive accent lighting and added visibility when the vehicle is parked or stopped.

Built for demanding off-road and automotive environments, the light bars feature durable aluminum housings with an ASTM-standard powdercoat finish and an IP69K waterproof rating. The kit is made in the USA with global materials and is supported by a limited lifetime warranty. Fitment includes 2024 and 2025 Toyota Tacoma applications. Professional installation or verification of vehicle-specific compatibility is recommended before installation.

Key Product Specifications & Technical Data

• Brand: Diode Dynamics
• Part Number: DD8839
• Product Type: Stealth LED Light Bar Kit
• Light Bar Series: Stage Series SS10 Max
• Beam Pattern: Yellow driving beam
• Lighting Features: Integrated true amber backlight
• Optical Technology: Patented TIR optics
• Environmental Protection: IP69K waterproof rating

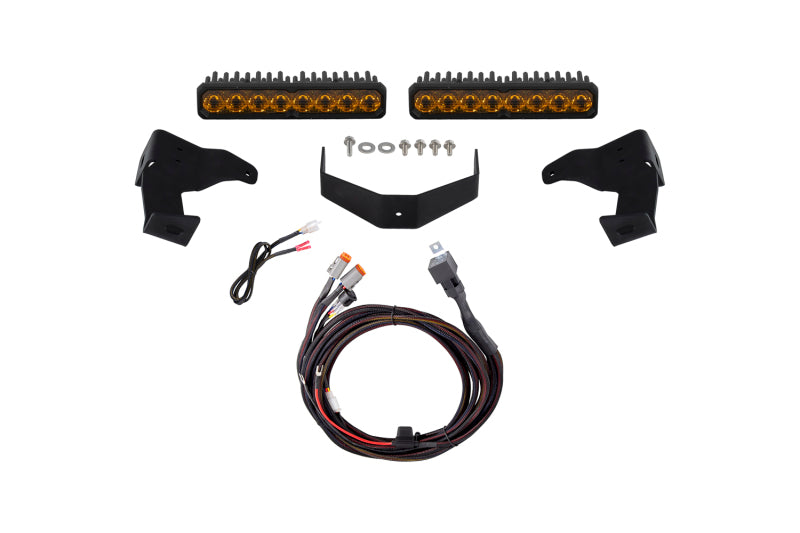

What's Included

• Two Stage Series SS10 Max LED light bars
• One application-specific Stealth light bar bracket kit
• Installation hardware

Features:

• Patented TIR Optics: Focuses light efficiently for improved intensity, controlled output, and reduced glare.
• Yellow Driving Beam: Provides powerful forward illumination and improved contrast in dust, rain, and other demanding conditions.
• True Amber Backlight: Creates distinctive accent lighting and improves vehicle visibility when parked or stopped.
• OEM-Style Tacoma Fitment: CAD-designed brackets mount two SS10 light bars behind the grille using factory mounting points with no cutting or drilling required.

Fitments:
2024 Toyota Tacoma Limited
2024 Toyota Tacoma SR
2024 Toyota Tacoma SR5
2024 Toyota Tacoma Trailhunter
2024 Toyota Tacoma TRD Off-Road
2024 Toyota Tacoma TRD PreRunner
2024 Toyota Tacoma TRD Pro
2024 Toyota Tacoma TRD Sport
2025 Toyota Tacoma Limited
2025 Toyota Tacoma SR
2025 Toyota Tacoma SR5
2025 Toyota Tacoma Trailhunter
2025 Toyota Tacoma TRD Off-Road
2025 Toyota Tacoma TRD PreRunner
2025 Toyota Tacoma TRD Pro
2025 Toyota Tacoma TRD Sport
2026 Toyota Tacoma Limited
2026 Toyota Tacoma SR
2026 Toyota Tacoma SR5
2026 Toyota Tacoma Trailhunter
2026 Toyota Tacoma TRD Off-Road
2026 Toyota Tacoma TRD PreRunner
2026 Toyota Tacoma TRD Pro
2026 Toyota Tacoma TRD Sport

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
