Diode Dynamics SS5 Pro Universal CrossLink 4-Pod Lightbar, White Driving – DD7252

Features Four-pod 25-inch linked lightbar Engineered TIR (total internal reflection) optics Selectable backlight color, with eight color options Torture-tested, heavy-duty construction Ultra-high intensity: shines almost a mile away Assembled in USA Overview Using our patent-pending CrossLink technology, this kit links four SS5 LED pods together into a single lightbar. Featuring the highest output intensity of any 5-inch LED pod on the market, the LED pods included in this kit have been designed for maximum functionality, with custom-engineered TIR optics, all in a durable package. Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS5 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Selectable Backlight. The Stage Series 5inch LED Pods included in this kit feature a selectable backlight with eight different color options. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color. Simple connections. All SS5 LED pods feature a custom-molded DT type Deutsch-style connector. DT splitters are included in the kit to connect the pods together, along with a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or use a Diode Dynamics wire harness. Using our patent-pending CrossLink technology this kit links four SS5 LED pods together into a single lightbar. Featuring the highest output intensity of any 5-inch LED pod on the market. Included in the box: Four (4) Stage Series 5inch LED Pods Three (3) CrossLinks with hardware One (1) CrossLink endmount kit One (1) DT 4-Pod connecting harness One (1) Deutsch-style wire pigtail

• Advanced TIR optics provide high efficiency and focus
• Durable powdercoated aluminum construction
• High-intensity automotive-type LEDs
• Integrated Deutsch-style connector
• Pin-fin heatsink design

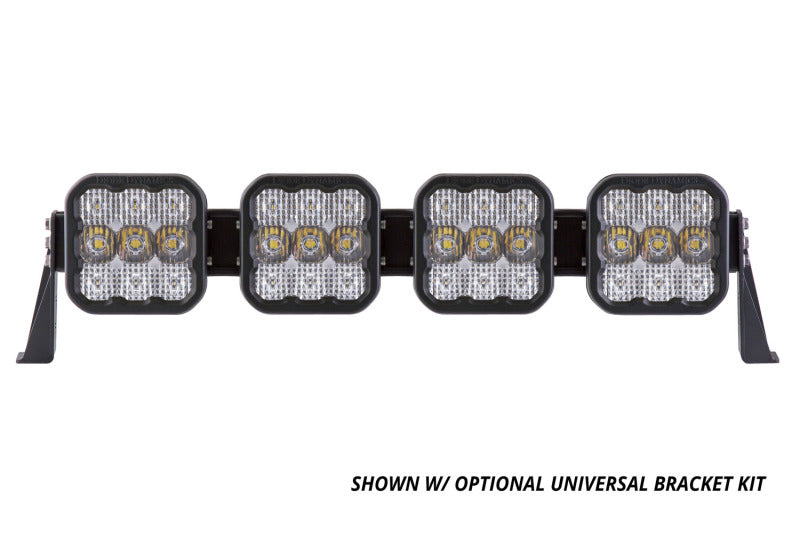

The Diode Dynamics SS5 Pro Universal CrossLink 4-Pod Lightbar combines four high-output Stage Series SS5 LED pods into a single, streamlined lighting system. Part number DD7252 is configured with a white driving beam for focused forward illumination and is designed for universal automotive applications. Using patent-pending CrossLink technology, the included pods connect together as one durable lightbar while maintaining the high-intensity performance expected from Diode Dynamics lighting products.

Each SS5 pod uses custom-engineered TIR (total internal reflection) optics to collect and direct LED output toward the intended area, reducing wasted light and glare compared with conventional reflector designs. The heavy-duty, powder-coated aluminum housing features a pin-fin heatsink design, automotive-type LEDs, and an integrated Deutsch-style connector for dependable operation in demanding conditions. The system is assembled in the USA and engineered for maximum efficiency, durability, and long-distance visibility.

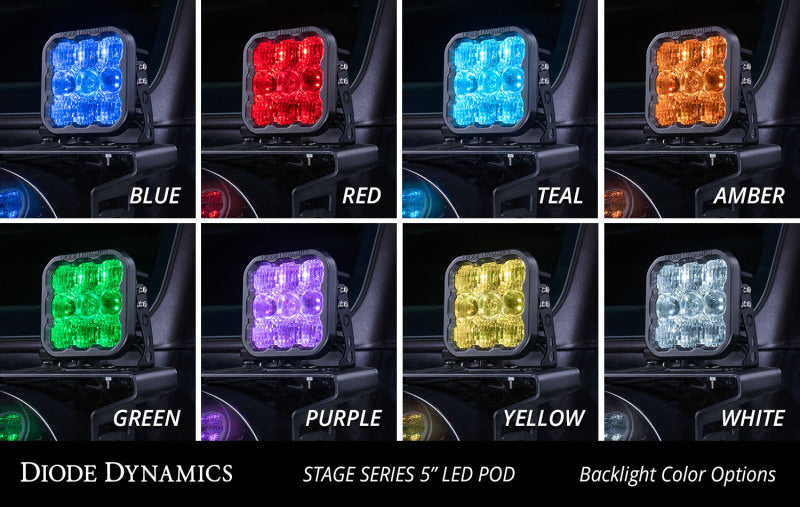

The SS5 pods also include a selectable backlight with eight color options, allowing you to personalize the lightbar without a separate controller. Backlight selection is performed by alternating power on and off, while the illuminated TIR optic adds distinctive accent lighting. Connections are simplified with CrossLink hardware, DT splitters, a four-pod connecting harness, and a Deutsch-style pigtail with bare leads. The kit can be wired directly, paired with an off-the-shelf Deutsch DT harness, or integrated with a compatible Diode Dynamics wire harness.

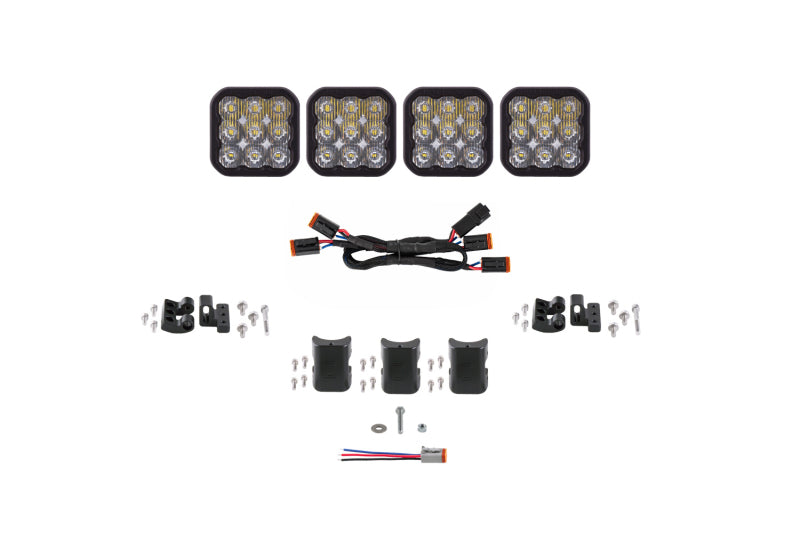

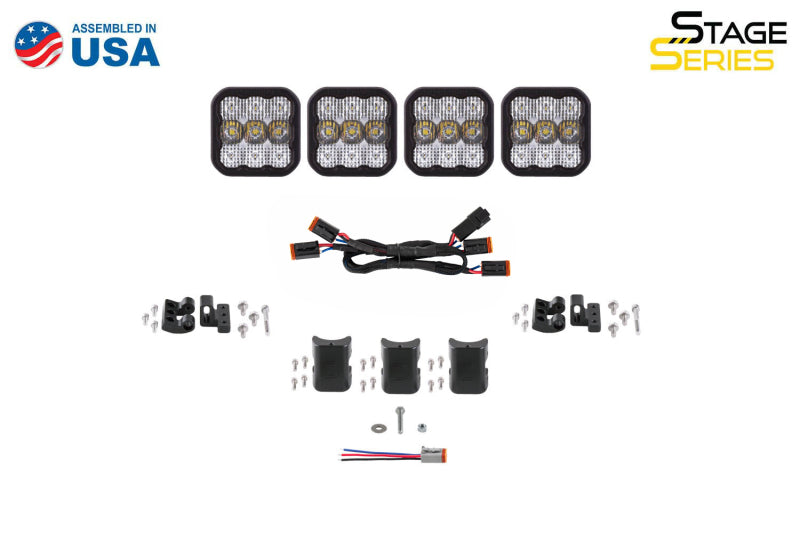

What’s Included: Four Stage Series SS5 LED pods, three CrossLinks with hardware, one CrossLink endmount kit, one DT four-pod connecting harness, and one Deutsch-style wire pigtail.

Fitment: Universal automotive fitment. Professional installation is recommended to ensure proper mounting, wiring, and aiming.

Features:

• Focused TIR Optics: Custom-engineered total internal reflection optics direct light efficiently toward the target while reducing glare and wasted output.

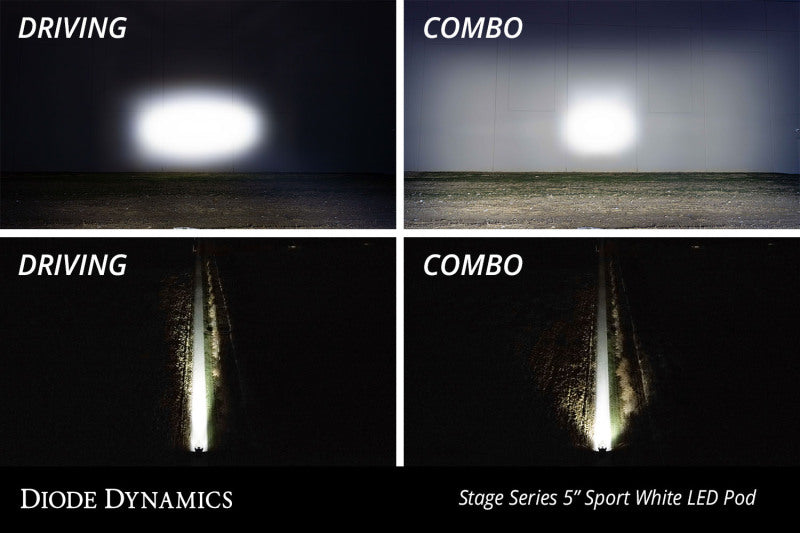

• High-Intensity White Driving Beam: Four SS5 LED pods provide powerful forward illumination for improved visibility during off-road, utility, and automotive applications.
• Selectable Backlight: Choose from eight backlight colors by alternating power on and off, with no separate controller or complicated programming required.
• Heavy-Duty CrossLink Construction: Powder-coated aluminum housings, pin-fin heatsinks, integrated Deutsch-style connectors, and CrossLink mounting hardware deliver durable performance in demanding environments.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: false
Units Per Sku: 1
