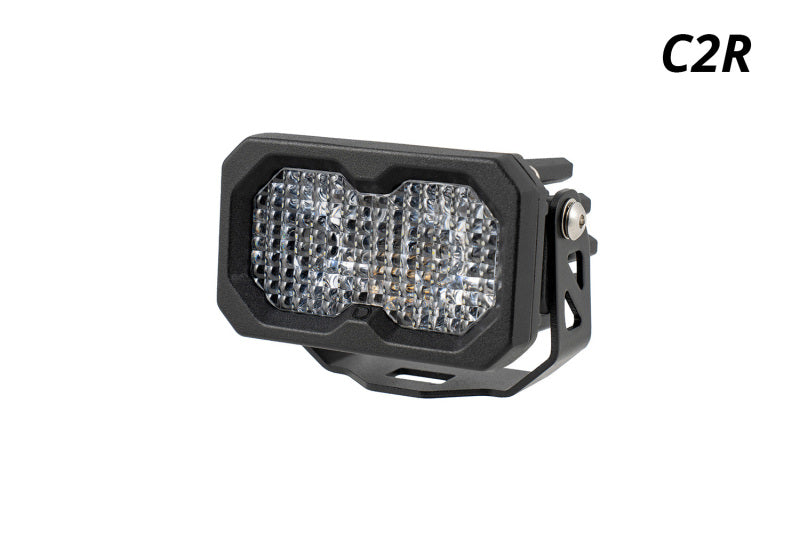

Diode Dynamics Stage Series C2R White Flood Standard LED Pod, Part Number DD8450S

OverviewIntroducing the Stage Series C2R LED Pod! Building on the versatility of the original C1R the C2R features upgraded performance in a compact dual-LED package. It delivers triple-function output with a high-power white main beam a high-power red output and a low-power red accent light ideal for reverse lighting 4th brake light applications or rear accent lighting.Triple Function. The Stage Series C2R LED pod features a cool white main beam along with a high-power red main beam and low-power red accent light that can be activated independently. The C2R was designed to serve as a high-power reverse light along with your factory reverse lights a 4th brake light when your brakes are applied and a secondary running light with your taillights.Functional Output. All Stage Series beam pattern options were designed with optical simulation modeling to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are there is a Stage Series optic for you!Simple connections. All C2R LED pods feature a custom-molded DT-type Deutsch-style connector on the back and come with a 4-pin 6-inch pigtail with bare leads. The yellow wire on the pigtail powers high-power red the red wire powers the white main beam the blue wire powers low-power red and the black wire is ground.Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They've also been put to the test on-road by racers and enthusiasts alike. Featuring custom-engineered TIR optics combined with high-power LED chips these pods have been designed to provide three different lighting functions in a compact versatile package. Included in the box: One (1) Stage Series C2R LED Pod One (1) Deutsch-style wire pigtail One (1) Mounting bracket and hardware

• Modern TIR optics for the highest intensity on the market
• Designed torture tested and assembled in USA
• Durable powdercoated aluminum construction
• Integrated Deutsch-style connector
• Pin-fin heatsink design

Brief Description: The Diode Dynamics Stage Series C2R LED Pod is a compact, dual-LED lighting solution with independently controlled white and red output functions. The white high-power main beam provides auxiliary reverse lighting, while the high-power red beam supports 4th brake light applications and the low-power red accent functions as a secondary running light. This single pod includes the White Flood Standard optic for broad, functional illumination.

Key Features & Performance Benefits: The C2R combines custom-engineered TIR optics with high-power LEDs to deliver dependable output in a versatile package. Its integrated Deutsch-style connector and included 4-pin pigtail simplify wiring, while the powder-coated aluminum housing and pin-fin heatsink support long-term durability. The pod has been tested for vibration, moisture intrusion, corrosion, and operation from -40 to 185 degrees F in accordance with SAE testing standards. Designed, torture tested, and assembled in the USA, the Diode Dynamics Stage Series C2R is suitable for demanding automotive and off-road lighting applications.

Key Product Specifications & Technical Data:
Feature: White Flood Standard optic for broad auxiliary illumination

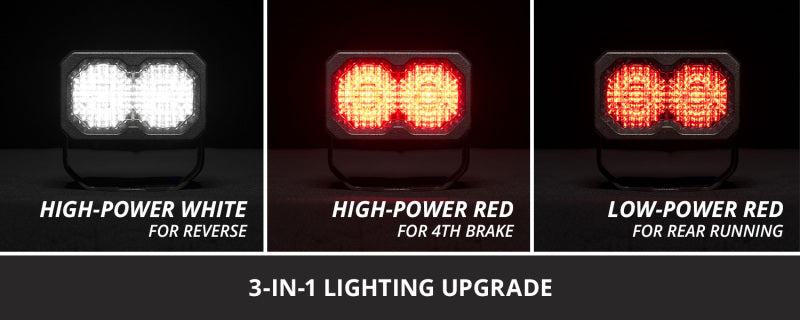

Feature: Triple-function output with white, high-power red, and low-power red lighting
Feature: Independently controlled lighting functions for reverse, brake, and running-light use
Feature: Custom-engineered TIR optics for concentrated, functional beam performance
Feature: Durable powder-coated aluminum construction
Feature: Integrated Deutsch-style connector with included 4-pin pigtail
Feature: Pin-fin heatsink design for effective thermal management
Feature: SAE-tested resistance to vibration, moisture intrusion, corrosion, and extreme operating temperatures

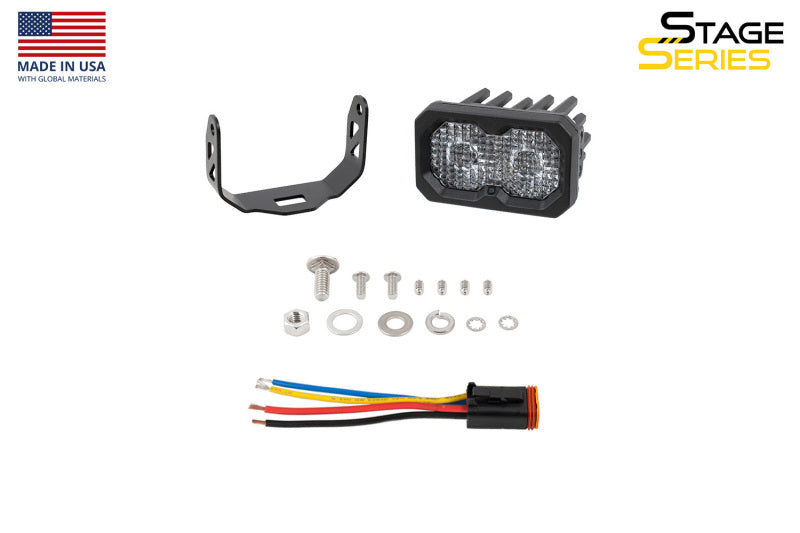

What's Included in the Box:
One Diode Dynamics Stage Series C2R LED Pod
One Deutsch-style 6-inch wire pigtail with bare leads
One mounting bracket and hardware

Fitment: Universal automotive and off-road applications. Confirm available mounting space, wiring requirements, and local regulations before installation. The yellow pigtail wire powers the high-power red output, the red wire powers the white main beam, the blue wire powers the low-power red accent, and the black wire is ground.

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Units Per Sku: 1
