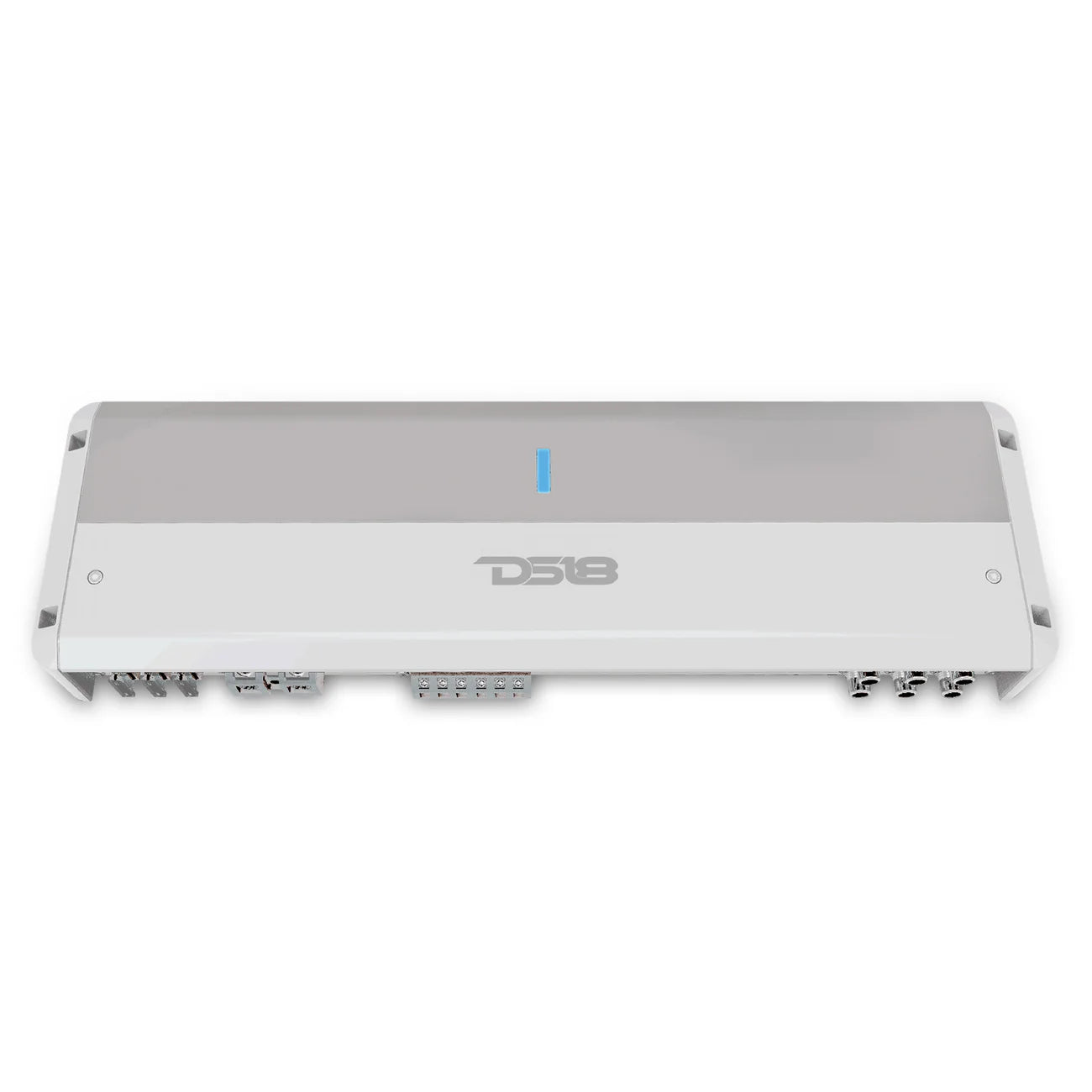

DS18 NXL 6-Channel Marine & Powersports Amplifier Class D | 6 x 150W @ 4-Ohm

NXL 6-Channel Marine & Powersports Amplifier Class D | 6 x 150W @ 4-Ohm

• KEY FEATURES

  • IP55 water-resistant with UV-protected, corrosion-resistant hardware
  • Tiffany-style RCA, high-quality potentiometers, and coated 4-layer PCB
  • 2CH/6CH input sum selector & high-level input
  • Short circuit, thermal, and voltage safeguards
  • Compact size with direct-insert power & speaker terminals



  6-Channel Marine Grade Class D Amplifier

  DS18’s NXL-M6 pumps out 150W RMS per channel at 4 ohms, 230W at 2 ohms, and when bridged, it delivers 440W across 3 channels at 4 ohms. It’s a perfect match for multi-speaker setups on boats, ATVs, and more.

  Complete Audio Control
  Customize your sound with adjustable gain controls (0.2V to 6V), selectable high-pass, low-pass, or full-range crossovers adjustable between 40Hz and 2kHz, and a variable bass boost up to 12dB at 45Hz. This amp fine-tunes AND optimizes your setup’s performance.

  Endure the Elements
  With an IP55 water-resistant rating, corrosion-resistant hardware, and a coated 4-layer PCB, the NXL-M6 thrives in the harshest marine environments. Thermal, overload, DC output, short circuit, voltage input, and clipping protections keep your system safe and reliable.

  Installation Made Simple
  The M6 comes with marine-grade mounting hardware and direct-insert power and speaker terminals for secure, clean connections. With clear LED indicators for power, clip, and protection status, you’ll always know your amp’s performance status.

  Upgrade your marine or powersports audio setup today with DS18’s NXL-M6 and experience quality on the water or off-road!



  POWER

  Total Watts (Peak)
  2700W
  RMS Power @ 4 ohm
  6 x 150W
  RMS Power @ 2 ohm
  6 x 230W
  RMS Power @ 4 ohm Bridge
  3 x 440W





  AUDIO

  Frequency Response
  20Hz - 20KHz
  Signal to Noise Ratio
  >90dB
  Efficiency @ 4ohm
  >97%
  Channel Separation
  >55dB
  Total Harmonic Distortion (THD)
  <0.15%
  Low Level Input Range
  0.2V-6V
  High Level Input
  Yes: ?5V
  Selectable X-Over
  HPF/LPF/FULL
  X-Over Filter Range
  40Hz - 2KHz
  Bass Boost Range
  0-12dB
  Bass Boost Frequency
  45Hz ?5Hz
  Phase Selector
  No





  FEATURES

  Amplifier Class
  Digital (D)
  Amplifier Type
  Stereo Full Range
  Number of Channels
  6 Channels
  Minimum Impedance
  2 ohm (Stereo) / 4 ohm (Bridge)
  Led Indicator
  Clipping / Protect / Power
  Power Input Terminal Size
  4 Ga
  Fuse Size
  150A (3x50A)
  Thermal Protection
  Yes
  Over-Load Protection
  Yes
  DC Output Protection
  Yes
  Short Circuit Output Protection
  Yes
  Voltage Input Protection
  Yes
  Clipping Protection
  Yes
  Body Color / Finish
  Gray+White / Aluminum+ABS





  EXTRA FEATURES

  Water Resistant Rated
  Yes, IP55
  PCB Layout Design
  4 Layers / Coated
  RCA Output
  No
  UV Compliant
  Yes, UV Protected and PCB Coated
  Input Sum Selector
  Yes, 2Ch or 6Ch Input Mode
  Tiffany Style RCA
  Yes
  High Level Input
  Yes, 6ch Speaker level
  Stainless Steel Hardware
  Yes, (Screws)
  Potenciometers
  High Quality Metal Knob
  Remote Level Control
  No





  MEASUREMENT

  Overall Length
  15" / 385mm
  Overall Wide
  4.5" / 116mm
  Overall Height
  1.7" / 43mm
  Heatsink Length
  14" / 360mm
  Gross Single Unit Weight
  2.2Kg
