Rockford Fosgate Digital Signal Router With 3sixty Tuning - DSR1

Rockford Fosgate Digital Signal Router With 3sixty Tuning - DSR1

Complete your ultimate high-fidelity mobile system build and lock down full electrical current distribution with professional connection integration components from Rockford Fosgate. Combining high-conductivity copper conductor strands with heavy weatherized insulation layouts, these elements protect your circuitry pathways, guaranteeing seamless long-term power and data delivery.

Product Overview & Core Highlights:

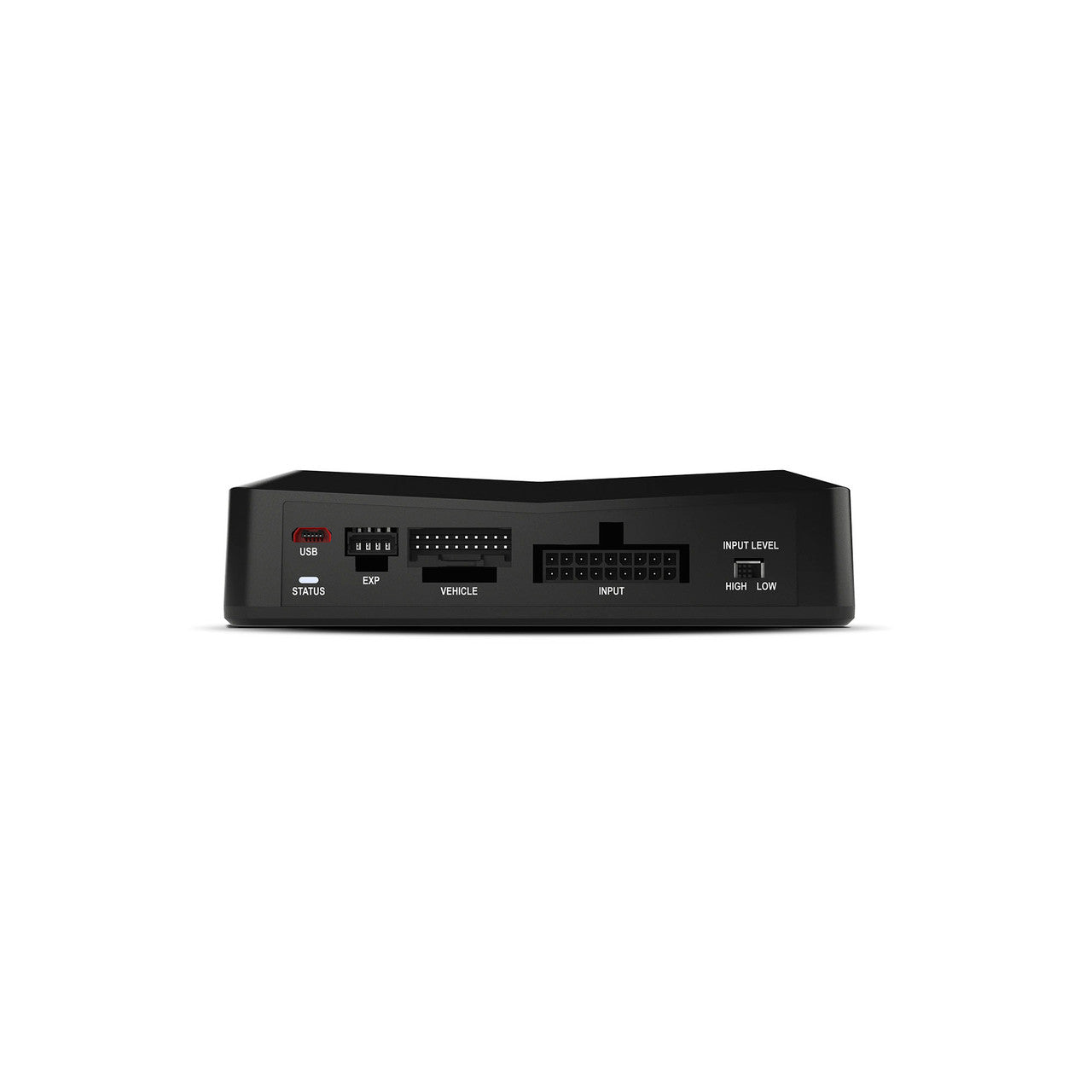

Rockford Fosgate DSR1 Digital Signal Router With 3sixty Tuning

The DSR1 is the first real solution for replacing the factory amplifier and speakers in Ford and Chrysler vehicles, as the DSR1 uses the full-range, flat audio signal from the factory source unit.

After the built-in Maestro interface is flashed with the vehicle-specific firmware, the factory source unit CANbus messages are used to control the internal signal routing of the DSR1. The DSR1 still utilizes the power processor found in our patented 3Sixty.3, but adds an easy to use app for tuning from Apple and Android devices.

• Digital Signal Processing with Integrated Maestro CAN Interface
• Four Channel Balanced Differential RCA Inputs
• Four Channel High Level Inputs with Signal Sense Turn On
• 18 Pin Analog Input Harness
• 16 Pin Analog Output Harness
• Micro USB Setup/Update Port
• Designed for use with Select Maestro Vehicle T-Harnesses
• Auxiliary RCA and SPDIF Coaxial Inputs
• Optional PLC2 Level Controller with Assignable Functions
• 245 Bands of Equalization for Aftermarket Tuning
• Adjustable crossovers with selectable slope
• Up 10msec of delay on each channel for Time Alignment
• Bluetooth 4.0 Connectivity for convenient setup
• Interactive Tuning Interface Controlled via Android/ iOS APP
• CE and FCC Compliant
• 1 Year Warranty

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 High-Performance Component Unit)
• Manufacturer Part Number (MPN): DSR1
• Product Category Component: Processors & DSPs
• Total Package Boxed Shipping Weight: 0.5 lbs
