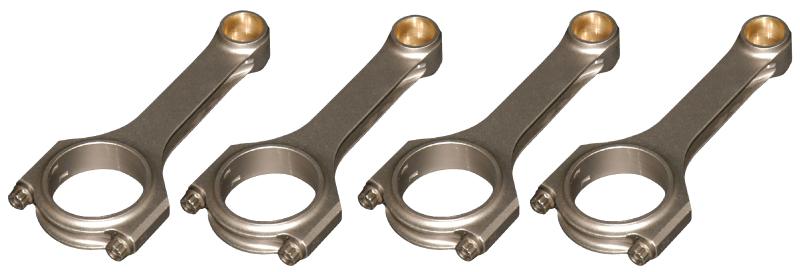

Eagle Chevrolet LS 4340 H-Beam Connecting Rod Set, 6.125-Inch, ARP 2000 Bolts - CRS6125O3D2000

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use. Forged 4340 Steel H-Beam Rods - CHEVROLET LS, 6.125" LENGTH, .927" PIN, ARP 2000 BOLTS. Torque to 75 ft-lbs, ARP moly lube ONLY. CHEVROLET LS

Upgrade a Chevrolet LS or Pontiac LS engine with the Eagle CRS6125O3D2000 forged 4340 steel H-beam connecting rod set. Designed for competition use, these rods are produced from two-piece forgings and fully machined to maintain precise tolerances throughout the assembly. The H-beam design provides a strong, rigid foundation for demanding high-performance applications.

Each connecting rod features a fully machined and shot-peened surface for improved durability and fatigue resistance. The set is weight-matched to promote consistent engine balance, while included ARP 2000 bolts provide reliable clamping strength for increased power-handling capability. The rod bolts should be torqued to 75 ft-lbs using ARP moly lubricant only. This Eagle set includes eight connecting rods for Chevrolet LS applications using a compatible 6.125-inch rod length and .927-inch wrist pin.

Key Features & Performance Benefits

• Forged 4340 steel construction: Supports strength and durability in high-performance and competition engines.
• H-beam design: Provides a rigid, efficient structure for demanding engine operation.
• Fully machined and shot-peened finish: Promotes consistent sizing and improved resistance to fatigue.
• Weight-matched set with ARP 2000 bolts: Helps support balanced engine operation and increased power-handling capability.

Key Product Specifications & Technical Data

• Brand: Eagle
• Part Number: CRS6125O3D2000
• Application: Chevrolet LS and Pontiac LS engines
• Material: Forged 4340 steel
• Rod Style: H-beam
• Rod Length: 6.125 inches
• Wrist Pin Diameter: .927 inch
• Rod Bolt Torque: 75 ft-lbs with ARP moly lubricant only

What's Included in the Box

• Eight Eagle forged 4340 steel H-beam connecting rods
• ARP 2000 rod bolts

Fitment: Fits 1998-2002 Chevrolet Camaro and 1998-2002 Pontiac Firebird applications equipped with compatible LS engines. Verify engine configuration, crankshaft compatibility, clearance requirements, and wrist pin specifications before installation.

Fitments:
1997 Chevrolet Corvette Base
1998 Chevrolet Camaro Z28
1998 Chevrolet Corvette Base
1998 Pontiac Firebird Formula
1999 Chevrolet Camaro Z28
1999 Chevrolet Corvette Base
1999 Pontiac Firebird Formula
2000 Chevrolet Camaro Z28
2000 Chevrolet Corvette Base
2000 Pontiac Firebird Formula
2001 Chevrolet Camaro Z28
2001 Chevrolet Corvette Base
2001 Chevrolet Corvette Z06
2001 Pontiac Firebird Formula
2002 Chevrolet Camaro Z28
2002 Chevrolet Corvette Base
2002 Chevrolet Corvette Z06
2002 Pontiac Firebird Formula
2003 Chevrolet Corvette Base
2003 Chevrolet Corvette Z06
2004 Cadillac CTS V
2004 Chevrolet Corvette Base
2004 Chevrolet Corvette Z06
2004 Pontiac GTO Base
2005 Cadillac CTS V
2005 Chevrolet Corvette Base
2005 Chevrolet SSR Base
2005 Pontiac GTO Base
2006 Cadillac CTS V
2006 Chevrolet Corvette Base
2006 Chevrolet Corvette Z06
2006 Chevrolet SSR Base
2006 Chevrolet Trailblazer SS
2006 Pontiac GTO Base
2007 Cadillac CTS V
2007 Chevrolet Corvette Base
2007 Chevrolet Corvette Z06
2007 Chevrolet Trailblazer SS
2008 Chevrolet Corvette Base
2008 Chevrolet Corvette Z06
2008 Chevrolet Trailblazer SS
2009 Chevrolet Corvette Base
2009 Chevrolet Corvette Z06
2009 Chevrolet Corvette ZR1
2010 Chevrolet Camaro SS
2010 Chevrolet Corvette Base
2010 Chevrolet Corvette Z06
2010 Chevrolet Corvette ZR1
2011 Chevrolet Camaro SS
2012 Chevrolet Camaro SS
2013 Chevrolet Camaro SS
