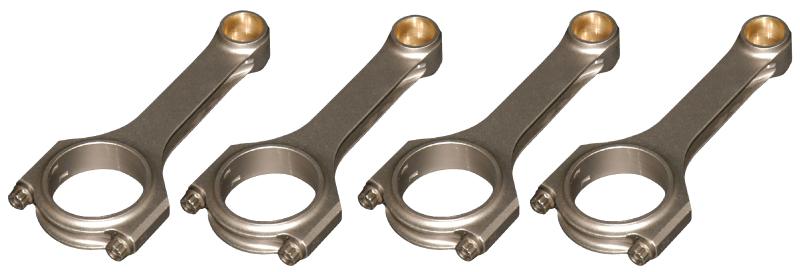

Eagle Chevrolet LS 4340 Steel H-Beam Connecting Rods, 6.125-Inch Length, .927-Inch Pin, Set of 8 - CRS6125O3D

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use. Forged 4340 Steel H-Beam Rods - CHEVROLET LS, 6.125" LENGTH, .927" PIN. Torque to 63 ft-lbs, ARP moly lube ONLY. CHEVROLET LS

Upgrade a Chevrolet LS engine for demanding competition applications with Eagle CRS6125O3D forged 4340 steel H-beam connecting rods. Manufactured from a two-piece forging, each rod is fully machined and shot-peened to provide a strong, durable foundation for high-performance engine builds. The set is weight matched to promote consistent engine balance and reliable operation under severe conditions.

These Eagle connecting rods are produced to exact sizing tolerances and designed for Chevrolet LS applications using a 6.125-inch rod length and .927-inch wrist-pin diameter. Proper installation is essential: torque the rod bolts to 63 ft-lbs using ARP moly lubricant only. Recommended for competition use, these rods are suited to builders seeking dependable components for racing and other high-performance applications.

Key Product Specifications & Technical Data

• Brand: Eagle
• Part Number: CRS6125O3D
• Application: Chevrolet LS
• Material: Forged 4340 steel
• Rod Design: H-beam
• Rod Length: 6.125 inches
• Wrist-Pin Diameter: .927 inch
• Quantity: Weight-matched set of 8

What's Included

• Eight Eagle forged 4340 steel H-beam connecting rods

Fitment

Designed for Chevrolet LS applications, including 1998-2002 Chevrolet Camaro and 1998-2002 Pontiac Firebird models when matched with the correct engine configuration and supporting components. Verify engine specifications and clearances before installation.

Installation Note: Torque rod bolts to 63 ft-lbs with ARP moly lubricant only. Professional installation and precise engine assembly practices are recommended.

Features:

• Forged 4340 steel construction: Provides a strong, durable material foundation for high-performance and competition engine applications.
• H-beam rod design: Delivers an efficient balance of strength and weight for demanding Chevrolet LS builds.
• Fully machined and shot-peened surface: Enhances consistency, surface durability, and resistance to stress during severe service.
• Weight-matched set of 8: Supports improved engine balance and consistent performance across the complete connecting-rod set.

Fitments:
1997 Chevrolet Corvette Base
1998 Chevrolet Camaro Z28
1998 Chevrolet Corvette Base
1998 Pontiac Firebird Formula
1999 Chevrolet Camaro Z28
1999 Chevrolet Corvette Base
1999 Pontiac Firebird Formula
2000 Chevrolet Camaro Z28
2000 Chevrolet Corvette Base
2000 Pontiac Firebird Formula
2001 Chevrolet Camaro Z28
2001 Chevrolet Corvette Base
2001 Chevrolet Corvette Z06
2001 Pontiac Firebird Formula
2002 Chevrolet Camaro Z28
2002 Chevrolet Corvette Base
2002 Chevrolet Corvette Z06
2002 Pontiac Firebird Formula
2003 Chevrolet Corvette Base
2003 Chevrolet Corvette Z06
2004 Cadillac CTS V
2004 Chevrolet Corvette Base
2004 Chevrolet Corvette Z06
2004 Pontiac GTO Base
2005 Cadillac CTS V
2005 Chevrolet Corvette Base
2005 Chevrolet SSR Base
2005 Pontiac GTO Base
2006 Cadillac CTS V
2006 Chevrolet Corvette Base
2006 Chevrolet Corvette Z06
2006 Chevrolet SSR Base
2006 Chevrolet Trailblazer SS
2006 Pontiac GTO Base
2007 Cadillac CTS V
2007 Chevrolet Corvette Base
2007 Chevrolet Corvette Z06
2007 Chevrolet Trailblazer SS
2008 Chevrolet Corvette Base
2008 Chevrolet Corvette Z06
2008 Chevrolet Trailblazer SS
2009 Chevrolet Corvette Base
2009 Chevrolet Corvette Z06
2009 Chevrolet Corvette ZR1
2010 Chevrolet Camaro SS
2010 Chevrolet Corvette Base
2010 Chevrolet Corvette Z06
2010 Chevrolet Corvette ZR1
2011 Chevrolet Camaro SS
2012 Chevrolet Camaro SS
2013 Chevrolet Camaro SS
