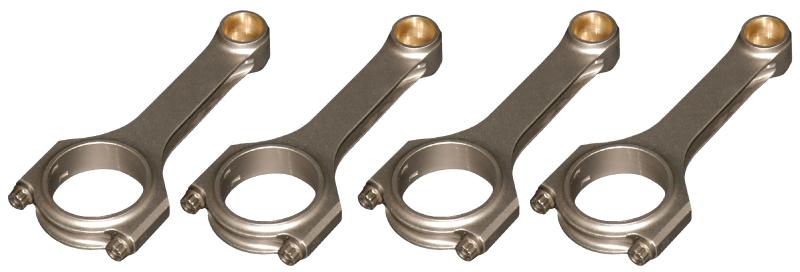

Eagle CRS5290H3D Forged 4340 Steel H-Beam Connecting Rods for Honda B16A

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use. Forged 4340 Steel H-Beam Rods - HONDA B16A. Torque to 43 ft-lbs, ARP moly lube ONLY. HONDA B16

Upgrade the rotating assembly of your Honda B16A engine with Eagle CRS5290H3D forged 4340 steel H-beam connecting rods. Manufactured from a two-piece forging, each rod is fully machined and shot-peened to support strength, durability, and consistent performance in demanding competition applications. Eagle holds critical sizing to exacting tolerances for dependable fit and engine operation.

These Eagle connecting rods are supplied as a weight-matched set of four and feature high-strength ARP 2000 rod bolts for increased power-handling capability. The H-beam design provides a strong, rigid structure for high-performance use while helping maintain reliable operation under elevated cylinder pressures and engine speeds. For installation, torque the ARP 2000 bolts to 43 foot-pounds using ARP moly lubricant only. Professional installation and verification of clearances are recommended.

The Eagle CRS5290H3D connecting rod set is designed for Honda B16 applications and is recommended for competition use. Fitment includes select 1994-1997 Honda Civic del Sol models and 1999-2000 Honda Civic models equipped with the applicable B16 engine configuration. Always confirm engine specifications, rod dimensions, crankshaft compatibility, and clearance requirements before installation. This automotive part is not CARB approved and may be subject to California Proposition 65 requirements.

Product Specifications & Technical Data

• Brand: Eagle
• Part Number: CRS5290H3D
• Application: Honda B16A engine
• Material: Forged 4340 steel
• Rod Design: H-beam
• Set Contents: Four weight-matched connecting rods
• Rod Bolts: ARP 2000
• Recommended Bolt Torque: 43 foot-pounds with ARP moly lubricant only

What's Included

• Four Eagle forged 4340 steel H-beam connecting rods
• ARP 2000 rod bolts

Features:

• Forged 4340 Steel: Provides a strong, durable foundation for high-performance and competition engine applications.
• H-Beam Construction: Delivers a rigid connecting rod design suited to increased cylinder pressure and engine speed.
• Weight-Matched Set: Four rods are matched by weight to support balanced rotating assembly performance.
• ARP 2000 Bolts: Includes high-strength rod bolts designed to improve power-handling capability when installed with ARP moly lubricant.

Fitments:
1994 Honda Civic del Sol VTEC
1995 Honda Civic del Sol VTEC
1996 Honda Civic del Sol VTEC
1997 Honda Civic del Sol VTEC
1999 Honda Civic Si
2000 Honda Civic Si

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
