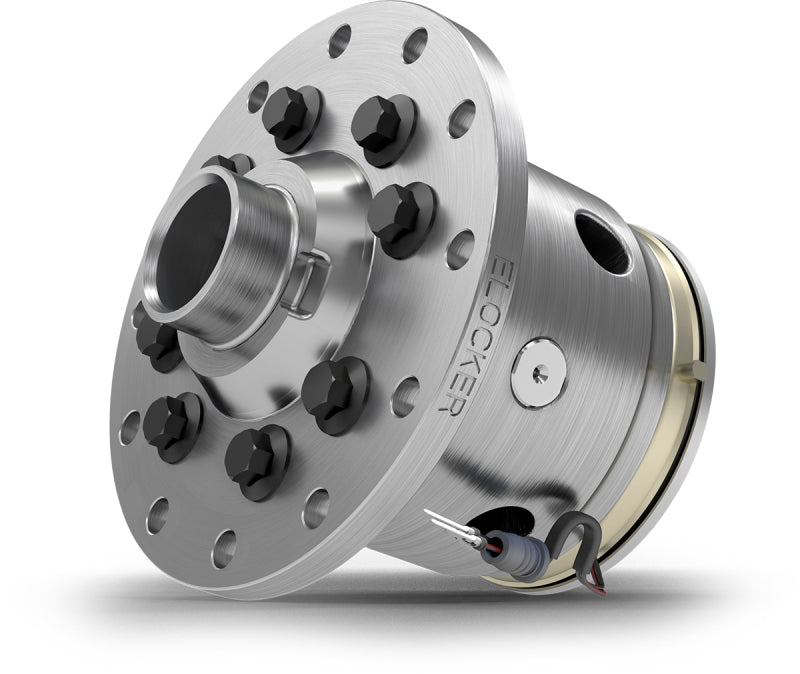

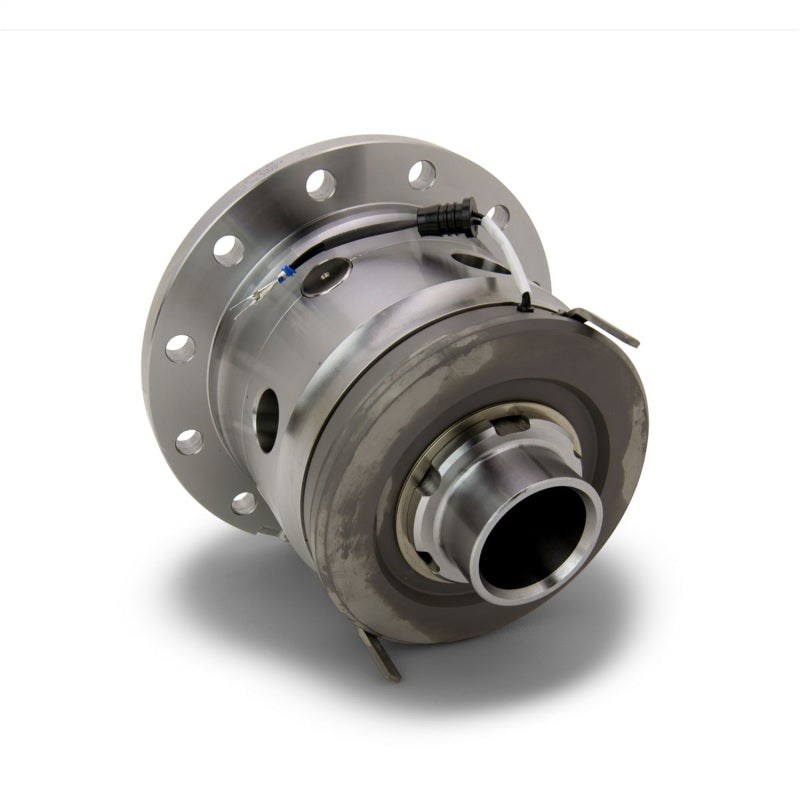

Eaton ELocker Differential for Dana 60, 35-Spline, 4.56 and Up Ratio, Part Number EAT14023-010

The Eaton ELocker is an electronic, selectable differential designed for drivers that need traction on-demand. At the flip of a dash switch, drivers can go from open to 100-percent locked. A second flip of the switch deactivates the unit to resume normal driving. The direct acting mechanism activates in .14 second to provide 100% instant axle lock, and remains locked in both forward and reverse. Eaton ELocker® Differential; Dana 60 Performance; 35 Spline; 1.50 in. Axle Shaft Diameter; 4.56 And Up Ring Gear Pinion Ratio; 9.75 in. Ring Gear Diameter;

• 4-Pinion Net-Forged Gear Design For Max Strength And Durability
• Eaton NGR locking rocker switch and wiring harness included
• Direct Acting Operation Remains Locked Forward And Reverse
• Driver controlled push-button operation
• Electromagnetic Locking Differential
• Most Reliable On-Demand Differential

The Eaton ELocker differential is an electronic, selectable locking differential designed for drivers who need traction on demand. With the included dash-mounted control switch, the differential changes from an open configuration to a fully locked axle at the push of a button. A second push disengages the locker for normal driving and improved maneuverability on paved surfaces.

Using a direct-acting electromagnetic mechanism, the Eaton ELocker activates in approximately 0.14 second and delivers an instant 100-percent axle lock. The locking action remains engaged in both forward and reverse, helping provide consistent traction in demanding off-road, work, and performance applications. The four-pinion net-forged gear design is engineered for strength and durability in Dana 60 differentials using 35-spline axle shafts.

This Eaton ELocker is configured for Dana 60 performance applications with a 9.75-inch ring gear and 4.56-and-up ring gear-to-pinion ratios. The package includes the Eaton NGR locking rocker switch and wiring harness for driver-controlled operation. Its selectable design allows the vehicle to retain normal open-differential behavior when the locker is disengaged while providing maximum available traction when locked. Verify axle configuration, spline count, ring gear ratio, and carrier compatibility before installation.

What's Included

• Eaton ELocker electronic locking differential
• Eaton NGR locking rocker switch
• Wiring harness

Fitment

Designed for Dana 60 applications with 35-spline axle shafts, a 1.50-inch axle shaft diameter, a 9.75-inch ring gear, and a 4.56-and-up ring gear-to-pinion ratio. Confirm vehicle and axle specifications before purchase.

Features:

• Selectable Electronic Locking: Switches between open and fully locked differential operation at the driver's command.
• Rapid Direct-Acting Engagement: Activates in approximately 0.14 second for near-instant traction when needed.
• Forward and Reverse Locking: Remains locked in both directions for consistent power delivery during demanding maneuvers.

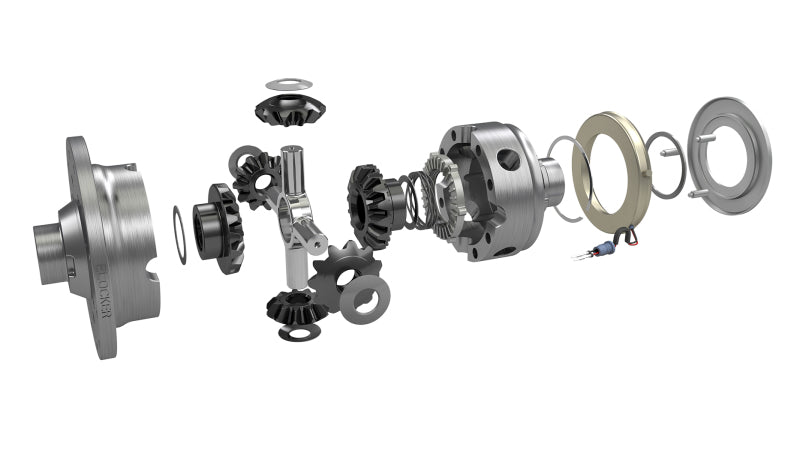

• Net-Forged Four-Pinion Gear Design: Provides enhanced strength and durability for Dana 60 performance applications.
