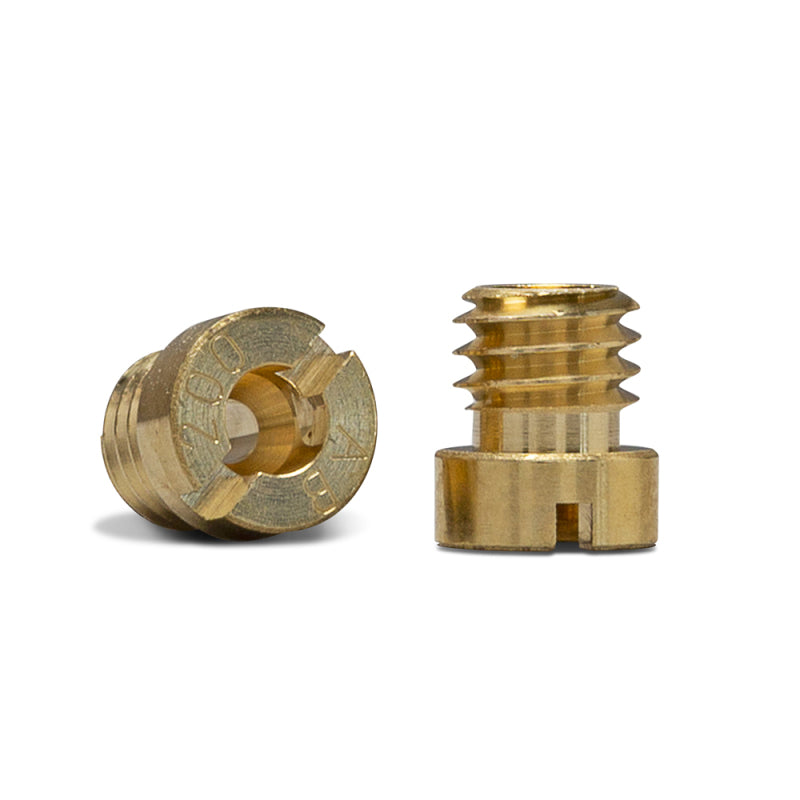

EBC Powersports Mikuni Pilot Jet Set EBC224-17.5, N224.103 Style, Pack of 4

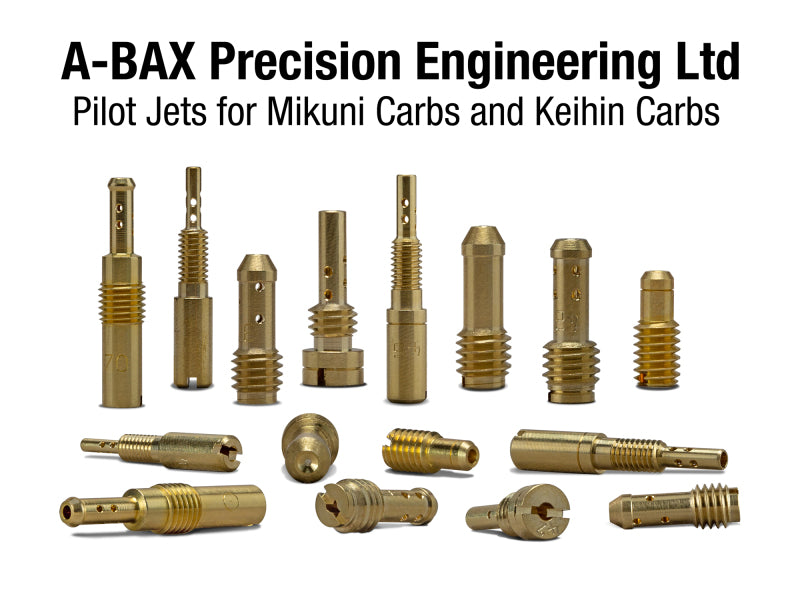

Everyone knows how sensitive an engine is to pilot jets in the acceleration stages from 1000 to 3500 rpm and getting fuel mixture right in this area is critical. For this reason jets have to be perfectly accurate in their marked size and incremental size steps. EBC Brakes sister company A-BAX Precision Engineering Ltd in the UK has purchased the most accurate machine on the planet for this work shown below. A-BAX Precision Engineering Ltd pilot jets are precise, clearly marked and reliably gauged using pin gauges, accurate to one tenth of a thousandth of an inch, you can rely on their accuracy. A-BAX Pilot Jets For Mikuni; Measures 2.5mm x 5mm x 27.8mm; Thread M4; Size 17.5; Jet Style N224.103; 2.5mm Bleed End; Packs Of 4; Fits Vehicles Honda/Kawasaki/Suzuki/Yamaha;

• NOTE - The names Mikuni and Keihin are for description purposes only; These are NOT original Mikuni or Keihin jets, simply a high-quality replacement
• OEM MX36/38 BSR CV Type
• Sold in Packs of 4
• Early TMS/TMX

Brief Description: EBC Powersports EBC224-17.5 pilot jets are precision-manufactured replacement jets designed for compatible Mikuni-style carburetors. With a size 17.5 rating and N224.103 jet style, they help provide consistent fuel metering during low-speed acceleration and throttle transitions from approximately 1,000 to 3,500 rpm. Each jet is clearly marked and gauged for dependable sizing and repeatable tuning results.

These pilot jets feature an M4 thread, a 2.5 mm bleed end, and an OEM MX36/38 BSR CV-type configuration. They are suitable for select Honda, Kawasaki, Suzuki, and Yamaha powersports applications, including early TMS/TMX carburetor designs. Verify the original jet style, thread, size, and carburetor application before installation. EBC Powersports pilot jets are sold as a set of four for servicing multiple carburetors or keeping matched replacements available.

• Feature: Precision sizing—Manufactured and checked with precision pin gauges for reliable dimensional accuracy.
• Feature: Consistent low-speed fueling—Supports accurate mixture adjustment during pilot-circuit operation and acceleration.
• Feature: N224.103 jet style—Designed for compatible OEM MX36/38 BSR CV-type and early TMS/TMX applications.
• Feature: Four-piece replacement set—Includes four matching pilot jets for convenient carburetor service.

Key Product Specifications & Technical Data:

• Brand: EBC Powersports
• Part Number: EBC224-17.5
• Jet Type: Pilot jet
• Jet Style: N224.103
• Jet Size: 17.5
• Thread: M4
• Bleed End: 2.5 mm
• Quantity: Four pilot jets

What's Included in the Box: Four EBC Powersports EBC224-17.5 pilot jets.

Fitment: Intended for select Honda, Kawasaki, Suzuki, and Yamaha powersports vehicles using compatible Mikuni-style carburetors. The Mikuni and Keihin names are used for application description only; these are high-quality replacement jets and are not original Mikuni or Keihin components. Confirm fitment with the carburetor manufacturer specifications and the original jet before ordering.

Features:

• Precision-manufactured and pin-gauged for dependable pilot jet sizing.
• Supports consistent fuel metering during low-speed acceleration and throttle transitions.
• N224.103 style with M4 thread and 2.5 mm bleed end for compatible carburetors.
• Sold as a matched set of four for convenient powersports carburetor service.
