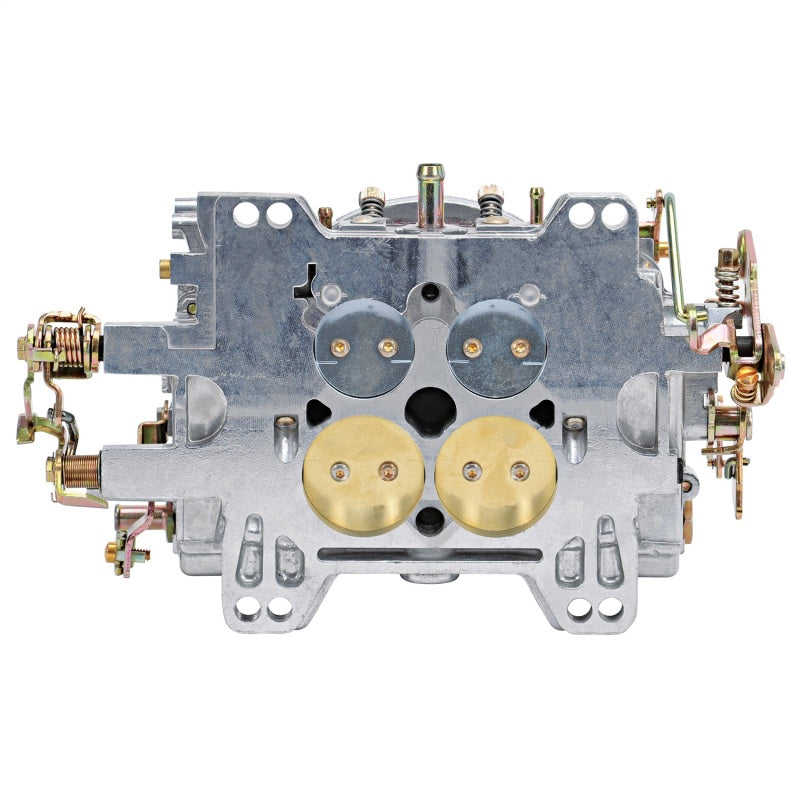

Edelbrock ede1902 AVS2 500 CFM Carburetor with Manual Choke, Satin Finish, Non-EGR

The Edelbrock #1902 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1902 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade. The Edelbrock #1902 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design.

• Includes Both Timed and Full Vacuum Ports For Ignition Advance

The Edelbrock ede1902 AVS2 Series 500 CFM Carburetor is designed and calibrated for small cubic-inch, single-carburetor applications. It is intended for use with an Edelbrock Performer or Performer EPS intake manifold, or another brand with a similar design. The carburetor features a satin finish, manual choke, and non-EGR configuration.

Key Features & Performance Benefits

• 500 CFM airflow capacity for small cubic-inch single-carburetor applications.
• AVS2 Series design calibrated for single-quad applications.
• Timed and full vacuum ports support ignition advance connections.
• Manual choke and satin finish provide the configuration and appearance specified for this application.

Product Specifications & Technical Data

• Brand: Edelbrock
• Part Number: ede1902
• Series: AVS2
• Airflow: 500 CFM
• Choke Type: Manual
• Finish: Satin
• Configuration: Non-EGR
• Factory Calibration: Primary and secondary metering jets: .095; primary metering rod: .070 x .052; orange spring: 5 inHg

What's Included

One Edelbrock AVS2 500 CFM carburetor. Carburetor studs are not stated as included; Edelbrock recommends studs #8008 or #8024 if needed.

Fitment

Designed for small cubic-inch, single-carburetor applications and intended to match with an Edelbrock Performer or Performer EPS manifold, or another brand with a similar design. Fitment data for specific vehicles or engines was not provided.

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
