Edelbrock ede1906 - Descriptions

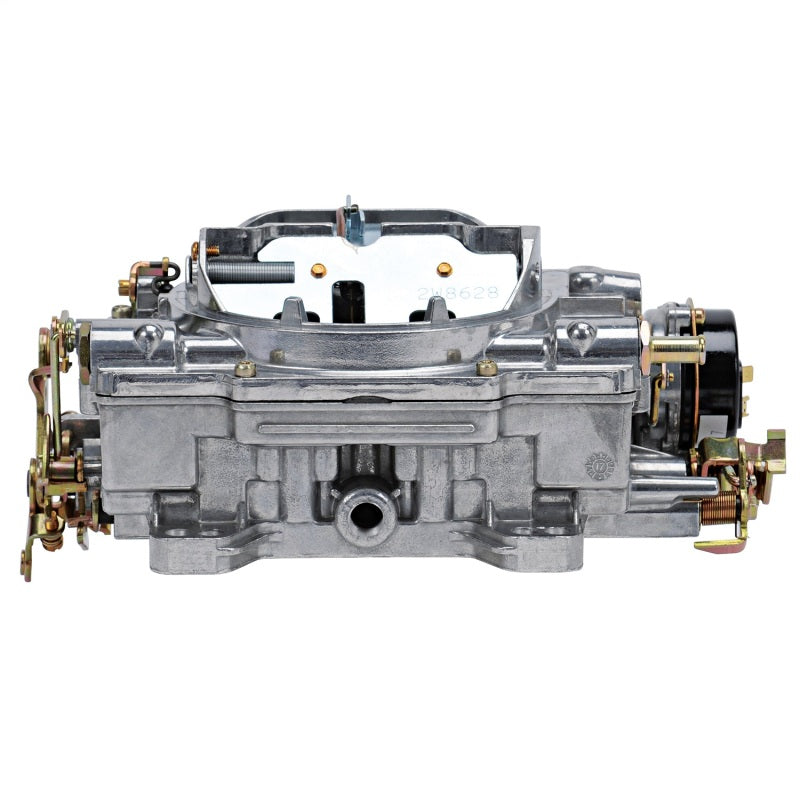

The Edelbrock AVS2 Series #1906 is a satin-finished four-barrel carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require an air-fuel flow of 650 CFM. The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #1906 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets, .070 x .037 metering rods, orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2 with electric choke, order part #19063. The Edelbrock #1906 AVS2 Series 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines.

• Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2 with electric choke, order part #19063.
• The Edelbrock AVS2 Series #1906 is a satin-finished four-barrel carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require an air-fuel flow of 650 CFM.
• Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The Edelbrock AVS2 #1906 includes both timed and full vacuum ports for ignition advance.
• It comes with: .101 primary and.098 secondary metering jets; .070 x .037 metering rods; orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed.
• The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle.
• The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds.
• The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance.
• For Single Or Dual Plane Intake Manifolds

Brief Description: The Edelbrock AVS2 Series 1906 is a satin-finished, four-barrel carburetor with an electric choke, designed and calibrated for street performance in engines requiring 650 CFM of air-fuel flow. It can serve as a replacement or upgrade for a variety of small-block and some big-block engines using single- or dual-plane intake manifolds.

Key Features & Performance Benefits:

• Annular flow primary boosters improve fuel atomization and help reduce flat spots during throttle transitions.
• Eight equally spaced orifices in each annular booster improve fuel metering from idle through the main circuit.
• New calibration supports improved off-idle and cruising performance.
• Timed and full vacuum ports provide options for ignition advance connections.

Key Product Specifications & Technical Data:

• Brand: Edelbrock
• Series: AVS2
• Part number: 1906
• Finish: Satin
• Configuration: Four-barrel carburetor
• Air-fuel flow: 650 CFM
• Choke: Electric
• Primary metering jets: .101
• Secondary metering jets: .098

What's Included in the Box: The carburetor includes .070 x .037 metering rods and an orange 5 in. Hg step-up spring. Carburetor stud kits are not stated as included.

Fitment: Compatible manifold applications stated in the product data include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM and Torker II manifolds, as well as other brands with similar designs. It is intended for use with single- or dual-plane intake manifolds and a variety of small- and big-block engines. Verify engine and intake manifold requirements before installation.

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
