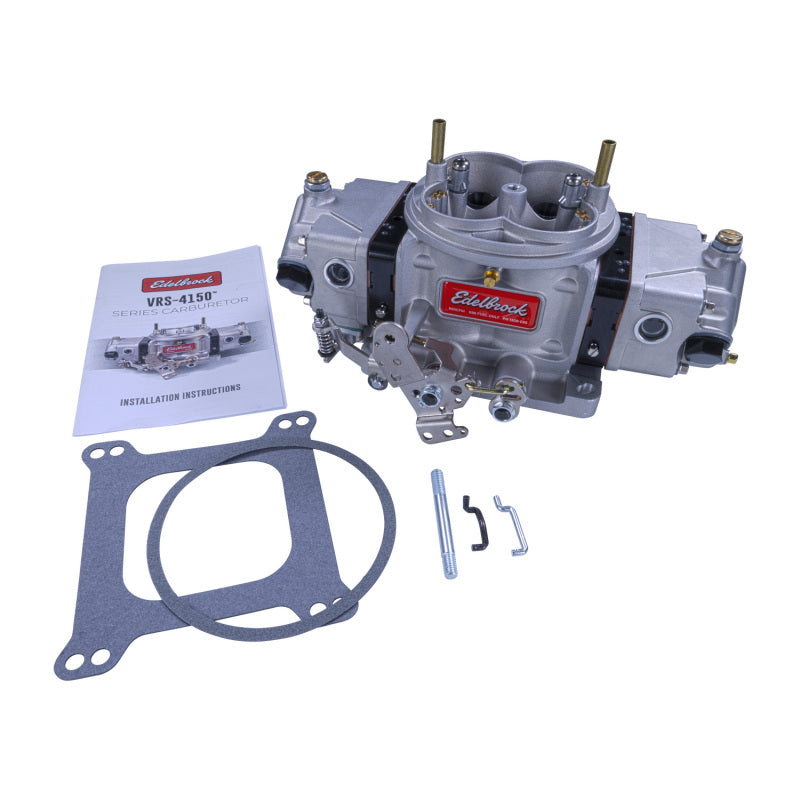

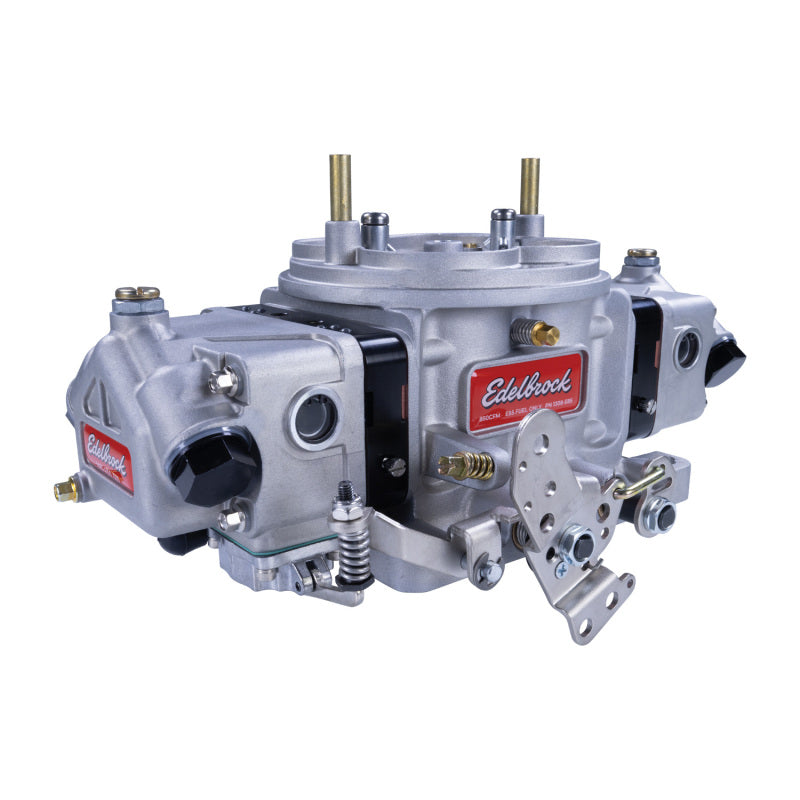

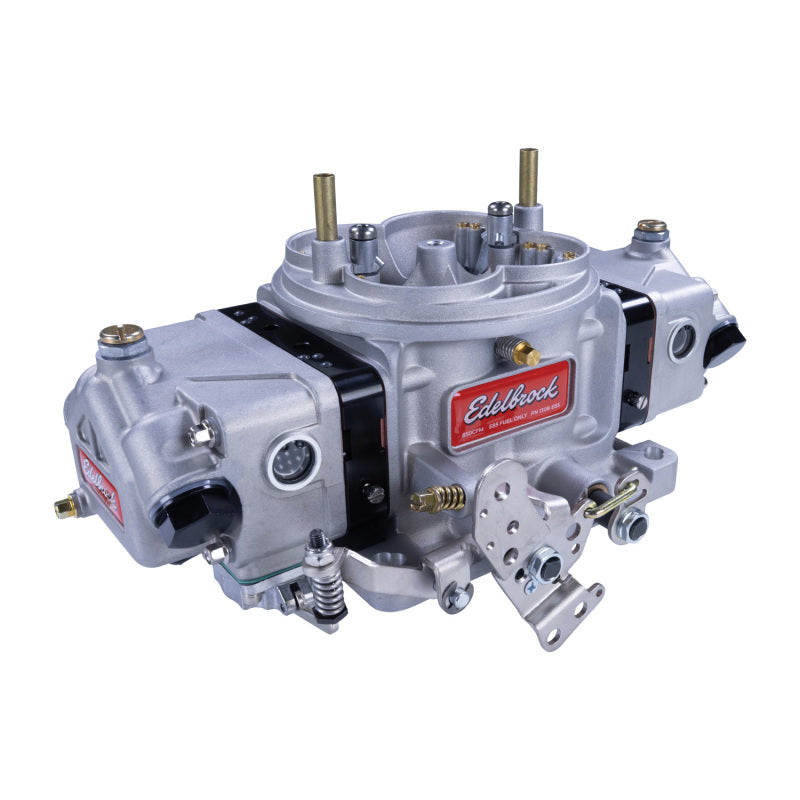

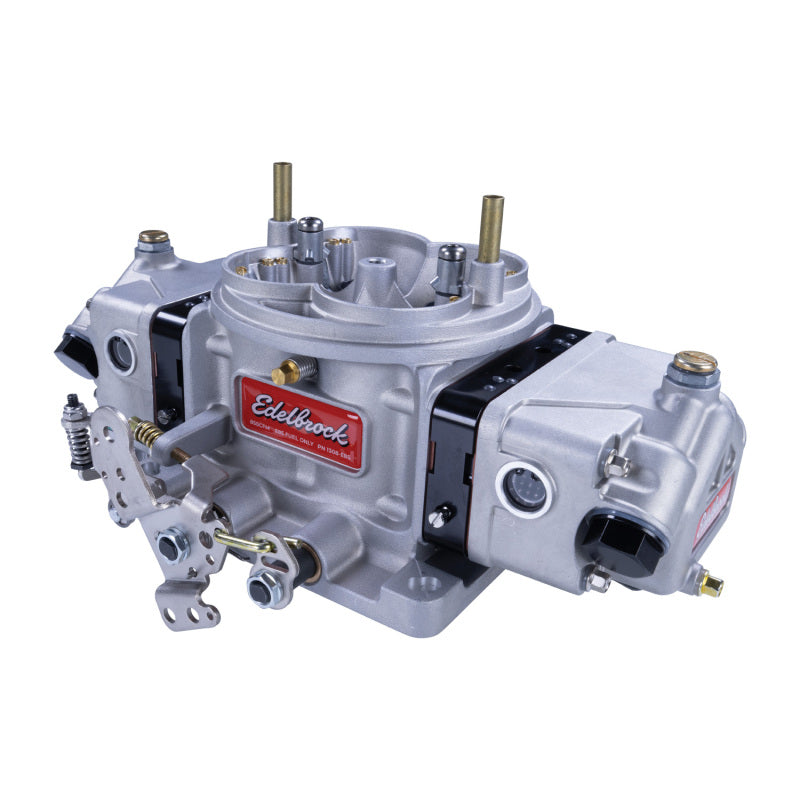

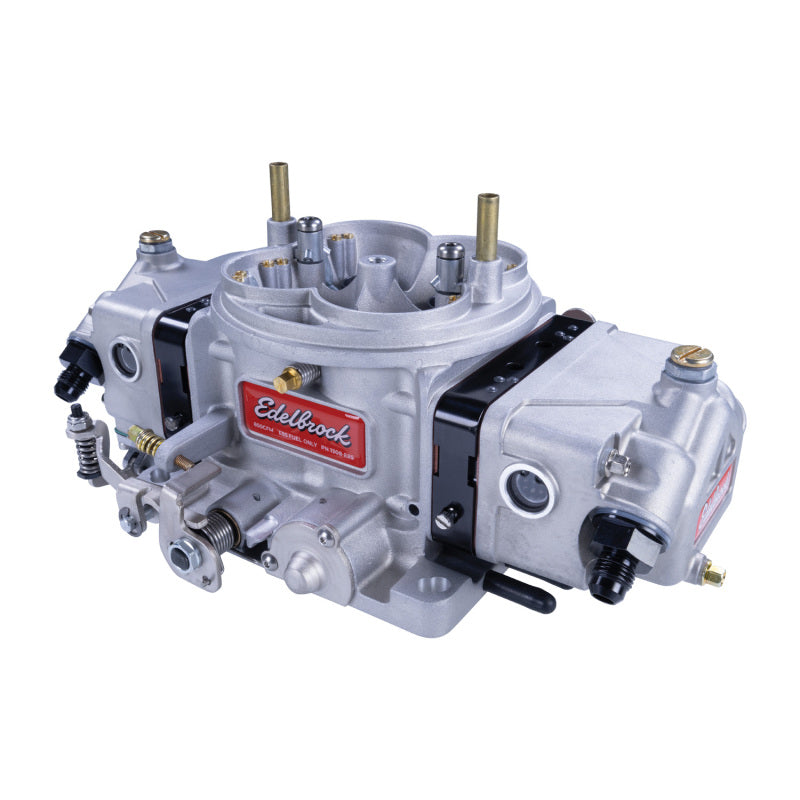

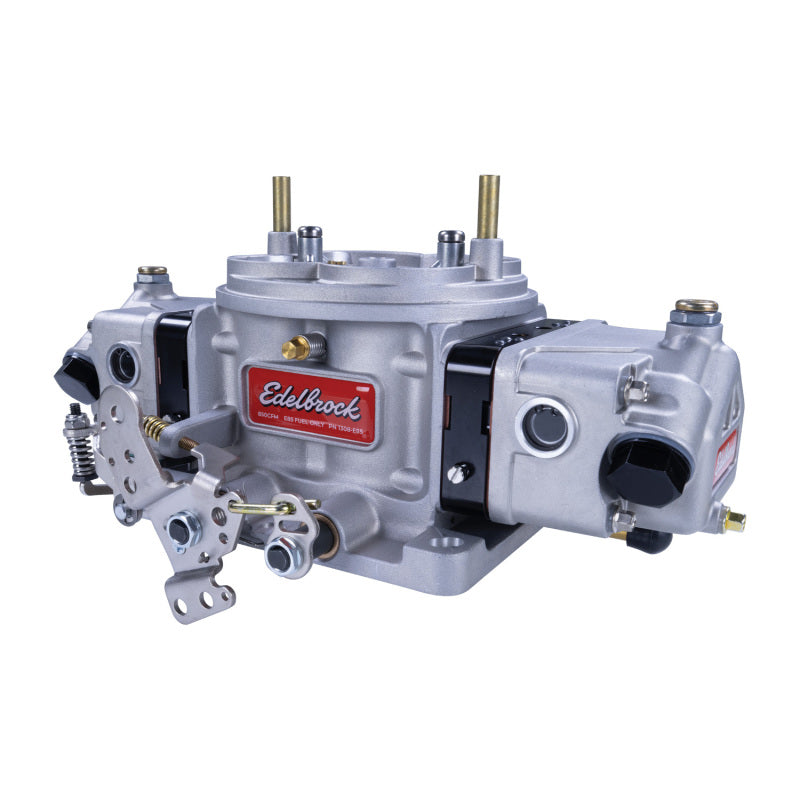

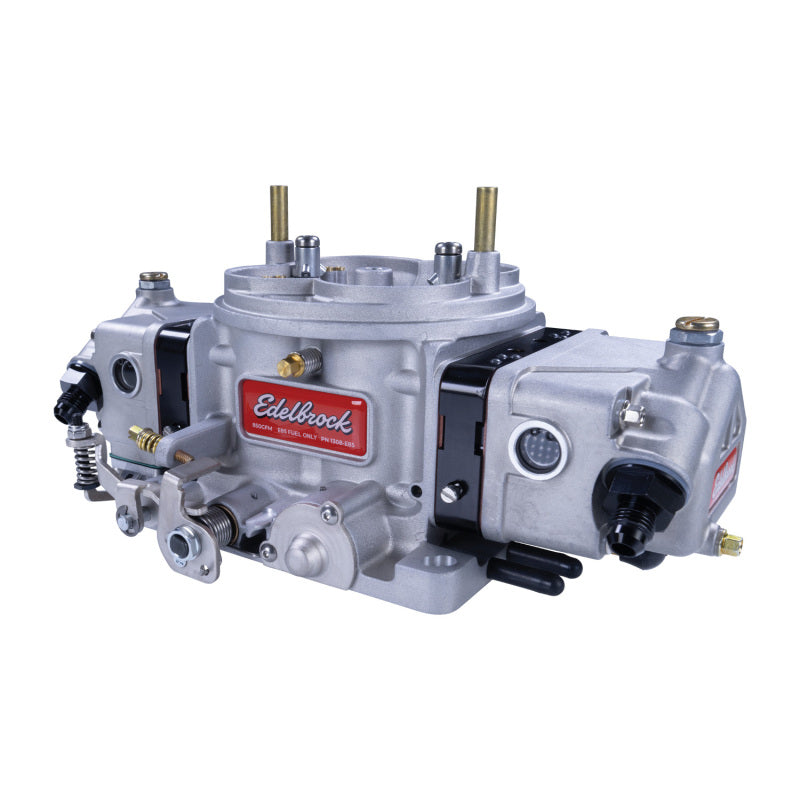

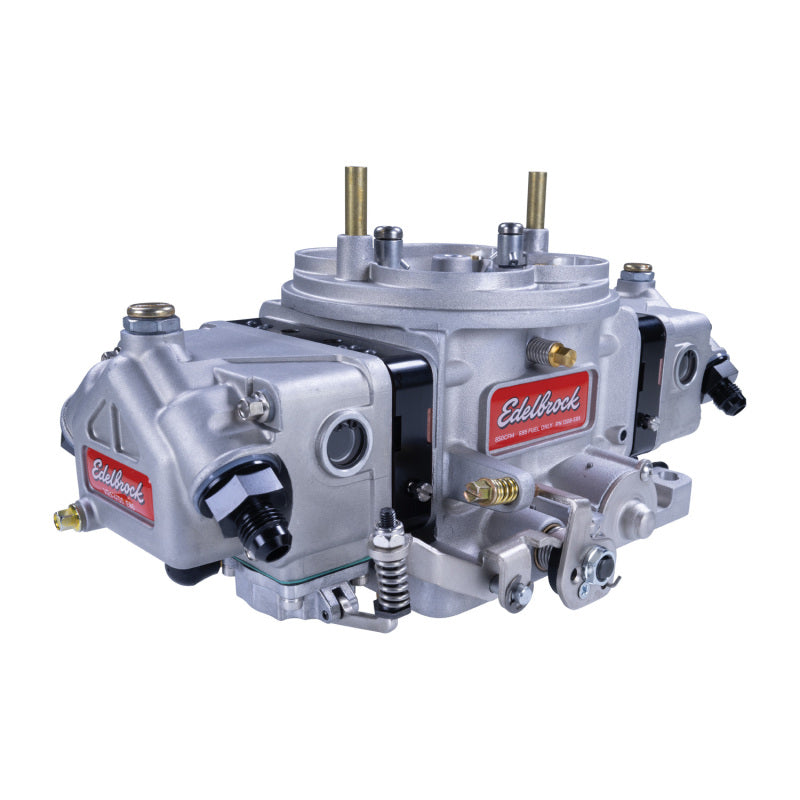

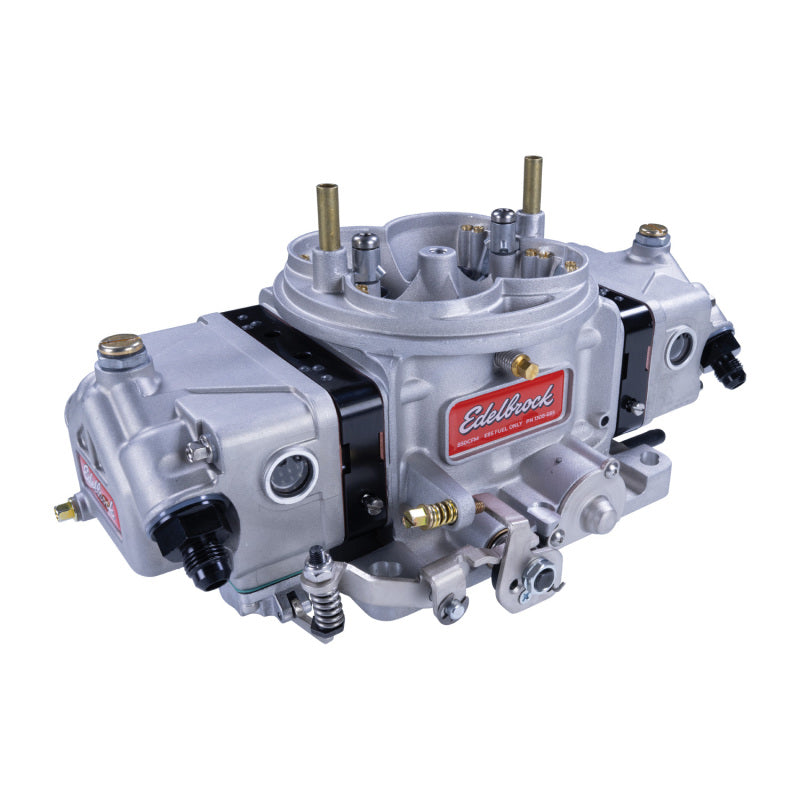

Edelbrock VRS-4150 Race & Performance Carburetor 850 CFM for E85 Ethanol Fuel

Edelbrock VRS-4150 Race & Performance Carburetor #1308-E85 has features that benefit both racers and high-performance street enthusiasts. Custom metering blocks and extra-large fuel jets specifically built for E-85 applications. Annular boosters provide superior air-fuel mixing for exceptional performance. The 20% larger fuel bowls use ribs to minimize incoming fuel foaming and control slosh. Nitrophyl floats shaped to avoid shutting off fuel flow during hard cornering. Jet extenders in the secondary bowl keep the jets covered in fuel under hard acceleration. Dual 50cc accelerator pump circuits can satisfy large engine sizes. The one-piece 3.75-inch-tall aluminum body is a direct fit on either 4150 or 4500-style intake manifolds. The throttle arm includes all the popular transmission kickdown take-off points. Vacuum ports for PCV, power brake, vacuum advance, and transmission modulator for a direct bolt-on installation. Built-in provision for a GM three-wire TPS. Four-circuit billet metering blocks use industry standard-size screw-in bleeds and jets. The intermediate fuel circuit provides extra fuel just after the blade passes the transfer slot for incredible throttle response. Air bleeds on top of the carburetor provide a quick way to fine-tune each fuel circuit. The high-speed fuel circuit has two air bleed paths – one for lower and one for upper sections of the main well for greater fuel ratio control at high RPM. Two auxiliary idle air screws allow users to change idle speed without moving the parked throttle blades away from their ideal position. The idle circuit features interchangeable jets and four mixture screws to create a smooth, clean idle, even with the biggest camshafts. Dual power valves allow leaner cruise and add fuel as you get deeper into the throttle for great street performance driving. Protection circuits prevent backfires from damaging the diaphragms. PN 1308-E85 is the latest 850 CFM version in the VRS-4150 Race Series line of carburetors. It flows 30% more fuel to match the needs of E85 ethanol fuel. Like all VRS-4150 Carburetors, #1308-E85 works great on racing or street applications.

• The throttle arm includes all the popular transmission kickdown take-off points. Vacuum ports for PCV, power brake, vacuum advance, and transmission modulator for a direct bolt-on installation. Built-in provision for a GM three-wire TPS.
• Four-circuit billet metering blocks use industry standard-size screw-in bleeds and jets. The intermediate fuel circuit provides extra fuel just after the blade passes the transfer slot for incredible throttle response.
• Dual power valves allow leaner cruise and add fuel as you get deeper into the throttle for great street performance driving. Protection circuits prevent backfires from damaging the diaphragms.
• Dual 50cc accelerator pump circuits can satisfy large engine sizes. The one-piece 3.75-inch-tall aluminum body is a direct fit on either 4150 or 4500-style intake manifolds.
• Custom metering blocks and extra-large fuel jets specifically built for E-85 applications. Annular boosters provide superior air-fuel mixing for exceptional performance.
• Nitrophyl floats shaped to avoid shutting off fuel flow during hard cornering. Jet extenders in the secondary bowl keep the jets covered in fuel under hard acceleration.
• The high-speed fuel circuit has two air bleed paths – one for lower and one for upper sections of the main well for greater fuel ratio control at high RPM.
• Edelbrock VRS-4150 Race & Performance Carburetor #1308-E85 has features that benefit both racers and high-performance street enthusiasts.
• Two auxiliary idle air screws allow users to change idle speed without moving the parked throttle blades away from their ideal position.
• The idle circuit features interchangeable jets and four mixture screws to create a smooth, clean idle, even with the biggest camshafts.
• Provisions for TPS Sensor, multiple vacuum take-offs, and trans kick-down attachment for ease of use in street oriented applications.

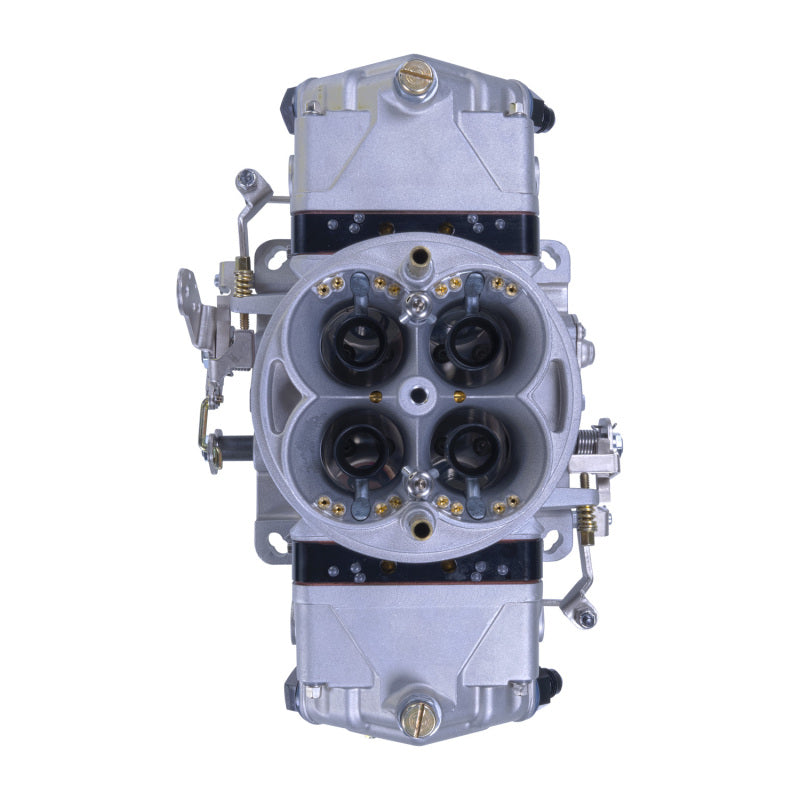

• Annular Boosters for superior air-fuel mixing. Custom billet metering blocks flow more fuel to provide the ideal E85 AFR.
• The 20% larger fuel bowls use ribs to minimize incoming fuel foaming and control slosh.
• Air bleeds on top of the carburetor provide a quick way to fine-tune each fuel circuit.

The Edelbrock VRS-4150 Race & Performance Carburetor #1308-E85 is designed to deliver exceptional fuel delivery and throttle response for high-performance racing and street applications. Featuring custom metering blocks and extra-large fuel jets specifically calibrated for E85 ethanol fuel, this carburetor ensures optimal combustion and power output. Its annular boosters promote superior air-fuel mixing, resulting in improved efficiency and throttle responsiveness. The 20% larger fuel bowls incorporate internal ribs to minimize fuel foaming and slosh, providing consistent fuel delivery during aggressive driving or racing conditions. Nitrophyl floats are shaped to prevent fuel shut-off during hard cornering, maintaining reliable fuel flow even under lateral G-forces. Jet extenders in the secondary bowl keep the jets submerged in fuel during hard acceleration, ensuring steady fueling at all times.

Features:

• Transmission kickdown points on the throttle arm for versatile installation

• Vacuum ports for PCV, power brake, vacuum advance, and transmission modulator, enabling straightforward bolt-on setup

• Built-in provision for GM three-wire TPS sensor for electronic throttle control integration

• Four-circuit billet metering blocks with industry-standard screw-in bleeds and jets for precise fuel metering

• Intermediate fuel circuit provides extra fuel immediately after transfer slot to enhance throttle response

• Dual power valves allow for leaner cruise and richer acceleration, optimizing street performance

• Dual 50cc accelerator pump circuits support large engine sizes for rapid throttle response

• One-piece aluminum body measuring 3.75 inches tall fits both 4150 and 4500-style intake manifolds

• Custom metering blocks and large fuel jets built for E85 applications to maximize performance

• Annular boosters provide superior air-fuel mixture for higher efficiency and power

• Nitrophyl floats prevent fuel flow interruption during aggressive cornering

• Jet extenders in secondary bowl ensure jets stay submerged during high throttle demands

• Top-mounted air bleeds enable quick fine-tuning of fuel circuits for optimal idle and transition

• High-speed fuel circuit features dual air bleed paths for precise AFR control at high RPM

• Two auxiliary idle air screws allow easy adjustment of idle speed without moving throttle blades

• Interchangeable idle jets and four mixture screws produce a smooth, stable idle with large cams

• Dual power valves support variable fuel delivery for street and race use

• Protection circuits safeguard diaphragms from backfire damage, increasing durability

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Units Per Sku: 1
