Eibach E86-27-011-01-22 PRO-Truck Lift System Stage 2 for 2019-2020 Ram 1500 V8 2WD

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks + Pro-Lift-Kit Springs
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Upgrade the suspension performance and adjustability of your 2019-2020 Ram 1500 V8 2WD with the Eibach PRO-Truck Lift System Stage 2, part number E86-27-011-01-22. This complete system combines adjustable front 2.0 coilovers with rear sport shocks and PRO-LIFT-KIT springs to improve handling, ride control, ground clearance, and off-road capability. The rear components share the proven configuration used in Eibach's Stage 1 system, while the front coilovers add adjustable ride-height capability for increased load support and improved clearance.

The front coilovers use an extended-travel monotube design with nitrogen-filled variable-force valving. This setup is engineered to provide controlled handling during on-road driving while maintaining suspension compliance and traction on uneven trails. A threaded spring perch allows adjustment to accommodate increased loads, and the coilovers are compatible with Eibach ERO Off-Road Race Springs. Anodized 6061-T6 billet aluminum mounts and a 46 mm piston contribute to durability in demanding driving conditions.

Each damper is individually dyno tested for matched performance and reliability, while the heavy-duty bushing system is cycle tested for long-term durability. The system is engineered, tested, and manufactured by Eibach in the U.S.A. It is designed for select 2019-2020 Ram 1500 V8 2WD applications and is supplied in two boxes. Professional installation and alignment are recommended after installation. This product is not CARB approved and may not be legal for use on pollution-controlled vehicles in certain jurisdictions.

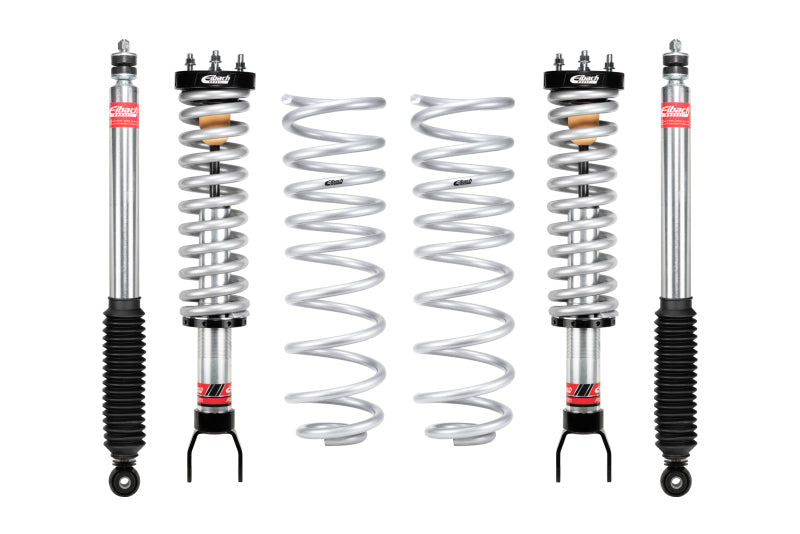

What's Included

• Front PRO-Truck-Coilover 2.0 coilovers
• Rear sport shocks
• PRO-LIFT-KIT rear lift springs
• Front coilover mounts and related suspension hardware

Fitment

Fits select 2019-2020 Ram 1500 V8 2WD models. Verify vehicle configuration and application details before ordering.

Features:

• Adjustable Front Spring Perch: Threaded perch supports increased loads and allows ride-height adjustment for improved clearance.
• Extended-Travel Coilover Design: Front 2.0 coilovers deliver additional suspension travel for improved off-road control and traction.
• Variable-Force Valving: Nitrogen-filled monotube dampers balance controlled on-road handling with trail compliance.
• Complete Stage 2 Suspension System: Includes front PRO-Truck-Coilover 2.0 coilovers, rear sport shocks, and PRO-LIFT-KIT springs.

Fitments:
2019 Ram 1500 Big Horn
2019 Ram 1500 Laramie
2019 Ram 1500 Laramie Longhorn
2019 Ram 1500 Limited
2019 Ram 1500 Lone Star
2019 Ram 1500 Rebel
2019 Ram 1500 Tradesman
2020 Ram 1500 Big Horn
2020 Ram 1500 Laramie
2020 Ram 1500 Laramie Longhorn
2020 Ram 1500 Limited
2020 Ram 1500 Lone Star
2020 Ram 1500 Rebel
2020 Ram 1500 Tradesman
2021 Ram 1500 Big Horn
2021 Ram 1500 Laramie
2021 Ram 1500 Laramie Longhorn
2021 Ram 1500 Limited
2021 Ram 1500 Limited Longhorn
2021 Ram 1500 Lone Star
2021 Ram 1500 Longhorn
2021 Ram 1500 Rebel
2021 Ram 1500 Tradesman
2022 Ram 1500 Big Horn
2022 Ram 1500 Laramie
2022 Ram 1500 Limited
2022 Ram 1500 Limited Longhorn
2022 Ram 1500 Lone Star
2022 Ram 1500 Rebel
2022 Ram 1500 Tradesman
2023 Ram 1500 Big Horn
2023 Ram 1500 Laramie
2023 Ram 1500 Limited
2023 Ram 1500 Limited Longhorn
2023 Ram 1500 Lone Star
2023 Ram 1500 Rebel
2023 Ram 1500 Tradesman
2024 Ram 1500 Big Horn
2024 Ram 1500 HFE
2024 Ram 1500 Laramie
2024 Ram 1500 Limited
2024 Ram 1500 Limited Longhorn
2024 Ram 1500 Lone Star
2024 Ram 1500 Rebel
2024 Ram 1500 Tradesman
2024 Ram 1500 TRX

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Number Of Boxes: 2
Units Per Sku: 1
