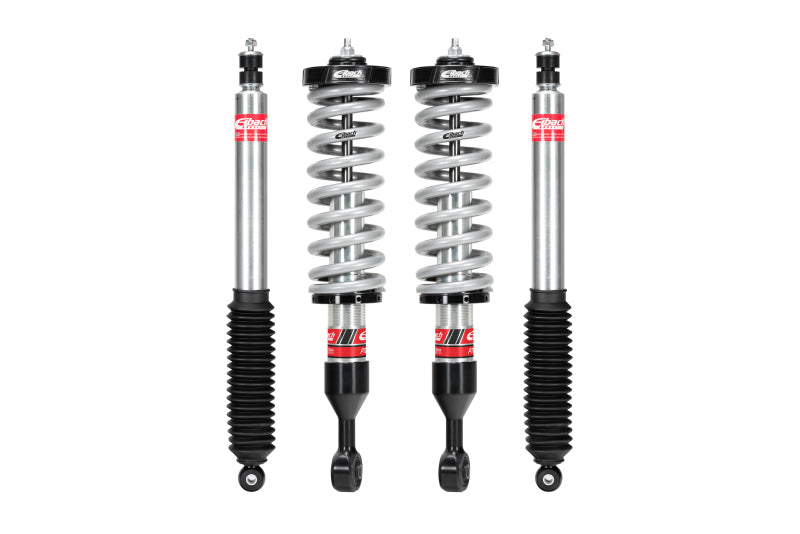

Eibach E86-82-070-01-22 Pro-Truck Lift Stage 2 Coilover Kit for 2005-2015 Toyota Hilux N70 and 2016-2022 Hilux N80 4WD

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

The Eibach E86-82-070-01-22 Pro-Truck Lift Stage 2 System is engineered for 2005-2015 Toyota Hilux N70 and 2016-2022 Toyota Hilux N80 4WD applications. This suspension package combines adjustable front Pro-Truck-Coilover 2.0 units with rear lift springs and Sport Shocks to improve vehicle control, ride compliance, and off-road traction. It is designed for drivers who need increased front-end adjustability for added loads, suspension clearance, and changing trail conditions.

The front coilovers use Eibach's extended-travel monotube design with nitrogen-filled variable-force valving. This setup provides controlled handling during on-road driving while allowing the suspension to remain compliant over uneven terrain. Adjustable threaded spring perches help accommodate increased loads and provide additional tuning flexibility. The coilover assemblies include anodized 6061-T6 billet aluminum mounts, a 46 mm piston, and compatibility with ERO Off-Road Race Springs.

• Application: 2005-2015 Toyota Hilux N70 and 2016-2022 Toyota Hilux N80 4WD
• System: Pro-Truck Lift Stage 2 suspension kit

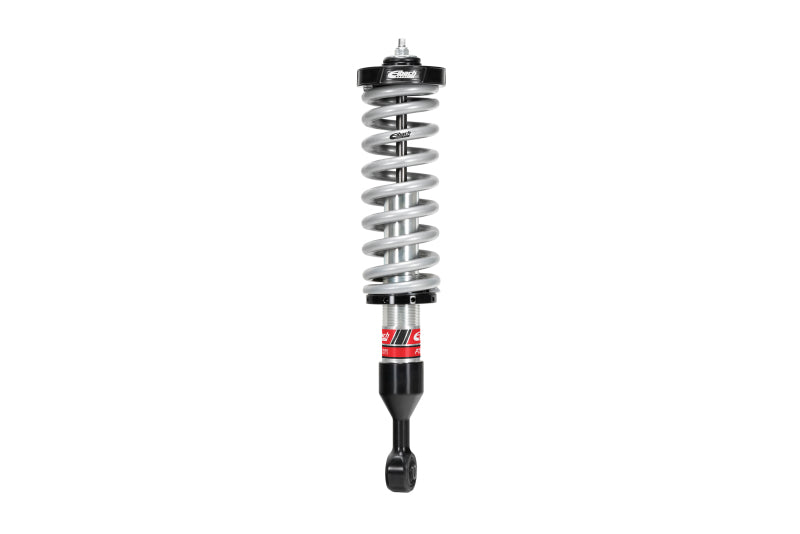

• Front Configuration: Adjustable Pro-Truck-Coilover 2.0 extended-travel coilovers
• Rear Configuration: Lift springs and Sport Shocks with air bag delete components
• Damper Design: Monotube construction with nitrogen-filled variable-force valving
• Mount Material: Anodized 6061-T6 billet aluminum coilover mounts
• Piston Size: 46 mm
• Testing and Origin: Individually dyno tested, cycle tested, engineered, tested, and manufactured by Eibach in the U.S.A.

The Eibach E86-82-070-01-22 system is individually dyno tested for matched performance and reliability, while the heavy-duty bushing system is cycle tested for durability. The kit is supplied as a complete Stage 2 suspension solution for compatible Toyota Hilux 4WD models and is intended for off-road and performance-oriented use. Professional installation is recommended, followed by an alignment and verification of suspension clearances.

What's Included: Front Pro-Truck-Coilover 2.0 assemblies, rear lift springs, rear Sport Shocks, air bag delete components, coilover mounts, and associated suspension hardware for the specified application.

Features:

• Adjustable front threaded spring perches accommodate increased loads and provide additional suspension clearance and tuning range.
• Extended-travel monotube coilovers with nitrogen-filled variable-force valving deliver controlled on-road handling and improved off-road traction.
• Anodized 6061-T6 billet aluminum mounts, a 46 mm piston, and heavy-duty bushings support durable performance in demanding conditions.
• Complete Stage 2 system combines front Pro-Truck-Coilover 2.0 units with rear lift springs, Sport Shocks, and air bag delete components.

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
