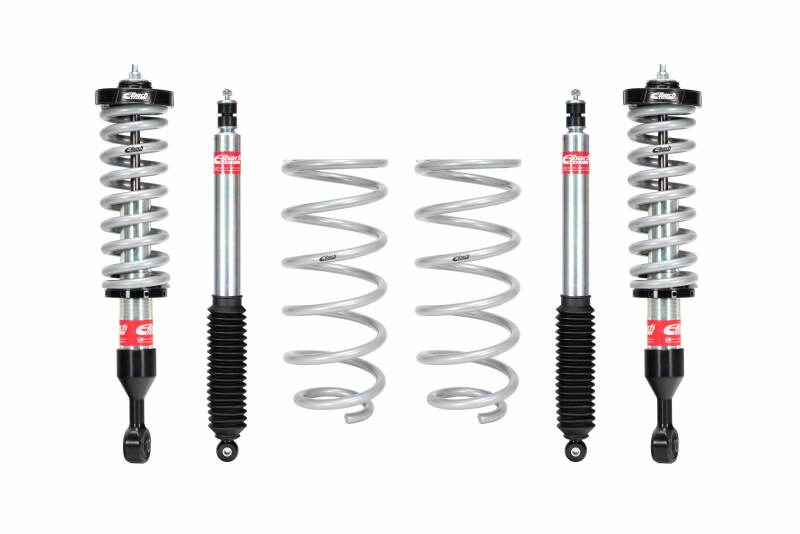

Eibach E86-82-073-01-22 Pro-Truck Lift Stage 2 Coilover and Shock System for Toyota 4Runner and FJ Cruiser

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks + Pro-Lift-Kit Springs
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Upgrade your Toyota 4Runner or FJ Cruiser with the Eibach PRO-TRUCK-LIFT Stage 2 suspension system, part number E86-82-073-01-22. This system combines adjustable front Pro-Truck-Coilover 2.0 units with rear sport shocks and Pro-Lift-Kit springs for improved ride control, increased ground clearance, and dependable performance on and off the road. The front suspension offers adjustable ride-height capability from approximately 1.5 to 4 inches, while the rear system provides approximately 0 to 1.5 inches of lift.

The front coilovers use Eibach’s extended-travel monotube design with nitrogen-filled variable force valving. This setup is engineered to provide controlled handling during street driving while maintaining compliance and traction on uneven trails. Adjustable threaded spring perches accommodate increased vehicle loads and help maximize available clearance. The system is also compatible with ERO Off-Road Race Springs for additional tuning flexibility.

• Front adjustable threaded spring perch for load support, ride-height adjustment, and improved clearance.
• Anodized 6061-T6 billet aluminum coilover mounts with a 46 mm piston and monotube construction.
• Nitrogen-filled variable force valving for balanced on-road control and off-road traction.
• Individually dyno tested and cycle tested for matched performance, durability, and reliability.
• Engineered, tested, and manufactured by Eibach in the U.S.A.

This Eibach Stage 2 system is designed for select 2003–2005 Toyota 4Runner applications and 2007–2009 Toyota FJ Cruiser applications. Confirm the vehicle year, engine, drivetrain, and suspension configuration before installation. Professional installation and a complete alignment are recommended after fitting the system.

Features:

• Adjustable Front Ride Height: Provides approximately 1.5 to 4 inches of front lift adjustment for clearance and load accommodation.
• Rear Lift and Control: Combines Pro-Lift-Kit springs with rear sport shocks for approximately 0 to 1.5 inches of rear lift.
• Extended-Travel Coilover Design: Improves suspension movement and helps maintain tire contact over uneven terrain.
• Variable Force Valving: Delivers controlled street handling with compliant off-road performance and improved traction.
• Adjustable Threaded Spring Perch: Allows ride-height tuning and accommodates increased vehicle loads.
• 6061-T6 Billet Aluminum Mounts: Provides a strong, corrosion-resistant foundation for the front coilovers.
• Monotube Nitrogen-Charged Construction: Supports consistent damping performance during demanding driving conditions.
• Dyno and Cycle Tested: Each system is tested for matched performance, reliability, and bushing durability.

Fitments:
2003 Toyota 4Runner Limited
2003 Toyota 4Runner Sport
2003 Toyota 4Runner SR5
2004 Toyota 4Runner Limited
2004 Toyota 4Runner Sport
2004 Toyota 4Runner SR5
2005 Toyota 4Runner Limited
2005 Toyota 4Runner Sport
2005 Toyota 4Runner SR5
2006 Toyota 4Runner Limited
2006 Toyota 4Runner Sport
2006 Toyota 4Runner SR5
2007 Toyota 4Runner Limited
2007 Toyota 4Runner Sport
2007 Toyota 4Runner SR5
2007 Toyota FJ Cruiser Base
2008 Toyota 4Runner Limited
2008 Toyota 4Runner Sport
2008 Toyota 4Runner SR5
2008 Toyota FJ Cruiser Base
2009 Toyota 4Runner Limited
2009 Toyota 4Runner Sport
2009 Toyota 4Runner SR5
2009 Toyota FJ Cruiser Base

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
