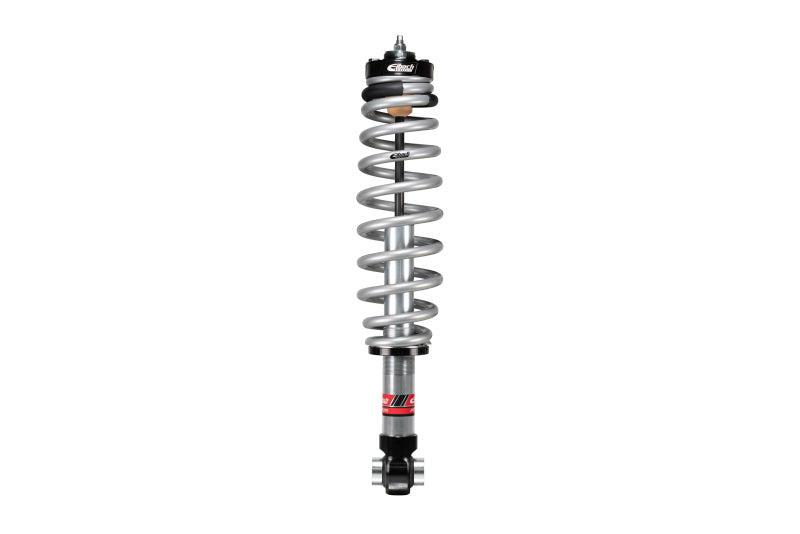

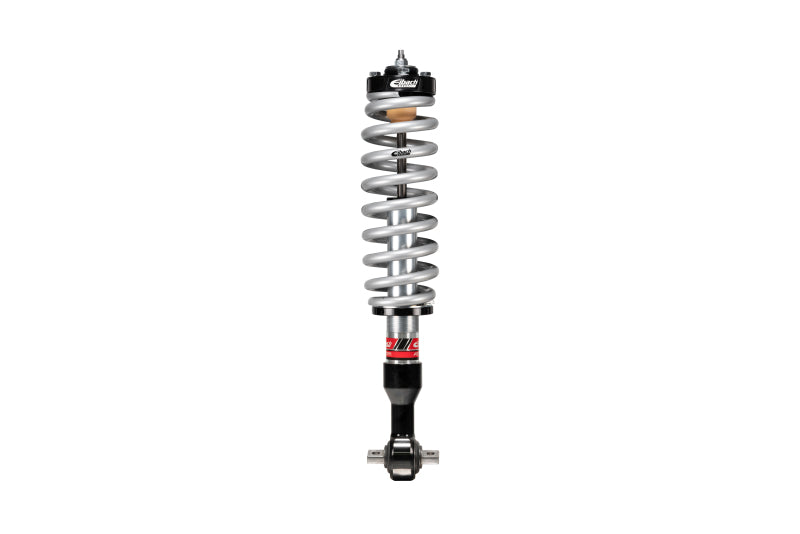

Eibach Pro-Truck Coilover 2.0 Stage 2 with HD Springs for 2021-2023 Ford Bronco - E86-35-056-05-22

Developed utilizing our extended-travel monotube design and variable force valving, Eibach PRO-TRUCK COILOVER 2.0 delivers control during on-road transit and compliance for maximum traction on the trails. Listed lift heights are heights with full weight front and rear, range is full range of coil over adjustment (full low to full high).

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.

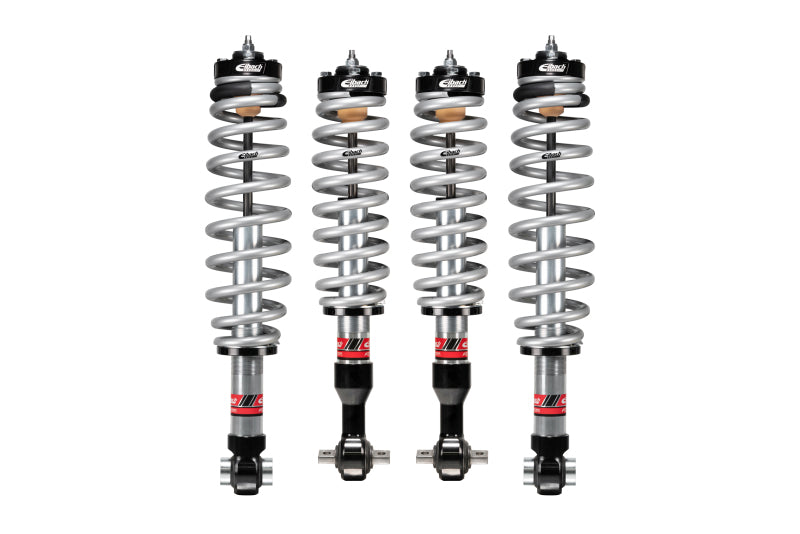

• Stage 2 system featuring Pro-Truck-Coilover 2.0's front and rear.
• Individually Dyno Tested for Matched Performance and Reliability.
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Upgrade the suspension performance of your 2021-2023 Ford Bronco with the Eibach Pro-Truck Coilover 2.0 Stage 2 system. Designed with extended-travel monotube technology and variable force valving, this suspension package delivers controlled handling during on-road driving while maintaining compliance and traction on demanding off-road terrain. The system includes Pro-Truck Coilover 2.0 units for both the front and rear, providing a balanced suspension solution for trail use, daily driving, and increased vehicle loads.

The front coilovers feature an adjustable threaded spring perch that accommodates additional weight and supports maximum suspension clearance. The listed lift height is based on a vehicle carrying full front and rear weight, while the adjustment range spans from the lowest to the highest coilover setting. HD springs are included for enhanced load support, and the system is also compatible with ERO Off-Road Race Springs. Each unit uses a 46mm piston, nitrogen-filled variable force valving, and a monotube design for consistent damping performance.

Anodized 6061-T6 billet aluminum coilover mounts provide durable construction, while individual dyno testing helps ensure matched performance and dependable operation. Eibach engineers, tests, and manufactures the Pro-Truck Coilover 2.0 system in the U.S.A. This automotive suspension system includes front and rear components and is supplied in two boxes. Professional installation and an alignment are recommended after installation. California Proposition 65 regulations may apply.

Key Product Specifications and Technical Data

• Suspension Type: Stage 2 front and rear coilover system
• Damper Design: Extended-travel monotube
• Piston Size: 46 mm

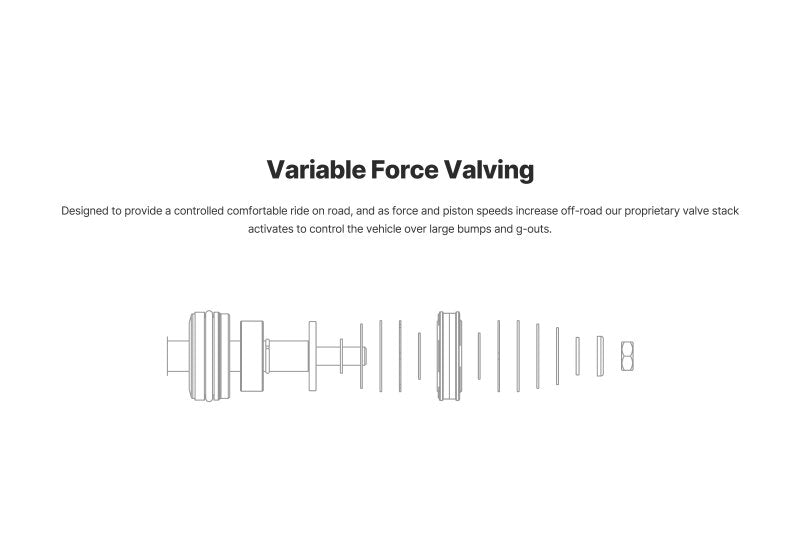

• Damping Technology: Nitrogen-filled variable force valving
• Spring Configuration: Heavy-duty springs included
• Adjustment Type: Front threaded spring perch adjustment
• Mounting Material: Anodized 6061-T6 billet aluminum
• Testing and Origin: Individually dyno tested and manufactured in the U.S.A.

What's Included

• Front Eibach Pro-Truck Coilover 2.0 assemblies with HD springs
• Rear Eibach Pro-Truck Coilover 2.0 assemblies with HD springs
• Installation components supplied by Eibach

Fitment: Fits 2021, 2022, and 2023 Ford Bronco models. Verify vehicle configuration and suspension compatibility before ordering.

Features:

• Extended-Travel Monotube Design: Provides consistent damping control and improved suspension response on pavement and off-road surfaces.
• Variable Force Valving: Balances controlled handling with suspension compliance for improved traction over uneven terrain.
• Adjustable Front Spring Perch: Accommodates increased vehicle loads and allows suspension height adjustment for added clearance.
• Heavy-Duty Stage 2 System: Includes front and rear Pro-Truck Coilover 2.0 assemblies with HD springs for balanced performance.

Fitments:
2021 Ford Bronco Badlands
2021 Ford Bronco Base
2021 Ford Bronco Big Bend
2021 Ford Bronco Black Diamond
2021 Ford Bronco First Edition
2021 Ford Bronco Outer Banks
2021 Ford Bronco Wildtrak
2022 Ford Bronco Badlands
2022 Ford Bronco Base
2022 Ford Bronco Big Bend
2022 Ford Bronco Black Diamond
2022 Ford Bronco Outer Banks
2022 Ford Bronco Wildtrak
2023 Ford Bronco Badlands
2023 Ford Bronco Base
2023 Ford Bronco Big Bend
2023 Ford Bronco Black Diamond
2023 Ford Bronco Outer Banks
2023 Ford Bronco Wildtrak
2024 Ford Bronco Badlands
2024 Ford Bronco Big Bend
2024 Ford Bronco Black Diamond
2024 Ford Bronco Outer Banks
2024 Ford Bronco Wildtrak

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Number Of Boxes: 2
Regular Stock: t
Units Per Sku: 1
