Eibach Pro-Truck Lift Kit System Coilover Stage 2R for 2019-2020 Ram 1500 V8 2WD - E86-27-011-03-22

Developed for the trail, the Eibach PRO-TRUCK-LIFT Stage 2R is made to handle the toughest terrain. Combining the adjustability of our PRO-TRUCK Coilover 2.0 up front with the consistent performance of our PRO-TRUCK Reservoir damper out back, the Stage 2R delivers superb damping control and comfort no matter what you throw at it.

• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Pro-Truck Reservoir Sport Shocks + Pro-Lift-Kit Springs
• Height Adjustable Front Coilover and External Reservoir Rear Shocks for Increased Off-Road Performance
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

The Eibach Pro-Truck Lift Kit System Coilover Stage 2R is engineered for 2019-2020 Ram 1500 V8 2WD trucks that demand improved ground clearance, suspension control, and off-road capability. This Stage 2R system combines height-adjustable Eibach Pro-Truck Coilover 2.0 units in the front with Pro-Truck Reservoir Sport Shocks and Pro-Lift-Kit Springs in the rear.

Designed and manufactured by Eibach in the U.S.A., the system uses anodized 6061-T6 billet aluminum coilover mounts, a 46 mm piston, monotube construction, and nitrogen-filled variable-force valving. The result is controlled damping performance and a comfortable ride across changing terrain. External rear reservoirs help maintain consistent shock performance during demanding off-road use, while the adjustable front coilovers allow suspension height to be tailored to the vehicle and driving requirements.

Each damper is individually dyno tested for matched performance and reliability. A heavy-duty bushing system is also cycle tested to support long-term durability. This two-box kit includes the components required for the Stage 2R configuration. Verify vehicle configuration, drivetrain, and application details before installation. The Eibach part number for this system is E86-27-011-03-22.

Fitment: Fits select 2019-2020 Ram 1500 models equipped with a V8 engine and 2WD. Professional installation is recommended, followed by an alignment and suspension clearance inspection.

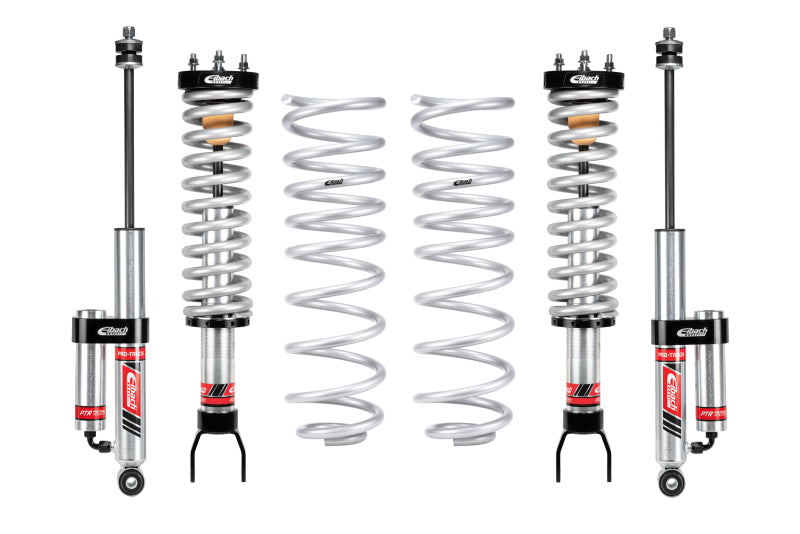

What's Included: Front Pro-Truck Coilover 2.0 assemblies, rear Pro-Truck Reservoir Sport Shocks, Pro-Lift-Kit Springs, and required Stage 2R suspension components.

Features:

• Height-adjustable front coilovers provide adaptable ride height and improved off-road suspension performance.
• External reservoir rear shocks help maintain consistent damping control during demanding trail and off-road driving.
• Monotube dampers with a 46 mm piston and nitrogen-filled variable-force valving deliver controlled suspension response.
• 6061-T6 billet aluminum coilover mounts and heavy-duty bushings support durability under severe-use conditions.

Fitments:
2019 Ram 1500 Big Horn
2019 Ram 1500 Laramie
2019 Ram 1500 Laramie Longhorn
2019 Ram 1500 Limited
2019 Ram 1500 Lone Star
2019 Ram 1500 Rebel
2019 Ram 1500 Tradesman
2020 Ram 1500 Big Horn
2020 Ram 1500 Laramie
2020 Ram 1500 Laramie Longhorn
2020 Ram 1500 Limited
2020 Ram 1500 Lone Star
2020 Ram 1500 Rebel
2020 Ram 1500 Tradesman
2021 Ram 1500 Big Horn
2021 Ram 1500 Laramie
2021 Ram 1500 Laramie Longhorn
2021 Ram 1500 Limited
2021 Ram 1500 Limited Longhorn
2021 Ram 1500 Lone Star
2021 Ram 1500 Longhorn
2021 Ram 1500 Rebel
2021 Ram 1500 Tradesman
2022 Ram 1500 Big Horn
2022 Ram 1500 Laramie
2022 Ram 1500 Limited
2022 Ram 1500 Limited Longhorn
2022 Ram 1500 Lone Star
2022 Ram 1500 Rebel
2022 Ram 1500 Tradesman
2023 Ram 1500 Big Horn
2023 Ram 1500 Laramie
2023 Ram 1500 Limited
2023 Ram 1500 Limited Longhorn
2023 Ram 1500 Lone Star
2023 Ram 1500 Rebel
2023 Ram 1500 Tradesman
2024 Ram 1500 Big Horn
2024 Ram 1500 HFE
2024 Ram 1500 Laramie
2024 Ram 1500 Limited
2024 Ram 1500 Limited Longhorn
2024 Ram 1500 Lone Star
2024 Ram 1500 Rebel
2024 Ram 1500 Tradesman
2024 Ram 1500 TRX

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Number Of Boxes: 2
Regular Stock: t
Units Per Sku: 1
