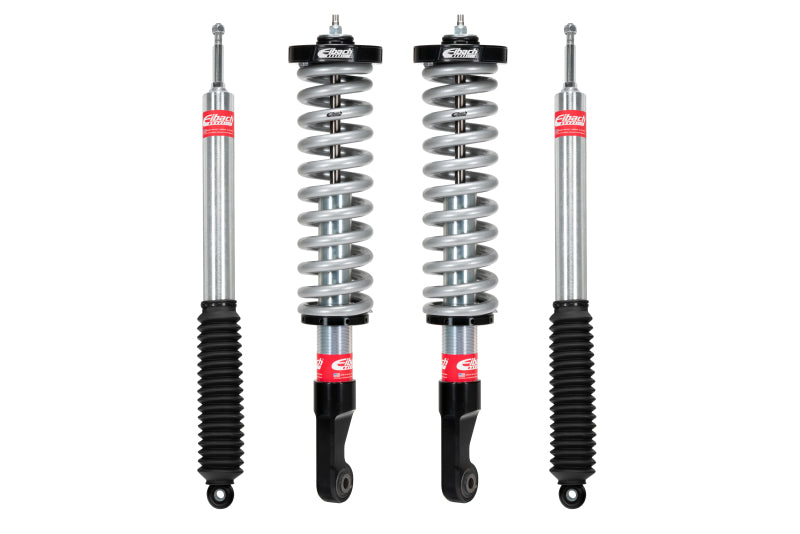

Eibach PRO-TRUCK-LIFT Stage 2 Coilover and Shock System E86-82-067-01-22 for 2016-2017 Toyota Tundra 4WD

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

The Eibach PRO-TRUCK-LIFT Stage 2 System is a performance suspension upgrade engineered for 2016-2017 Toyota Tundra 4WD applications. This system combines adjustable front 2.0 coilovers with rear lift springs and sport shocks to improve suspension control, ride quality, and off-road capability. It retains the durable rear components used in the Stage 1 system while adding front-end adjustability for increased vehicle loads and improved clearance.

The front coilovers use Eibach's extended-travel monotube design with nitrogen-filled variable-force valving. This tuning provides controlled handling during on-road driving while allowing the suspension to remain compliant over uneven terrain for improved traction. Adjustable threaded spring perches allow ride height and spring preload to be tailored for additional equipment or changing load requirements. The coilovers are equipped with ERO Off-Road Race Springs and are compatible with Eibach race spring upgrades.

• Front adjustable threaded spring perches accommodate increased loads and maximize clearance.
• Anodized 6061-T6 billet aluminum coilover mounts provide durable support in demanding conditions.
• 46 mm pistons, monotube construction, and nitrogen-filled variable-force valving enhance damping control.
• Individually dyno tested and cycle tested for matched performance, reliability, and bushing durability.

The Eibach PRO-TRUCK-LIFT Stage 2 system includes front Pro-Truck Coilover 2.0 units, rear lift springs, rear sport shocks, and an air-bag-delete configuration. It is engineered, tested, and manufactured by Eibach in the United States. Fitment includes 2016 and 2017 Toyota Tundra 4WD models; verify the specific cab, engine, trim, and suspension configuration before installation.

What's Included: Front adjustable Pro-Truck Coilover 2.0 assemblies, rear lift springs, rear sport shocks, air-bag-delete components, and supporting installation hardware as supplied by Eibach.

Features:

• Adjustable Front Spring Perch: Allows suspension adjustment to accommodate increased loads and maximize available clearance.
• Extended-Travel Monotube Coilovers: Provide improved suspension movement, controlled damping, and enhanced off-road traction.
• Durable Coilover Construction: Uses anodized 6061-T6 billet aluminum mounts, 46 mm pistons, and nitrogen-filled variable-force valving.
• Matched Stage 2 System: Combines front Pro-Truck Coilover 2.0 units with rear lift springs and sport shocks for balanced performance.

Fitments:
2007 Toyota Tundra Base
2007 Toyota Tundra Limited
2007 Toyota Tundra SR5
2008 Toyota Tundra Base
2008 Toyota Tundra Limited
2008 Toyota Tundra SR5
2009 Toyota Tundra Base
2009 Toyota Tundra Limited
2009 Toyota Tundra SR5
2010 Toyota Tundra Base
2010 Toyota Tundra Limited
2010 Toyota Tundra Platinum
2010 Toyota Tundra SR5
2011 Toyota Tundra Base
2011 Toyota Tundra Limited
2011 Toyota Tundra Platinum
2011 Toyota Tundra SR5
2012 Toyota Tundra Base
2012 Toyota Tundra Limited
2012 Toyota Tundra Platinum
2013 Toyota Tundra Base
2013 Toyota Tundra Limited
2013 Toyota Tundra Platinum
2014 Toyota Tundra 1794 Edition
2014 Toyota Tundra Limited
2014 Toyota Tundra Platinum
2014 Toyota Tundra SR
2014 Toyota Tundra SR5
2015 Toyota Tundra 1794 Edition
2015 Toyota Tundra Limited
2015 Toyota Tundra Platinum
2015 Toyota Tundra SR
2015 Toyota Tundra SR5
2015 Toyota Tundra TRD Pro
2016 Toyota Tundra 1794 Edition
2016 Toyota Tundra Limited
2016 Toyota Tundra Platinum
2016 Toyota Tundra SR
2016 Toyota Tundra SR5
2016 Toyota Tundra TRD Pro
2017 Toyota Tundra 1794 Edition
2017 Toyota Tundra Limited
2017 Toyota Tundra Platinum
2017 Toyota Tundra SR
2017 Toyota Tundra SR5
2017 Toyota Tundra TRD Pro
2018 Toyota Tundra 1794 Edition
2018 Toyota Tundra Limited
2018 Toyota Tundra Platinum
2018 Toyota Tundra SR
2018 Toyota Tundra SR5
2019 Toyota Tundra 1794 Edition
2019 Toyota Tundra Limited
2019 Toyota Tundra Platinum
2019 Toyota Tundra SR
2019 Toyota Tundra SR5
2019 Toyota Tundra TRD Pro
2020 Toyota Tundra 1794 Edition
2020 Toyota Tundra Limited
2020 Toyota Tundra Platinum
2020 Toyota Tundra SR
2020 Toyota Tundra SR5
2020 Toyota Tundra TRD Pro
2021 Toyota Tundra 1794 Edition
2021 Toyota Tundra Limited
2021 Toyota Tundra Nightshade
2021 Toyota Tundra Platinum
2021 Toyota Tundra SR
2021 Toyota Tundra SR5
2021 Toyota Tundra Trail
2021 Toyota Tundra TRD Pro

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
