Eibach Pro-Truck Lift Stage 2 Coilover System E86-27-011-05-22 for 2025 Ram 1500

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails. Exact lift heights may vary depending on exact packages and weight distributions of vehicle

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.

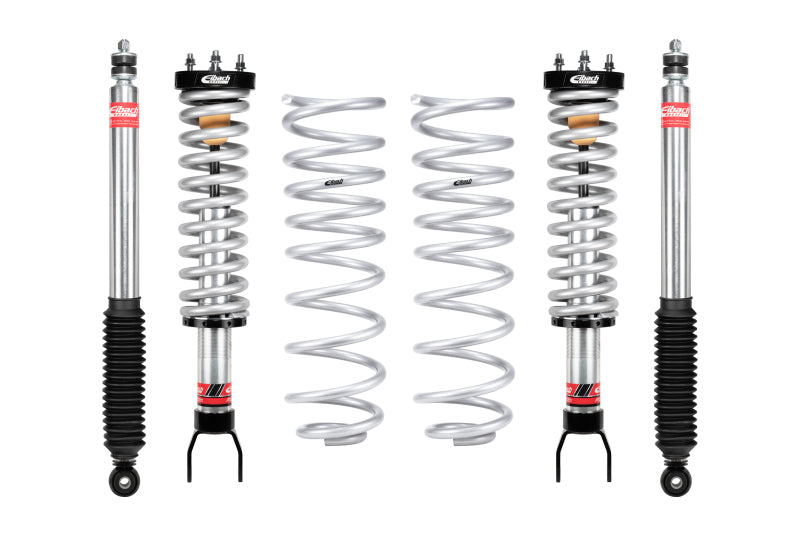

• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks + Pro-Lift-Kit Springs
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

The Eibach Pro-Truck Lift Stage 2 System, part number E86-27-011-05-22, is engineered for the 2025 Ram 1500. This suspension package combines adjustable front Pro-Truck-Coilover 2.0 coilovers with rear sport shocks and Pro-Lift-Kit springs to improve ride control, trail traction, and load adaptability. The front coilovers use an extended-travel monotube design with nitrogen-filled variable-force valving, providing controlled handling during on-road driving while maintaining compliance over uneven terrain.

Adjustable threaded spring perches allow the front suspension to accommodate increased loads and provide additional clearance. The system is equipped with Eibach Off-Road Race Springs and is compatible with ERO Off-Road Race Springs. Anodized 6061-T6 billet aluminum coilover mounts, a 46 mm piston, and a heavy-duty bushing system support durability in demanding off-road conditions. Each unit is individually dyno tested for matched performance and reliability, while the bushing system is cycle tested for long-term service.

The Stage 2 system shares its rear components with Eibach’s Stage 1 system, including lift springs, sport shocks, and an airbag delete configuration, while adding greater adjustability at the front. Exact lift height may vary according to the vehicle’s specific package, equipment, and weight distribution. The system is engineered, tested, and manufactured by Eibach in the United States. Fitment includes the 2025 Ram 1500; verify drivetrain, cab, trim, and factory suspension configuration before ordering.

What's Included: Front Pro-Truck-Coilover 2.0 coilovers, rear sport shocks, Pro-Lift-Kit rear springs, airbag delete components, and installation hardware as supplied by Eibach. The kit is packaged in two boxes.

Features:

• Adjustable Front Spring Perch: Threaded adjustment accommodates increased loads and helps provide maximum suspension clearance.
• Extended-Travel Monotube Coilovers: Nitrogen-filled variable-force valving delivers controlled on-road handling and improved trail compliance.
• Durable Billet Aluminum Mounts: Anodized 6061-T6 coilover mounts and a 46 mm piston are designed for demanding off-road use.
• Matched and Tested Performance: Each unit is individually dyno tested, while the heavy-duty bushing system is cycle tested for reliability.

Fitments:
2025 Ram 1500 Big Horn
2025 Ram 1500 Laramie
2025 Ram 1500 Limited
2025 Ram 1500 Limited Longhorn
2025 Ram 1500 Lone Star
2025 Ram 1500 Rebel
2025 Ram 1500 RHO
2025 Ram 1500 Special Service
2025 Ram 1500 Tradesman
2025 Ram 1500 Tradesman HFE
2025 Ram 1500 Tungsten
2025 Ram 1500 Warlock
2026 Ram 1500 Big Horn
2026 Ram 1500 Express
2026 Ram 1500 Laramie
2026 Ram 1500 Limited
2026 Ram 1500 Limited Longhorn
2026 Ram 1500 Lone Star
2026 Ram 1500 Rebel
2026 Ram 1500 RHO
2026 Ram 1500 Special Service
2026 Ram 1500 Tradesman
2026 Ram 1500 Tungsten
2026 Ram 1500 Warlock
