Eibach Pro-Truck-Lift Stage 2 Lift Kit for 2025 Toyota 4Runner TRD 2.4L Turbo Hybrid 4WD, E86-82-109-01-22

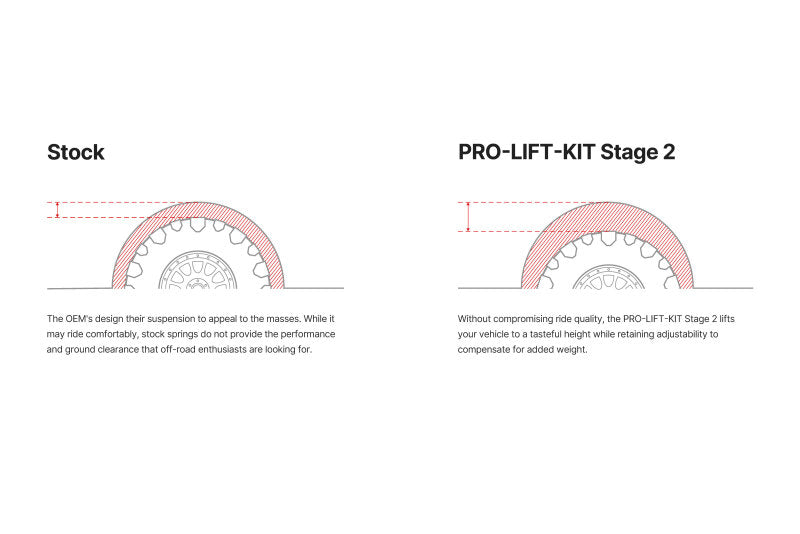

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails. Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

The Eibach Pro-Truck-Lift Stage 2 system is engineered for the 2025 Toyota 4Runner TRD with the 2.4L Turbo Hybrid engine and four-wheel drive. This complete suspension upgrade combines adjustable front Pro-Truck-Coilover 2.0 units with rear lift springs, sport shocks, and an air-bag delete configuration. The result is improved ride control, ground clearance, and suspension performance for both daily driving and off-road use.

The front coilovers use Eibach’s extended-travel monotube design with nitrogen-filled variable-force valving. This setup provides controlled handling during on-road travel while maintaining compliance and traction over uneven terrain. The front ride height is preset to level with the original-equipment rear spring; additional preload may be required when used with Eibach rear springs. The adjustable threaded spring perch also helps accommodate increased loads and maximize available clearance.

Each coilover features an anodized 6061-T6 billet aluminum mount, a 46 mm piston, and Eibach Off-Road Race Springs compatibility. Components are individually dyno tested for matched performance and reliability, while the heavy-duty bushing system is cycle tested for durability. The system is engineered, tested, and manufactured by Eibach in the USA. This kit fits the 2025 Toyota 4Runner TRD 2.4L Turbo Hybrid 4WD and includes components supplied in two boxes.

Key Product Specifications & Technical Data

• Brand: Eibach
• Part Number: E86-82-109-01-22
• System Type: Pro-Truck-Lift Stage 2 suspension lift system
• Vehicle Application: 2025 Toyota 4Runner TRD
• Engine and Drivetrain: 2.4L Turbo Hybrid, 4WD
• Front Suspension: Adjustable Pro-Truck-Coilover 2.0 with extended travel
• Damper Design: Monotube with nitrogen-filled variable-force valving
• Rear Suspension: Lift springs, sport shocks, and air-bag delete components

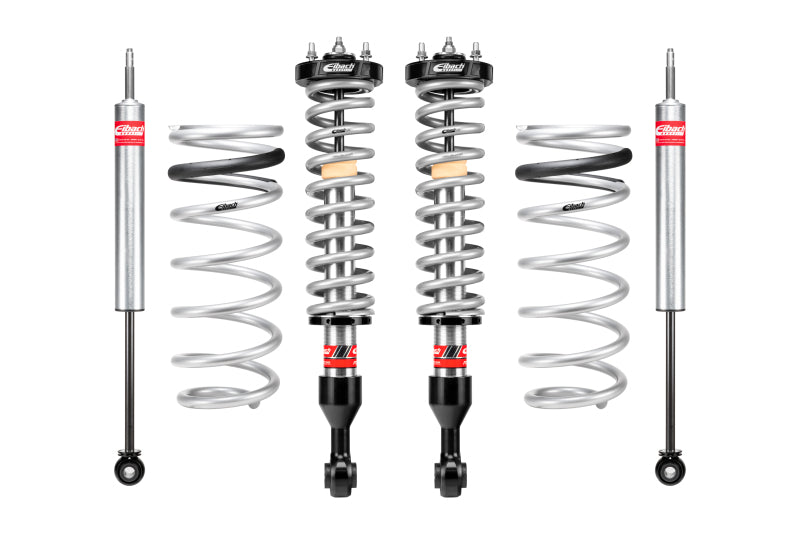

What's Included

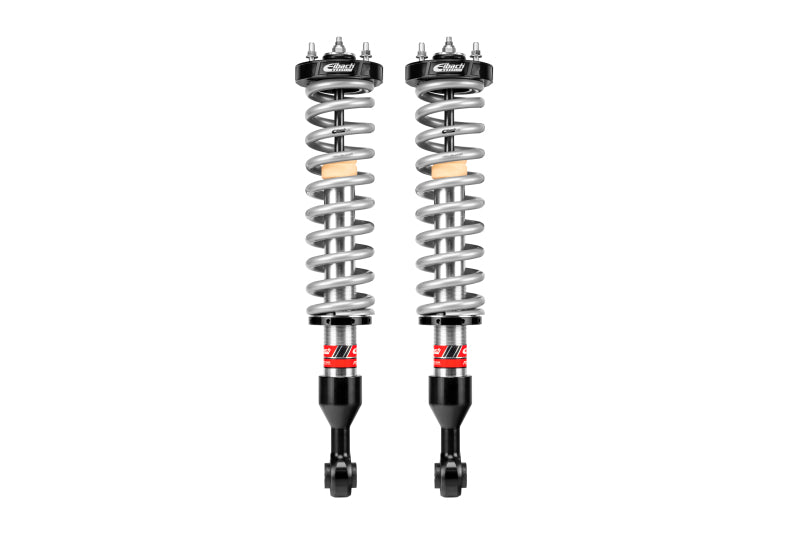

• Front Pro-Truck-Coilover 2.0 assemblies

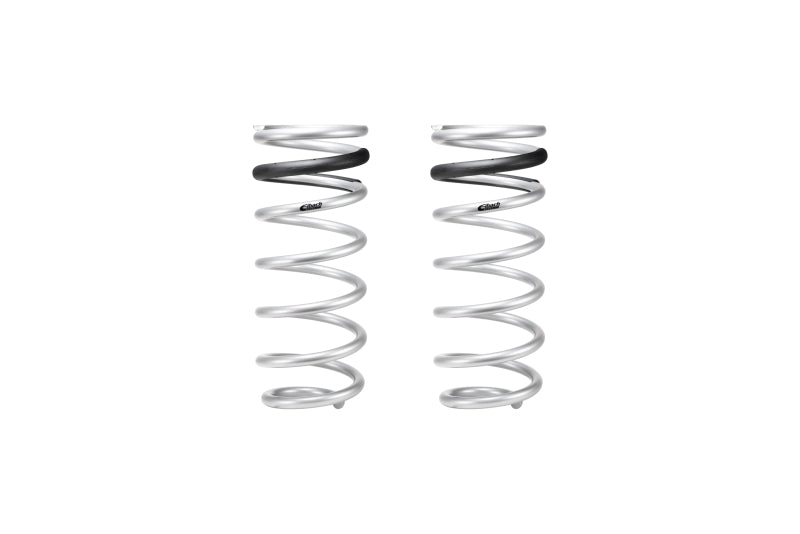

• Rear lift springs

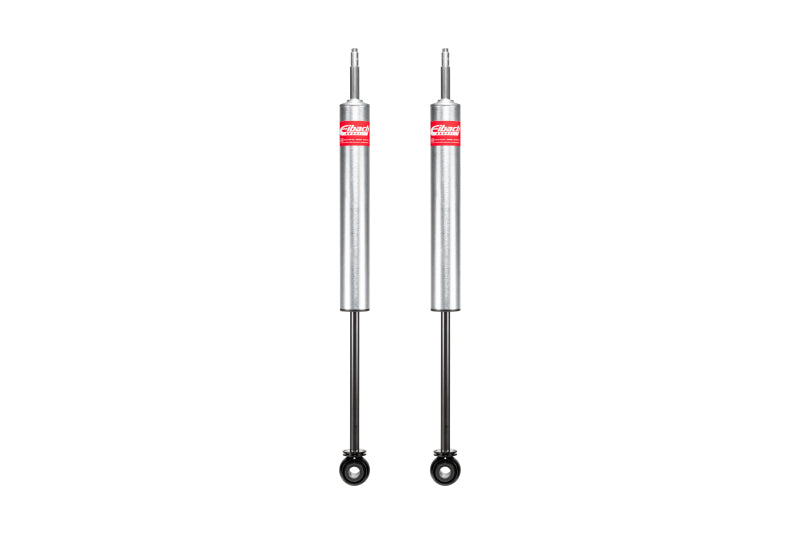

• Rear sport shocks
• Air-bag delete components
• Installation components supplied in two boxes

Features:

• Adjustable Front Spring Perch: Threaded adjustment accommodates increased loads and helps maximize suspension clearance.
• Extended-Travel Coilover Design: Pro-Truck-Coilover 2.0 units improve control on pavement while maintaining compliance and traction on trails.
• Monotube Variable-Force Valving: Nitrogen-filled damping technology delivers consistent suspension performance across changing terrain and driving conditions.
• Durable Eibach Construction: Anodized 6061-T6 billet aluminum mounts, 46 mm pistons, dyno-tested assemblies, and cycle-tested heavy-duty bushings support long-term reliability.

Fitments:
2025 Toyota 4Runner TRD Off-Road

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Number Of Boxes: 2
Units Per Sku: 1
