Eibach Pro-Truck Lift Stage 2 Suspension System for 2005-2013 Toyota Tacoma 2WD, E86-82-007-03-22

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Upgrade your 2005-2013 Toyota Tacoma 2WD with the Eibach Pro-Truck Lift Stage 2 Suspension System, part number E86-82-007-03-22. This performance suspension package combines adjustable front Pro-Truck Coilover 2.0 units with rear lift springs and sport shocks to improve vehicle control, ride quality, and off-road capability. The system is designed for drivers who need increased suspension adjustability and dependable performance during both daily driving and trail use.

The front coilovers use an extended-travel monotube design with nitrogen-filled variable-force valving. This configuration helps provide controlled handling on paved roads while maintaining compliance and traction over uneven terrain. An adjustable threaded spring perch allows the suspension to accommodate increased loads and provides additional clearance for demanding applications. The coilovers are also compatible with Eibach ERO Off-Road Race Springs.

• Front Adjustable Coilover Perch: Allows spring-height adjustment to accommodate increased loads and maximize clearance.
• Monotube Coilover Construction: Uses anodized 6061-T6 billet aluminum mounts, a 46 mm piston, and nitrogen-filled variable-force valving for consistent damping control.
• Matched Performance Testing: Each unit is individually dyno tested, while the heavy-duty bushing system is cycle tested for reliability.
• Complete Stage 2 Configuration: Includes Pro-Truck Coilover 2.0 front units, rear lift springs, rear sport shocks, and an air-bag delete configuration.

The Eibach Pro-Truck Lift Stage 2 system is engineered, tested, and manufactured in the USA. It fits select 2005-2013 Toyota Tacoma 2WD models, including the 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, and 2013 model years. Professional installation is recommended, and vehicle alignment should be checked after installation.

Key Product Specifications & Technical Data

• Brand: Eibach
• Part Number: E86-82-007-03-22
• Product Type: Stage 2 suspension lift system
• Vehicle Application: Toyota Tacoma 2WD
• Model Years: 2005-2013
• Front Suspension: Pro-Truck Coilover 2.0 units
• Rear Suspension: Lift springs and sport shocks
• Damper Design: Extended-travel monotube with variable-force valving

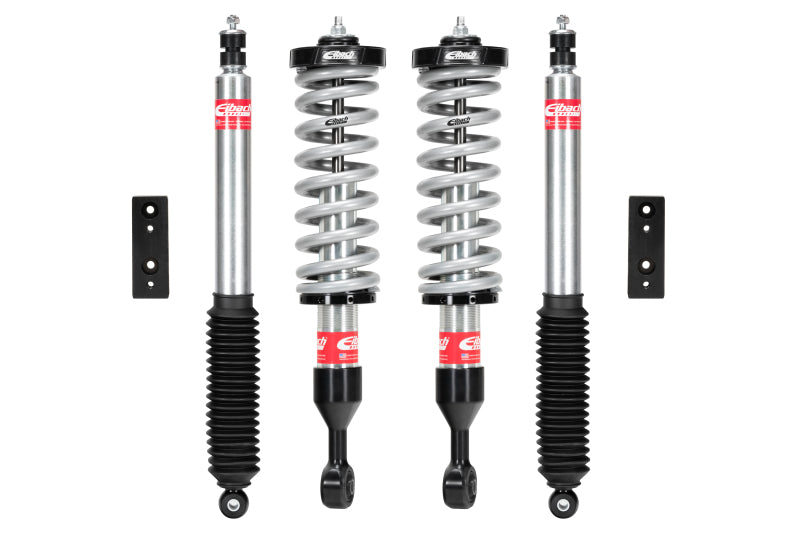

What's Included

Front Pro-Truck Coilover 2.0 assemblies, rear lift springs, rear sport shocks, and the required air-bag-delete configuration for the Stage 2 system.

Features:

• Front adjustable threaded spring perch accommodates increased loads and helps maximize clearance.
• Anodized 6061-T6 billet aluminum coilover mounts, 46 mm piston, and nitrogen-filled variable-force valving support controlled performance.
• Individually dyno tested for matched performance and reliability, with heavy-duty bushings cycle tested.
• Stage 2 package includes front Pro-Truck Coilover 2.0 units, rear lift springs, rear sport shocks, and air-bag delete components.
• Engineered, tested, and manufactured by Eibach in the USA.

Fitments:
2005 Toyota Tacoma Base
2005 Toyota Tacoma Pre Runner
2005 Toyota Tacoma X-Runner
2006 Toyota Tacoma Base
2006 Toyota Tacoma Pre Runner
2006 Toyota Tacoma X-Runner
2007 Toyota Tacoma Base
2007 Toyota Tacoma Pre Runner
2007 Toyota Tacoma X-Runner
2008 Toyota Tacoma Base
2008 Toyota Tacoma Pre Runner
2008 Toyota Tacoma X-Runner
2009 Toyota Tacoma Base
2009 Toyota Tacoma Pre Runner
2009 Toyota Tacoma X-Runner
2010 Toyota Tacoma Base
2010 Toyota Tacoma Pre Runner
2010 Toyota Tacoma X-Runner
2011 Toyota Tacoma Base
2011 Toyota Tacoma Pre Runner
2011 Toyota Tacoma X-Runner
2012 Toyota Tacoma Base
2012 Toyota Tacoma Pre Runner
2012 Toyota Tacoma X-Runner
2013 Toyota Tacoma Base
2013 Toyota Tacoma Pre Runner
2013 Toyota Tacoma X-Runner
2014 Toyota Tacoma Base
2014 Toyota Tacoma Pre Runner
2015 Toyota Tacoma Base
2015 Toyota Tacoma Pre Runner
