Eibach PRO-TRUCK-LIFT Stage 2R Lift Kit for 2024-2025 Ford Ranger 4WD, Part E86-35-062-04-22

Developed for the trail, the Eibach PRO-TRUCK-LIFT Stage 2R is made to handle the toughest terrain. Combining the adjustability of our PRO-TRUCK Coilover 2.0 up front with the consistent performance of our PRO-TRUCK Reservoir damper out back, the Stage 2R delivers superb damping control and comfort no matter what you throw at it. 2.7L V6 Ecoboost: Adjust lower spring perch to a preload of 115mm/4.5". Measure from the top of the bottom mount to the bottom of the spring perch.

• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Height Adjustable Front Coilover and External Reservoir Rear Shocks for Increased Off-Road Performance
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Pro-Truck Reservoir Sport Shocks
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Brief Description: The Eibach PRO-TRUCK-LIFT Stage 2R lift kit is engineered for 2024-2025 Ford Ranger 4WD models that demand improved off-road capability without sacrificing controlled on-road performance. This complete suspension system combines height-adjustable PRO-TRUCK Coilover 2.0 units at the front with PRO-TRUCK Reservoir Sport Shocks at the rear for enhanced damping control, ride comfort, and suspension performance across demanding terrain.

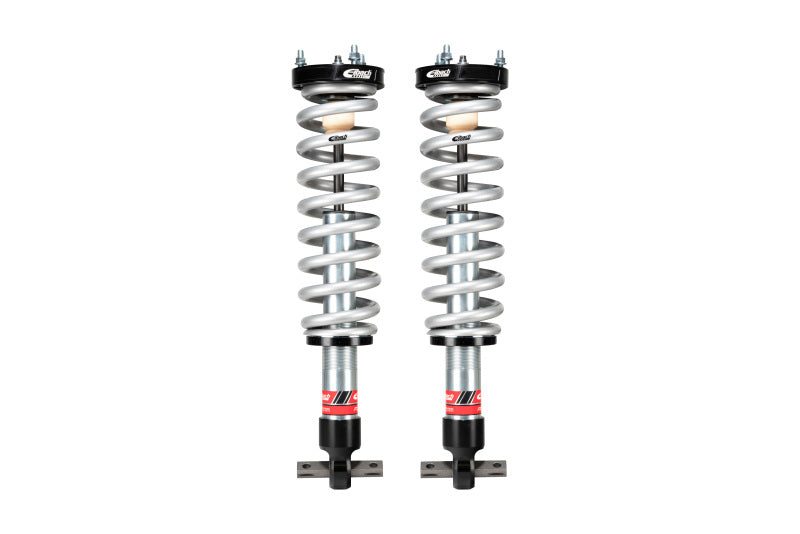

The front coilovers use anodized 6061-T6 billet aluminum mounts, a 46 mm piston, monotube construction, and nitrogen-filled variable-force valving. The external rear reservoirs help provide consistent shock performance during extended off-road use and demanding suspension cycles. Each unit is individually dyno tested for matched performance and reliability, while the heavy-duty bushing system is cycle tested for long-term durability. For the 2.7L V6 EcoBoost application, adjust the lower spring perch to a 4.5-inch preload, measured from the top of the bottom mount to the bottom of the spring perch.

Fitment: Designed to fit 2024 and 2025 Ford Ranger 4WD applications. Verify drivetrain, engine, and vehicle configuration before installation. This Eibach system is engineered, tested, and manufactured in the U.S.A.

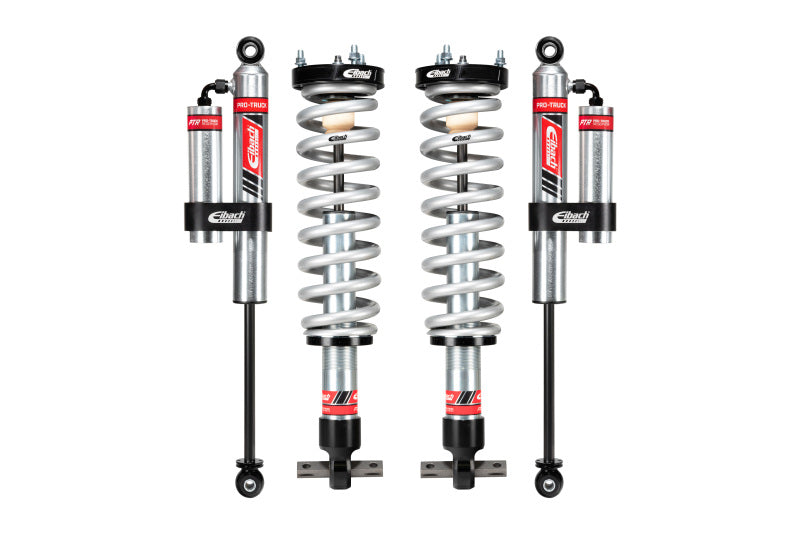

What's Included: Height-adjustable front PRO-TRUCK Coilover 2.0 assemblies, rear PRO-TRUCK Reservoir Sport Shocks, and the components required for the Stage 2R suspension system. The kit is packaged in two boxes.

Features:

• Height-adjustable front coilovers allow suspension ride height and preload adjustment for improved off-road setup flexibility.

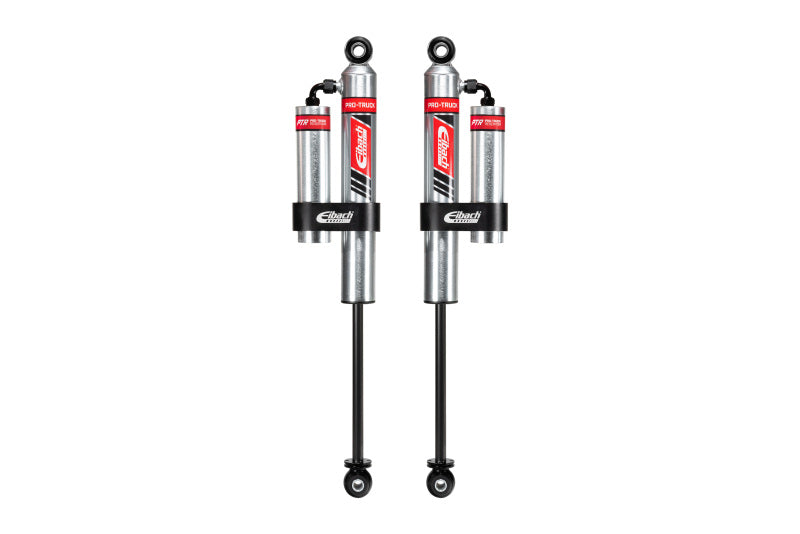

• External reservoir rear shocks help maintain consistent damping performance during extended trail driving and demanding terrain.
• Monotube shock design with a 46 mm piston and nitrogen-filled variable-force valving provides controlled suspension response and comfort.
• Individually dyno tested and equipped with heavy-duty, cycle-tested bushings for matched performance, reliability, and durability.

Fitments:
2024 Ford Ranger Lariat
2024 Ford Ranger XL
2024 Ford Ranger XLT
2025 Ford Ranger Lariat
2025 Ford Ranger XL
2025 Ford Ranger XLT

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Number Of Boxes: 2
Regular Stock: t
Units Per Sku: 1
