Eibach Stage 2 Pro-Truck Coilover 2.0 Lift System E86-82-099-01-22 for 2023-2025 Toyota Sequoia 4WD

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails. Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks + Pro-Lift-Kit Springs
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Upgrade your 2023-2025 Toyota Sequoia 4WD with the Eibach Stage 2 Pro-Truck Coilover 2.0 Lift System, part number E86-82-099-01-22. This suspension system combines adjustable front coilovers with rear lift springs and sport shocks to improve ride control, ground clearance, and off-road capability while maintaining confident on-road handling.

The front 2.0 coilovers use Eibach’s extended-travel monotube design and variable-force valving to provide controlled handling during daily driving and compliance for improved trail traction. An adjustable threaded spring perch accommodates increased vehicle loads and helps maximize clearance. The front ride height is set out of the box to level with the original-equipment rear spring; additional preload is required to level the vehicle with Eibach rear springs.

Each coilover features an anodized 6061-T6 billet aluminum mount, a 46 mm piston, and nitrogen-filled variable-force valving. Components are individually dyno tested for matched performance and reliability, while the heavy-duty bushing system is cycle tested for durability. The Stage 2 package includes Pro-Truck-Coilover 2.0 front coilovers, rear sport shocks, Pro-Lift-Kit rear springs, and an airbag-delete configuration. The system is engineered, tested, and manufactured by Eibach in the United States.

Fitment: Fits 2023, 2024, and 2025 Toyota Sequoia 4WD applications. Confirm vehicle configuration and suspension requirements before installation. This product may contain chemicals including lead or lead compounds identified under California Proposition 65.

What's Included

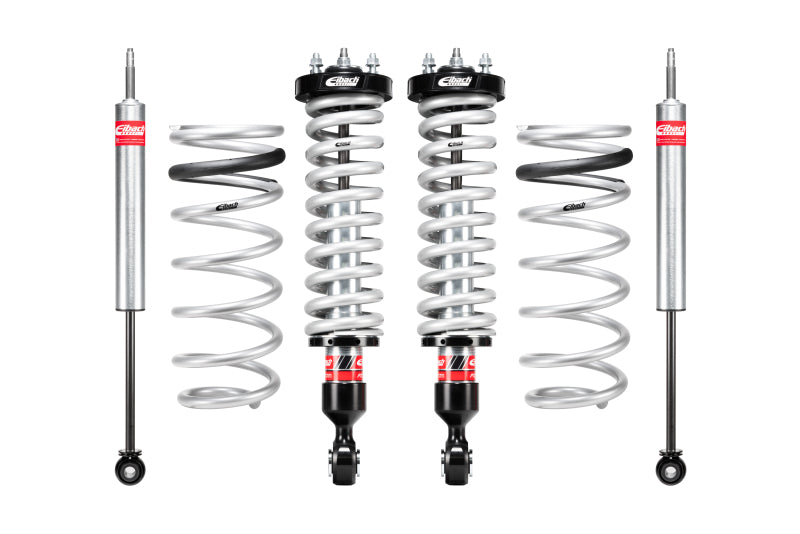

• Front Pro-Truck-Coilover 2.0 adjustable coilovers
• Rear sport shocks
• Pro-Lift-Kit rear springs
• Airbag-delete components
• Installation components supplied by Eibach

Features:

• Adjustable Front Spring Perch: Accommodates increased loads, supports ride-height adjustment, and helps maximize suspension clearance.
• Extended-Travel Monotube Coilovers: Deliver improved control on pavement and compliance for enhanced traction on trails.
• 6061-T6 Billet Aluminum Mounts: Provide a durable, corrosion-resistant mounting structure for demanding driving conditions.
• Matched Stage 2 Suspension System: Combines front Pro-Truck-Coilover 2.0 coilovers, rear sport shocks, Pro-Lift-Kit springs, and an airbag-delete setup.

Fitments:
2023 Toyota Sequoia Capstone
2023 Toyota Sequoia Limited
2023 Toyota Sequoia Platinum
2023 Toyota Sequoia SR5
2023 Toyota Sequoia TRD Pro
2024 Toyota Sequoia Capstone
2024 Toyota Sequoia Limited
2024 Toyota Sequoia Platinum
2024 Toyota Sequoia SR5
2024 Toyota Sequoia TRD Pro
2025 Toyota Sequoia 1794 Edition
2025 Toyota Sequoia Capstone
2025 Toyota Sequoia Limited
2025 Toyota Sequoia Platinum
2025 Toyota Sequoia SR5
2025 Toyota Sequoia TRD Pro
2026 Toyota Sequoia 1794 Edition
2026 Toyota Sequoia Capstone
2026 Toyota Sequoia Limited
2026 Toyota Sequoia Platinum
2026 Toyota Sequoia SR5
2026 Toyota Sequoia TRD Pro
