Eibach Stage 2 Pro-Truck Lift Kit E86-82-108-01-22 for 2024-2026 Toyota Land Cruiser

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails. Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

The Eibach Stage 2 Pro-Truck Lift Kit is engineered for 2024-2026 Toyota Land Cruiser models equipped with the 2.4L turbo hybrid powertrain. This suspension system combines front Pro-Truck-Coilover 2.0 units with rear lift springs and sport shocks to improve ground clearance, handling, and off-road capability while maintaining confident on-road manners. The front coilovers use an extended-travel monotube design with variable-force valving, providing controlled response during daily driving and compliance for improved traction on uneven terrain.

Front ride height is preset to level with the original-equipment rear spring. Additional preload may be required to achieve a level stance when used with Eibach rear springs. Adjustable threaded spring perches allow the front suspension to accommodate increased loads and provide additional clearance. The coilovers are equipped with Eibach ERO Off-Road Race Springs and are compatible with ERO spring configurations.

Each Eibach E86-82-108-01-22 system features anodized 6061-T6 billet aluminum coilover mounts, a 46 mm piston, nitrogen-filled variable-force valving, and heavy-duty bushings. Components are individually dyno tested for matched performance and reliability, while the bushing system is cycle tested for durability. The system is engineered, tested, and manufactured by Eibach in the United States. Fitment includes 2024, 2025, and 2026 Toyota Land Cruiser SUV applications with the 2.4L turbo hybrid engine.

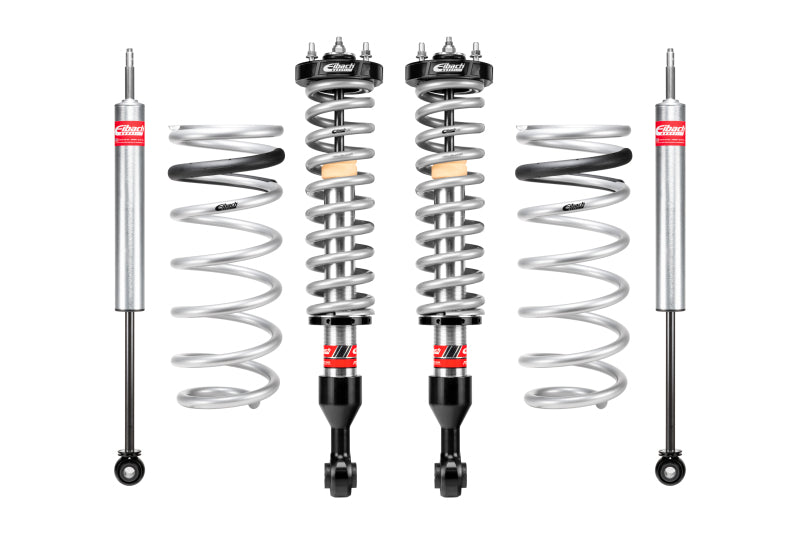

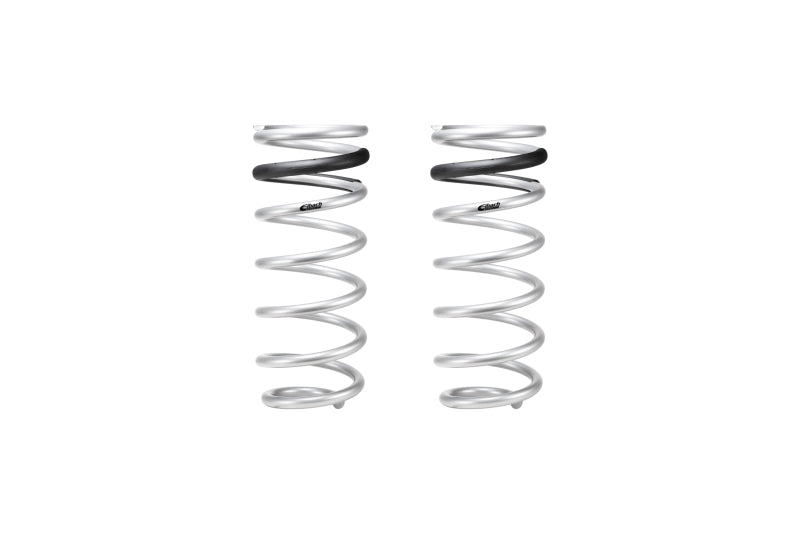

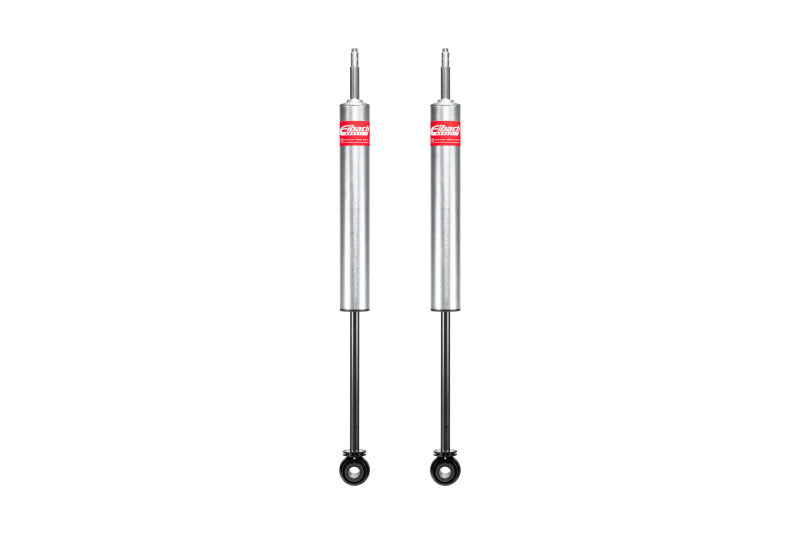

What's Included: Front Pro-Truck-Coilover 2.0 coilovers, rear lift springs, rear sport shocks, and air-bag-delete components. The kit is supplied in two boxes and is intended as a complete Stage 2 suspension upgrade.

Features:

• Adjustable Front Spring Perch: Threaded adjustment accommodates increased loads, supports ride-height tuning, and maximizes available clearance.

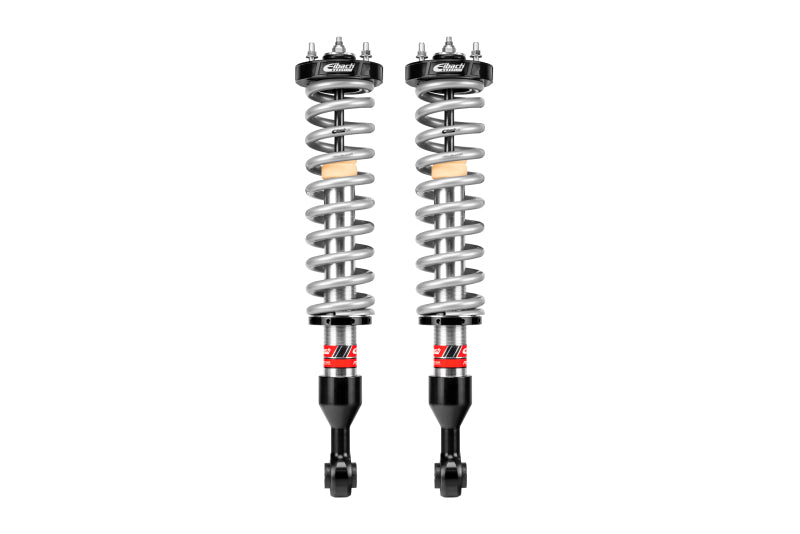

• Extended-Travel Coilover Design: Front 2.0 coilovers provide controlled suspension movement for improved trail traction and capable on-road handling.
• Monotube Variable-Force Valving: Nitrogen-filled dampers with a 46 mm piston deliver responsive control across changing terrain and driving conditions.
• Complete Stage 2 Suspension System: Combines front Pro-Truck-Coilover 2.0 units with rear lift springs, rear sport shocks, and air-bag-delete components.

Fitments:
2024 Toyota Land Cruiser 1958
2024 Toyota Land Cruiser Base
2024 Toyota Land Cruiser First Edition
2025 Toyota Land Cruiser 1958
2025 Toyota Land Cruiser Base
2026 Toyota Land Cruiser 1958
2026 Toyota Land Cruiser Base

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Number Of Boxes: 2
Units Per Sku: 1
