Eibach Stage 2 Pro-Truck Lift Kit for 2007-2014 Toyota Sequoia 5.7L 4WD, Part E86-82-103-01-22

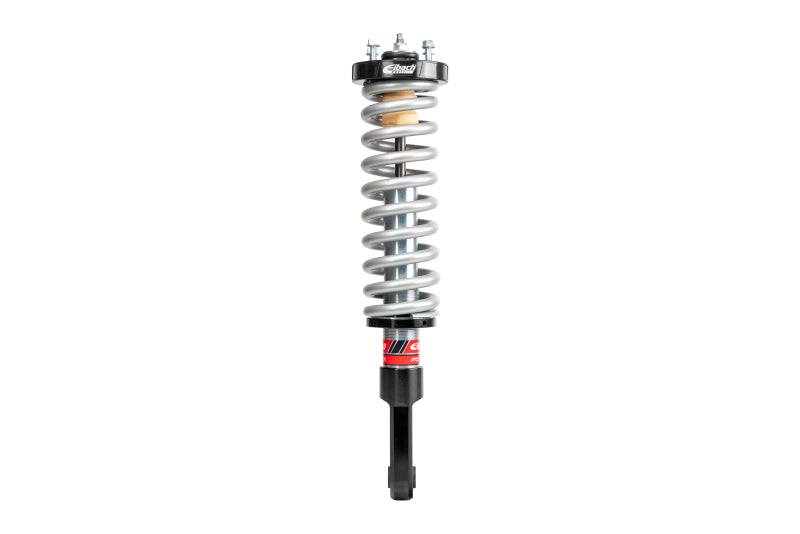

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails. Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.

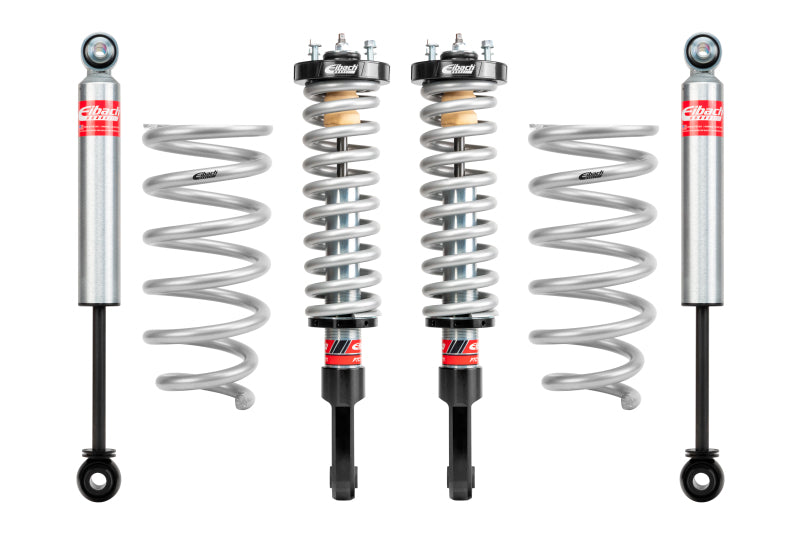

• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks + Pro-Lift-Kit Springs
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

The Eibach PRO-TRUCK-LIFT Stage 2 System is engineered for Toyota Sequoia owners seeking improved ground clearance, suspension control, and off-road capability without sacrificing on-road comfort. Part E86-82-103-01-22 combines front Pro-Truck-Coilover 2.0 units with rear sport shocks and Pro-Lift-Kit springs to provide a balanced suspension upgrade for 2007-2014 Toyota Sequoia 5.7L 4WD applications.

The front extended-travel monotube coilovers use variable-force valving to deliver controlled handling during daily driving while maintaining suspension compliance and traction on uneven terrain. The threaded spring perch allows adjustment for increased vehicle loads and additional clearance. Front ride height is preset to level with the original-equipment rear spring; additional preload may be required to level the vehicle with Eibach rear springs.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's, Rear Sport Shocks, and Pro-Lift-Kit Springs.
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

The kit fits 2007, 2008, 2009, 2010, 2011, 2012, 2013, and 2014 Toyota Sequoia models equipped with the 5.7L engine and four-wheel drive. It is supplied in two boxes and is intended as a complete suspension system for the listed application. Professional installation and alignment are recommended after installation.

Features:

• Adjustable front threaded spring perch helps accommodate increased loads, optimize clearance, and fine-tune ride height.
• Extended-travel 2.0 monotube coilovers with variable-force valving provide responsive control on pavement and improved traction on trails.
• 6061-T6 billet aluminum coilover mounts, 46mm pistons, nitrogen charging, and heavy-duty bushings support durability under demanding use.
• Complete Stage 2 suspension system includes front Pro-Truck-Coilover 2.0 units, rear sport shocks, and Pro-Lift-Kit springs for a balanced upgrade.

Fitments:
2008 Toyota Sequoia Limited
2008 Toyota Sequoia Platinum
2008 Toyota Sequoia SR5
2009 Toyota Sequoia Limited
2009 Toyota Sequoia Platinum
2009 Toyota Sequoia SR5
2010 Toyota Sequoia Limited
2010 Toyota Sequoia Platinum
2010 Toyota Sequoia SR5
2011 Toyota Sequoia Limited
2011 Toyota Sequoia Platinum
2011 Toyota Sequoia SR5
2012 Toyota Sequoia Limited
2012 Toyota Sequoia Platinum
2012 Toyota Sequoia SR5
2013 Toyota Sequoia Limited
2013 Toyota Sequoia Platinum
2013 Toyota Sequoia SR5
2014 Toyota Sequoia Limited
2014 Toyota Sequoia Platinum
2014 Toyota Sequoia SR5
2015 Toyota Sequoia Limited
2015 Toyota Sequoia Platinum
2015 Toyota Sequoia SR5
2016 Toyota Sequoia Limited
2016 Toyota Sequoia Platinum
2016 Toyota Sequoia SR5
2017 Toyota Sequoia Limited
2017 Toyota Sequoia Platinum
2017 Toyota Sequoia SR5
2018 Toyota Sequoia Limited
2018 Toyota Sequoia Platinum
2018 Toyota Sequoia SR5
2018 Toyota Sequoia TRD Sport
2019 Toyota Sequoia Limited
2019 Toyota Sequoia Platinum
2019 Toyota Sequoia SR5
2019 Toyota Sequoia TRD Sport
2020 Toyota Sequoia Limited
2020 Toyota Sequoia Platinum
2020 Toyota Sequoia SR5
2020 Toyota Sequoia TRD Pro
2020 Toyota Sequoia TRD Sport
2021 Toyota Sequoia Limited
2021 Toyota Sequoia Nightshade
2021 Toyota Sequoia Platinum
2021 Toyota Sequoia SR5
2021 Toyota Sequoia TRD Pro
2021 Toyota Sequoia TRD Sport
2022 Toyota Sequoia Limited
2022 Toyota Sequoia Nightshade
2022 Toyota Sequoia Platinum
2022 Toyota Sequoia SR5
2022 Toyota Sequoia TRD Pro
2022 Toyota Sequoia TRD Sport

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Number Of Boxes: 2
Units Per Sku: 1
