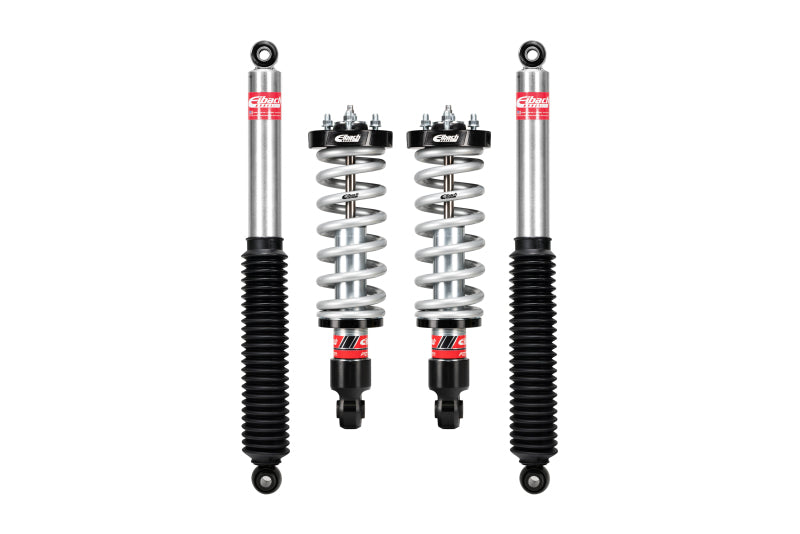

Eibach Stage 2 Pro-Truck-Lift System E86-63-045-01-22 for 2022-2026 Nissan Frontier

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails. Set to level out of the box for 4wd trucks, 2wd will need to be adjusted to be level with OE rear height.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Upgrade your Nissan Frontier’s suspension performance with the Eibach Stage 2 Pro-Truck-Lift System, part number E86-63-045-01-22. Designed for improved control, clearance, and trail capability, this system combines adjustable front Pro-Truck-Coilover 2.0 units with rear lift springs, sport shocks, and an air bag delete configuration. The system is preset to level four-wheel-drive trucks out of the box, while two-wheel-drive applications require front adjustment to match the original-equipment rear ride height.

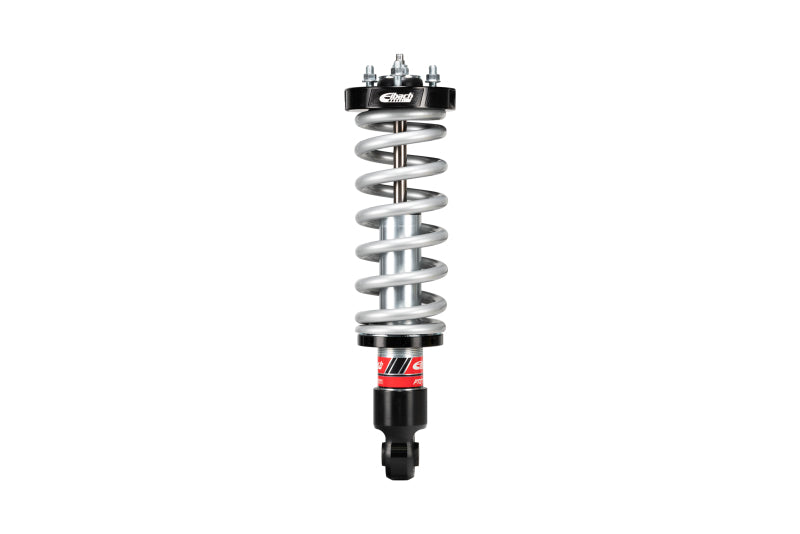

The front coilovers use an extended-travel monotube design with nitrogen-filled variable-force valving. This setup helps provide controlled handling during highway and on-road driving while maintaining suspension compliance for improved traction over uneven terrain. Adjustable threaded spring perches accommodate increased vehicle loads and allow additional tuning for clearance and ride-height requirements. The coilover assemblies are equipped with ERO Off-Road Race Springs and are compatible with additional ERO spring options.

• Front adjustable threaded spring perches support load and clearance adjustments.
• Anodized 6061-T6 billet aluminum coilover mounts provide durable mounting strength.
• 46 mm monotube pistons and nitrogen-filled variable-force valving deliver balanced control and trail compliance.
• Matched front coilovers and rear sport shocks create a coordinated Stage 2 suspension system.
• Each unit is individually dyno tested, while the heavy-duty bushing system is cycle tested for dependable performance.
• Engineered, tested, and manufactured by Eibach in the United States.

This Eibach suspension system fits 2022, 2023, 2024, 2025, and 2026 Nissan Frontier models. Professional installation is recommended, and vehicle alignment should be checked after installation. This product may contain materials subject to California Proposition 65.

Features:

• Adjustable front threaded spring perches accommodate increased loads and help maximize suspension clearance.
• Extended-travel Pro-Truck-Coilover 2.0 monotube dampers provide controlled on-road handling and improved trail traction.
• Nitrogen-filled variable-force valving and 46 mm pistons balance ride compliance with suspension control.
• Stage 2 configuration includes front coilovers, rear lift springs, rear sport shocks, and an air bag delete setup.

Fitments:
2022 Nissan Frontier PRO-4X
2023 Nissan Frontier PRO-4X
2024 Nissan Frontier PRO-4X
2025 Nissan Frontier PRO-4X
2026 Nissan Frontier PRO-4X

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
