Exedy exeNM012SD Hyper Stage 4 Twin Cerametallic Clutch for 1989-1994 Nissan 240SX

For high-powered applications, EXEDY offers twin and triple Multi-Plate clutches. These are designed for high power street as well as drag, road and rally racing. The twin plate clutches are rated for approximately 500 ft/lbs of torque and the triple plates are rated for approximately 800 ft/lbs of torque, both figures at the flywheel. Twins come with both spring damper discs or solid discs depending on application, whereas triples are all solid discs and not recommended for street use. All EXEDY Hyper Multi-Plate clutches come with a lightweight, chromoly steel flywheel and the famous purple anodized forged aluminum clutch cover. Depending on the application, we have both strap drive and lug drive models. All have T5001 cerametallic friction materials for extreme heat resistance. Surprisingly, even with it?s power capability, multi-plate clutches exhibit light pedal pressure thanks to a half-engaged ''zone'' provided by the patented clutch ''cushion'' function. SD Type: This model has been developed for high powered street cars and race cars with up to approximately 600TQ at FW. They feature ventilated, thick intermediate plates for improved life and spring damper discs to protect your transmission and driveline. SR Type: These clutch covers are designed to achieve a clamping load that is approx. 40% higher than the stock allowing a higher torque transmitting capacity. Ductile material is used for all pressure plates and, high burst strength can be achieved in all temperature ranges. HR Type: This model has three plates and is developed specifically for high power applications such as over 800 ft/lbs of torque at the flywheel for drag racing. It handles high torque loads and shifts smooth, and because of the lightweight clutch discs, you can reduce your shift times. All EXEDY Racing Hyper Multi Series Clutch Kits carry SFI 1.2/1.5 Certification. Which means, when you buy these products, you can be confident they are certified for use in competitive motorsports. Hyper Stage 4 Twin Cerametallic Disc Clutch; Disc Dia. 200mm; 24T/25.6 Spline; Hyper Twin Cerametallic Clutch; Sprung Center Disc; Push Type Cover; Requires Release Bearing BRG002; Includes Flywheel Bolts; For use w/ Hyper Accessory Kit NSAK102

• SFI Certified

The Exedy Hyper Stage 4 Twin Cerametallic Clutch is designed for high-powered street cars and race applications. This SD Type clutch is rated for approximately 600 ft-lbs of torque at the flywheel and uses twin cerametallic discs with a sprung center disc to help protect the transmission and driveline.

The clutch features a push-type cover, ventilated intermediate plates for improved service life, and T5001 cerametallic friction material for extreme heat resistance. Exedy Hyper Multi-Plate clutches use a patented clutch cushion function to provide a half-engaged zone that helps maintain light pedal pressure despite the clutch's high power capacity.

Key Features & Performance Benefits

• Twin cerametallic design: Supports high-powered street and racing applications.
• Sprung center disc: Helps protect the transmission and driveline from drivetrain shock.
• Ventilated intermediate plates: Designed to improve clutch service life.
• High heat resistance: T5001 cerametallic friction material is engineered for demanding use.

Key Product Specifications & Technical Data

• Brand: Exedy
• Part Number: exeNM012SD
• Application: 1989-1994 Nissan 240SX
• Clutch type: Hyper Stage 4 Twin Cerametallic
• Disc diameter: 200 mm
• Disc spline: 24T/25.6 spline
• Disc configuration: Sprung center disc
• Cover type: Push type

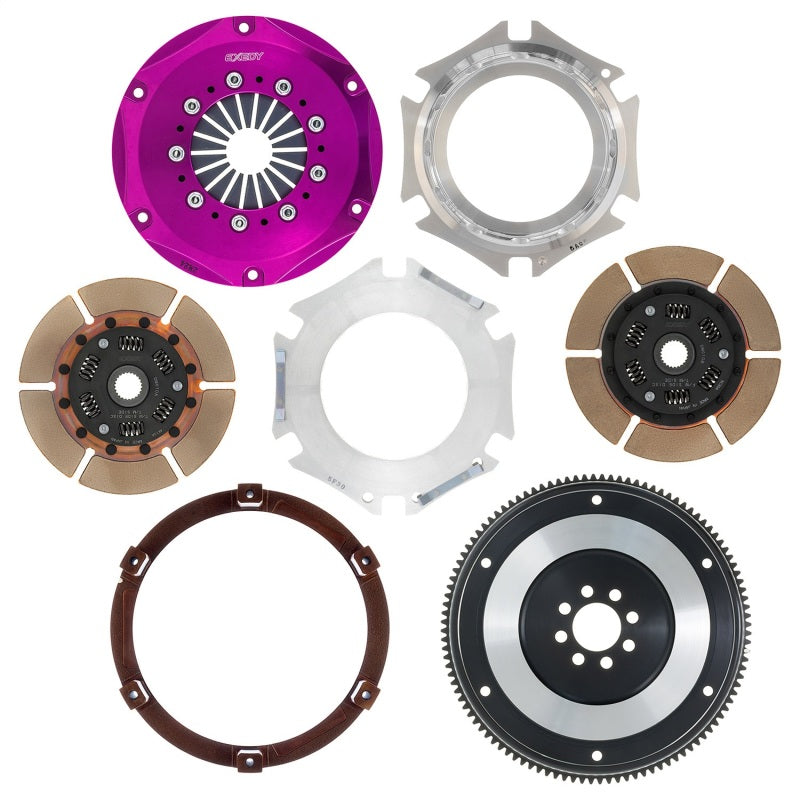

What's Included in the Box

• Twin cerametallic clutch assembly
• Lightweight chromoly steel flywheel
• Clutch cover
• Flywheel bolts

Requires release bearing BRG002. For use with Hyper Accessory Kit NSAK102. This clutch is SFI certified.
