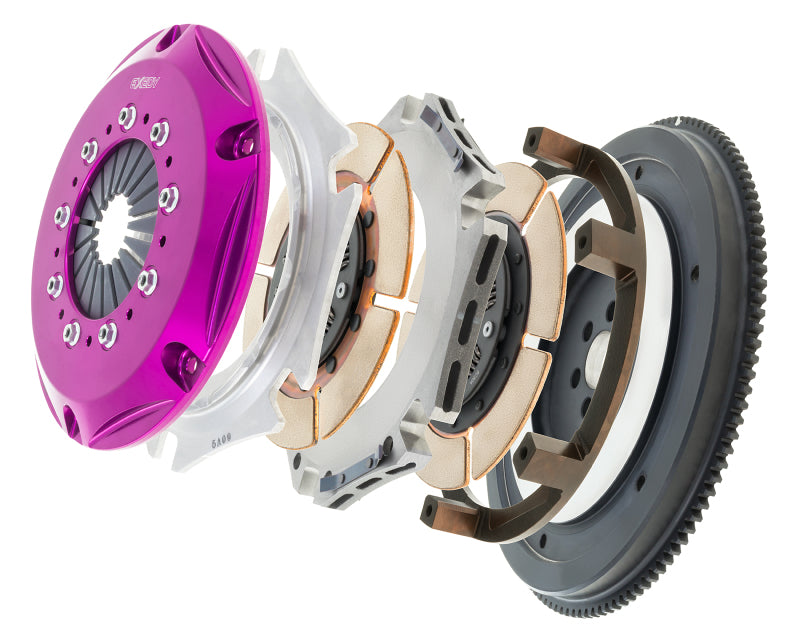

Exedy exeNM032SD - 1989-1993 Nissan Skyline GTR L6 Hyper Twin Cerametallic Clutch

For high-powered applications, EXEDY offers twin and triple Multi-Plate clutches. These are designed for high power street as well as drag, road and rally racing. The twin plate clutches are rated for approximately 500 ft/lbs of torque and the triple plates are rated for approximately 800 ft/lbs of torque, both figures at the flywheel. Twins come with both spring damper discs or solid discs depending on application, whereas triples are all solid discs and not recommended for street use. All EXEDY Hyper Multi-Plate clutches come with a lightweight, chromoly steel flywheel and the famous purple anodized forged aluminum clutch cover. Depending on the application, we have both strap drive and lug drive models. All have T5001 cerametallic friction materials for extreme heat resistance. Surprisingly, even with it?s power capability, multi-plate clutches exhibit light pedal pressure thanks to a half-engaged ''zone'' provided by the patented clutch ''cushion'' function. SD Type: This model has been developed for high powered street cars and race cars with up to approximately 600TQ at FW. They feature ventilated, thick intermediate plates for improved life and spring damper discs to protect your transmission and driveline. SR Type: These clutch covers are designed to achieve a clamping load that is approx. 40% higher than the stock allowing a higher torque transmitting capacity. Ductile material is used for all pressure plates and, high burst strength can be achieved in all temperature ranges. HR Type: This model has three plates and is developed specifically for high power applications such as over 800 ft/lbs of torque at the flywheel for drag racing. It handles high torque loads and shifts smooth, and because of the lightweight clutch discs, you can reduce your shift times. All EXEDY Racing Hyper Multi Series Clutch Kits carry SFI 1.2/1.5 Certification. Which means, when you buy these products, you can be confident they are certified for use in competitive motorsports. Hyper Multi-Plate Clutch Kit; Twin; Cerametallic; Sprung Center Disc; 200mm; Push Type; 24 Tooth/25.6mm Spline; Hyper Twin Cerametallic Clutch; Sprung Center Disc; Push Type Cover; Requires Release Bearing BRG002; Includes Flywheel Bolts; For use w/ Hyper Accessory Kit NSAK102

• SFI Certified

The Exedy exeNM032SD Hyper Twin Cerametallic Clutch Kit is designed for high-powered street cars and race cars requiring increased torque capacity and heat resistance. This SD-type clutch uses a sprung center disc to help protect the transmission and driveline while delivering smooth engagement characteristics.

The kit features a twin-disc cerametallic design, a push-type clutch cover, and a 200 mm clutch size. Exedy Hyper Multi-Plate clutches use T5001 cerametallic friction material for extreme heat resistance and a patented clutch cushion function that helps provide light pedal pressure through a half-engaged zone. This model requires release bearing BRG002 and is intended for use with Hyper Accessory Kit NSAK102.

The clutch kit is listed for the 1989-1993 Nissan Skyline GTR L6 and carries SFI certification. The SD type is developed for applications producing up to approximately 600 ft/lbs of torque at the flywheel, with ventilated, thick intermediate plates intended to improve service life. The kit includes flywheel bolts.

Key Features & Performance Benefits

• Hyper twin-disc design: Supports high-powered street and racing applications.
• Cerametallic friction material: T5001 material provides extreme heat resistance.
• Sprung center disc: Helps protect the transmission and driveline.
• SD-type construction: Uses ventilated, thick intermediate plates for improved life.

Key Product Specifications & Technical Data

• Brand: Exedy
• Part number: exeNM032SD
• Clutch type: Hyper twin multi-plate
• Friction material: Cerametallic
• Center disc: Sprung
• Clutch actuation: Push type
• Clutch size: 200 mm
• Spline: 24 tooth, 25.6 mm

What's Included in the Box

• Hyper Twin Cerametallic Clutch
• Flywheel bolts

Fitment

1989-1993 Nissan Skyline GTR L6. Requires release bearing BRG002 and is for use with Hyper Accessory Kit NSAK102.
