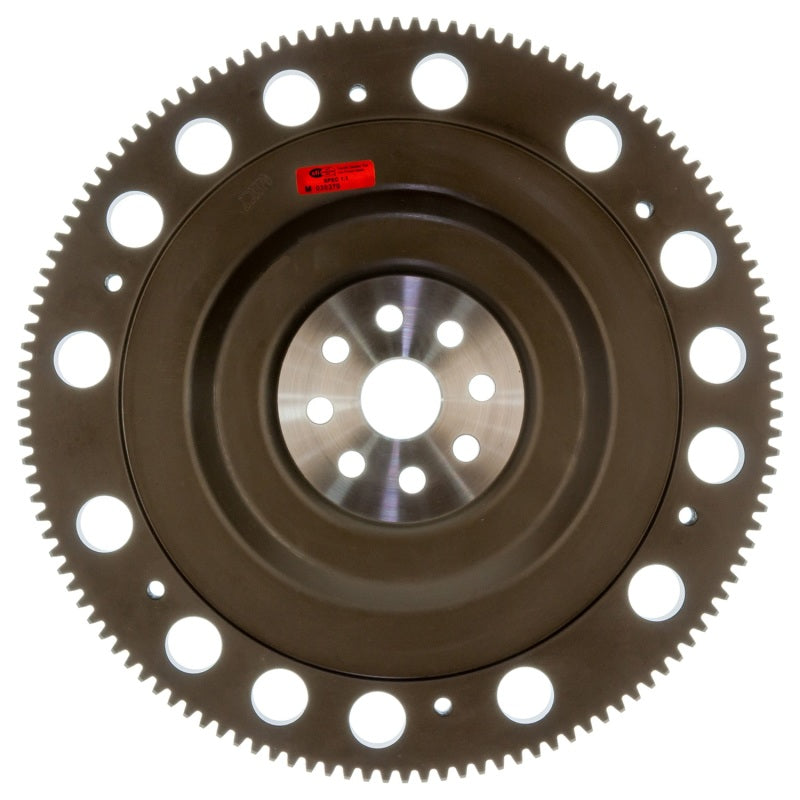

Exedy exeTF02 Lightweight Racing Flywheel for 2013-2016 Scion FR-S and 2017-2019 Toyota 86

Exedy flywheels combine low weight, low inertia and high thermal capacity. They are designed for lightly tuned racing cars and drag racing, autocross and rally events, as well as street usage. They are made from solid one-piece billet chromoly steel or chromoly steel forgings. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance airflow and cooling of the clutch. The ring gear teeth are integrated onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel and has the possibility of separating due to different expansion coefficients of aluminum vs. steel. Exedy steel billet and forged steel flywheels have passed engineering tests to 15,000-18,000 rpm and guaranteed not to fail to the said rpm and are all SFI approved. Lightweight Racing Flywheel; 8 Bolt; One Piece Billet Chromoly Steel; 12.7 lbs.; Lightweight Flywheel

• SFI Certified

The Exedy exeTF02 Lightweight Racing Flywheel is designed to reduce weight and rotational inertia for improved engine response. This one-piece billet chromoly steel flywheel weighs 12.7 lb. and is intended for lightly tuned racing cars, drag racing, autocross, rally events, and street usage.

Exedy flywheels combine low weight, low inertia, and high thermal capacity. The integrated steel ring gear teeth eliminate the separate pressed-on ring gear design used on aluminum flywheels, avoiding the possibility of separation caused by different expansion rates between aluminum and steel. Special design features are used to enhance clutch airflow and cooling. The steel billet construction has passed engineering tests to 15,000-18,000 rpm and is SFI certified.

Key Features & Performance Benefits

• Lightweight billet chromoly steel construction reduces weight and inertia for improved engine response.
• High thermal capacity supports performance use in racing and street applications.
• Integrated ring gear teeth help prevent separation associated with separately pressed-on aluminum flywheel ring gears.
• Designed with features that enhance clutch airflow and cooling.

Product Specifications & Technical Data

• Brand: Exedy
• Part Number: exeTF02
• Product Type: Lightweight racing flywheel
• Material: One-piece billet chromoly steel
• Flywheel Weight: 12.7 lb.
• Bolt Configuration: 8 bolt
• Certification: SFI certified
• Tested Engine Speed: 15,000-18,000 rpm

What's Included in the Box

One Exedy exeTF02 lightweight racing flywheel.

Fitment

Fits 2013-2016 Scion FR-S and 2017-2019 Toyota 86 models.

Fitments:
2013 Scion FR-S Base
2014 Scion FR-S Base
2015 Scion FR-S Base
2016 Scion FR-S Base
2017 Toyota 86 Base
2017 Toyota 86 Special Edition
2018 Toyota 86 Base
2018 Toyota 86 GT
2019 Toyota 86 Base
2019 Toyota 86 GT
2019 Toyota 86 TRD Special Edition
2020 Toyota 86 Base
2020 Toyota 86 GT
2020 Toyota 86 Hakone Edition
