Fabtech - fabFTS23229 - 19-20 Ram 2500 4WD 2.5in Spacer Kit with Dirt Logic 2.25 N/R Shocks

The 2.5 Lift system for 2014 2500 Rams, with Radius Arm front suspension, features more than just basic spacers. Dodge designed the front coil springs with a large bow to increase vehicle stability and handling. Unlike other flat spacers on the market, Fabtechs angled spacers retain this important feature preserving the factory ride characteristics. The front shocks are replaced with longer length units to allow for full suspension travel while improving the damping of the front suspension. Extended length bump stops are included in this kit to prevent the coil springs from binding at full compression while also eliminating Trac Bar interference. Coil Spacer System; Incl. 2.5 in. Coil Spacer; w/DLSS Shocks;

• The Kits Are Made From The Highest Quality Materials
• Retains Factory Front Coil Springs For Stock Ride
• Guarantee Superior Performance And Functionality

The Fabtech 2.5-inch lift system for 2019-2020 Ram 2500 4WD models with radius arm front suspension uses angled coil spacers rather than basic flat spacers. This design retains the factory front coil spring bow, helping preserve the vehicle’s original ride characteristics, stability, and handling.

The kit retains the factory front coil springs and replaces the front shocks with longer-length Dirt Logic 2.25 N/R shocks to allow full suspension travel while improving front suspension damping. Extended-length bump stops help prevent coil spring binding at full compression and eliminate track bar interference.

Key Product Specifications & Technical Data

• Brand: Fabtech
• Part Number: fabFTS23229
• Application: 2019-2020 Ram 2500 4WD
• Lift Height: 2.5 inches
• System Type: Coil spacer system
• Front Suspension: Radius arm suspension
• Shock Type: Dirt Logic 2.25 N/R shocks
• Front Springs: Retains factory front coil springs

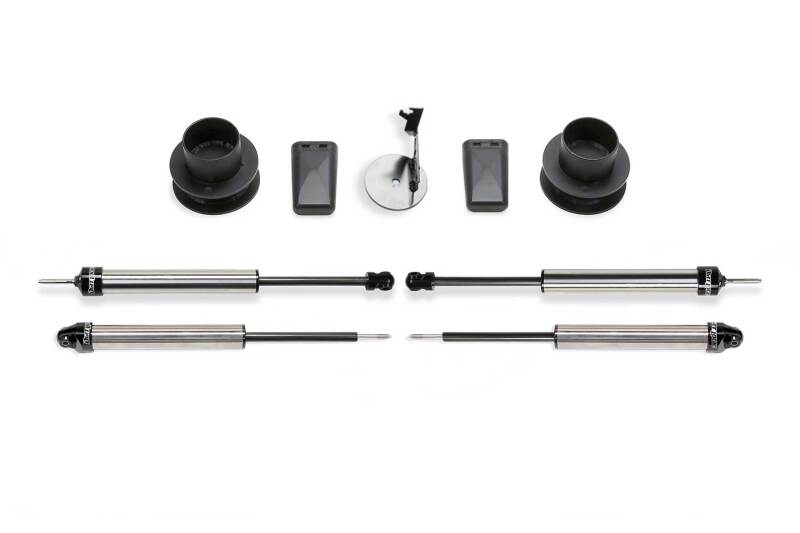

What’s Included in the Box

• 2.5-inch coil spacers
• Dirt Logic 2.25 N/R shocks
• Extended-length bump stops

Fitment

Fits 2019-2020 Ram 2500 4WD applications as listed by the supplier.

Features:

• Angled Coil Spacers: Retain the factory front coil spring bow to help preserve original ride characteristics, stability, and handling.
• Full Suspension Travel: Longer-length front shocks allow full suspension travel while improving front suspension damping.
• Extended Bump Stops: Help prevent coil spring binding at full compression and eliminate track bar interference.
• Factory Spring Retention: Keeps the factory front coil springs in place for a stock ride.

Fitments:
2019 Ram 2500 Big Horn
2019 Ram 2500 Laramie
2019 Ram 2500 Laramie Longhorn
2019 Ram 2500 Limited
2019 Ram 2500 Lone Star
2019 Ram 2500 Power Wagon
2019 Ram 2500 Tradesman
2020 Ram 2500 Big Horn
2020 Ram 2500 Laramie
2020 Ram 2500 Laramie Longhorn
2020 Ram 2500 Limited
2020 Ram 2500 Lone Star
2020 Ram 2500 Power Wagon
2020 Ram 2500 Tradesman
2020 Ram 3500 Big Horn
2020 Ram 3500 Laramie
2020 Ram 3500 Laramie Longhorn
2020 Ram 3500 Limited
2020 Ram 3500 Lone Star
2020 Ram 3500 SLT
2020 Ram 3500 Tradesman
2021 Ram 2500 Big Horn
2021 Ram 2500 Laramie
2021 Ram 2500 Laramie Longhorn
2021 Ram 2500 Limited
2021 Ram 2500 Limited Longhorn
2021 Ram 2500 Lone Star
2021 Ram 2500 Power Wagon
2021 Ram 2500 Tradesman
2022 Ram 2500 Big Horn
2022 Ram 2500 Laramie
2022 Ram 2500 Limited
2022 Ram 2500 Limited Longhorn
2022 Ram 2500 Lone Star
2022 Ram 2500 Power Wagon
2022 Ram 2500 Tradesman
2023 Ram 2500 Big Horn
2023 Ram 2500 Laramie
2023 Ram 2500 Limited
2023 Ram 2500 Limited Longhorn
2023 Ram 2500 Lone Star
2023 Ram 2500 Power Wagon
2023 Ram 2500 Rebel
2023 Ram 2500 Tradesman
2024 Ram 2500 Big Horn
2024 Ram 2500 Laramie
2024 Ram 2500 Limited
2024 Ram 2500 Limited Longhorn
2024 Ram 2500 Lone Star
2024 Ram 2500 Power Wagon
2024 Ram 2500 Rebel
2024 Ram 2500 Special Service
2024 Ram 2500 Tradesman
2025 Ram 2500 Big Horn
2025 Ram 2500 Laramie
2025 Ram 2500 Limited
2025 Ram 2500 Limited Longhorn
2025 Ram 2500 Lone Star
2025 Ram 2500 Power Wagon
2025 Ram 2500 Rebel
2025 Ram 2500 Special Service
2025 Ram 2500 Tradesman
