Firestone fir2902 Air Command Single Analog Extreme

Firestone Airide is pleased to announce that we have made enhancements to our Air Command kits, making the installation of our onboard compressor systems easier than ever. Both our analog and wireless kits now include a non-drill mounting plate for the compressor and ECU, which makes our compressor kits easier and faster to install. Air Command; Extreme Duty Compressor; Pneumatic Analog Gauge; Single Toggle Switch; 2 gal. Air Tank; Plug And Play Wiring Harness; 30 ft. of 1/4 in. Tubing; Hardware;

• No-Drill Mounting Bracket Included For The Compressor. Onboard Auxiliary Air For Filling Tires Or Other Accessories
• 150 PSI Max Pressure 100 Percent Duty Cycle 23 AMP Max Draw 7 Second Fill Rate From 0-30 PSI 0.94 CFM At 100 PSI
• Single Path Fill - Both Air Springs Are Maintained At The Same Pressure
• Easy air pressure adjustment via wireless or analog control
• Easy installation in 1-2 hours with installation manual
• Analog Back Lit Gauge - Black Plastic Housing
• Standard, Heavy Duty, or Extreme Compressors
• Compressor Can Be Mounted In Any Orientation
• Gauge Mounts Inside The Vehicle
• Single or dual path options

The Firestone Air Command Single Analog Extreme kit provides onboard auxiliary air for filling tires and other accessories. It includes an extreme-duty compressor, pneumatic analog gauge, single toggle switch, 2-gallon air tank, plug-and-play wiring harness, 30 feet of 1/4-inch tubing, hardware, and a no-drill mounting bracket for the compressor and ECU.

Key Features & Performance Benefits

• Extreme-duty compressor supports a 100% duty cycle and up to 150 PSI.
• No-drill mounting bracket helps simplify compressor and ECU installation.
• Single-path fill maintains both air springs at the same pressure.
• Analog control provides convenient air-pressure adjustment through an illuminated gauge mounted inside the vehicle.

Key Product Specifications & Technical Data

• Brand: Firestone
• Part Number: fir2902
• System: Air Command Single Analog Extreme
• Maximum Pressure: 150 PSI
• Duty Cycle: 100%
• Maximum Current Draw: 23 amps
• Fill Rate: 7 seconds from 0 to 30 PSI
• Compressor Output: 0.94 CFM at 100 PSI

What's Included in the Box

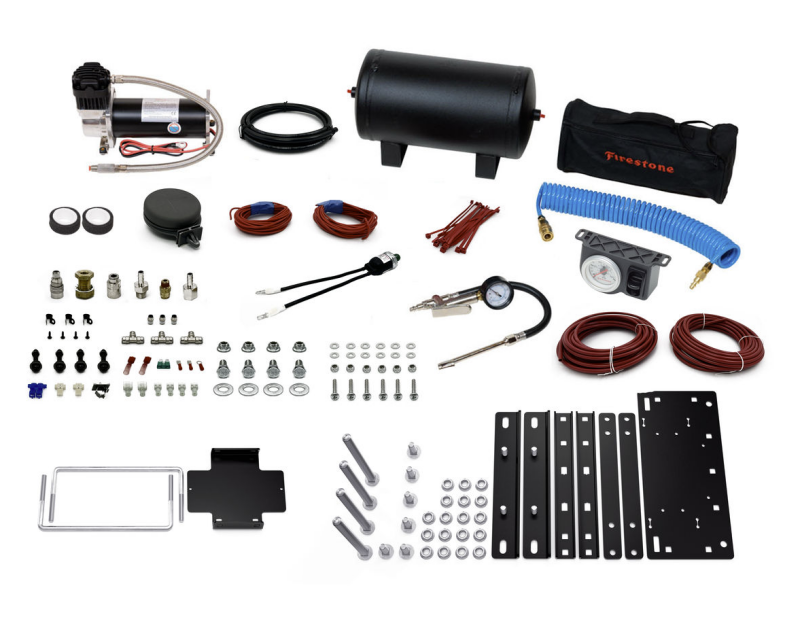

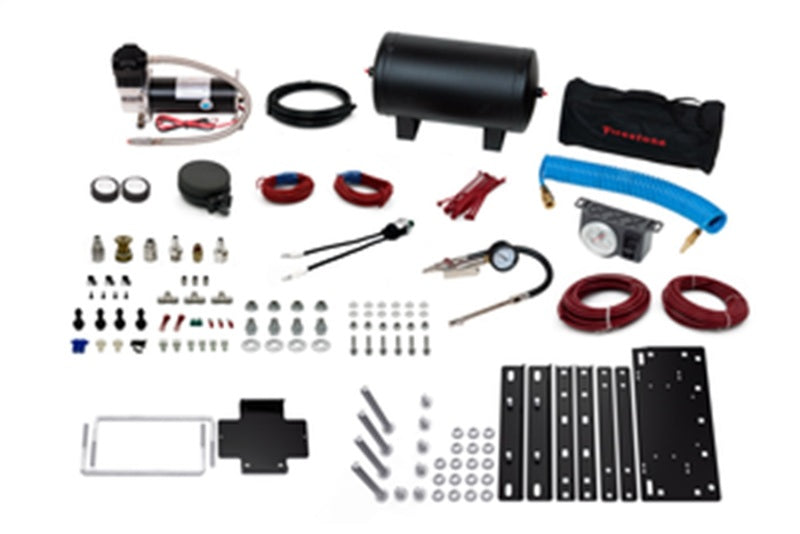

Extreme-duty compressor, pneumatic analog gauge, single toggle switch, 2-gallon air tank, plug-and-play wiring harness, 30 feet of 1/4-inch tubing, no-drill compressor and ECU mounting bracket, hardware, and installation manual.

Fitment data was not provided.

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Units Per Sku: 1
Regular Stock: t
