Firestone fir9242 Air Tank - 5 Gallon, 150 PSI, Black

This Firestone air tank provides a source of compressed air for an air spring system. Tank has 5-gallon capacity, (6) 3/8 in. NPT ports, (3) 1/4 ports and (1) 1/8 port. Tank is enamel coated, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 5 gallons of compressed air Includes (6) 3/8 in., (3) 1/4 in. and (1) 1/8 NPT ports Steel tank with brass fittings Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 34 in. long x 7 in. diameter Tank capacity: 5 gallons Inflation ports: 3/8 in., 1/4 in. and 1/8 in. NPT PSI: Maximum of 150 2-Year limited warranty Air Tank; 5 Gallon; 7 in. Dia.; 34 in. Length; Six 3/8 in. NPT Ports; Three 1/4 in. NPT Port; One 1/8 in. NPT Port; 150 PSI Max; Black;

• Pressure Tested To Twice The Working Pressure
• Baked Black Enamel On Inside And Outside
• Manufactured To SAE J10 Specifications
• Prevents Corrosion

The Firestone fir9242 air tank provides a compressed-air source for an air helper spring system. Its 5-gallon capacity helps support faster inflation of air springs, while the steel construction and brass fittings provide a durable solution for air suspension applications. The tank features baked black enamel coating on both the interior and exterior to help resist corrosion.

Key Features & Performance Benefits

• Provides a compressed-air source for an air helper spring system.
• Supports faster inflation of air springs.
• Includes multiple NPT ports for air system connections.
• Pressure tested to twice the working pressure and designed for operation up to 150 PSI.

Key Product Specifications & Technical Data

• Brand: Firestone
• Part number: fir9242
• Tank capacity: 5 gallons
• Maximum pressure: 150 PSI

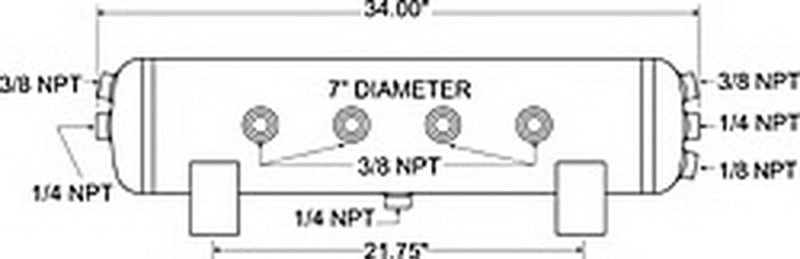

• Tank dimensions: 34 inches long by 7 inches in diameter
• Inflation ports: Six 3/8-inch NPT, three 1/4-inch NPT and one 1/8-inch NPT
• Construction: Steel tank with brass fittings
• Coating and specification: Interior and exterior baked black enamel; manufactured to SAE J10 specifications

What's Included

One Firestone 5-gallon air tank with the listed NPT ports and brass fittings. The product description states a 2-year limited warranty.

Fitment

Designed as a compressed-air source for an air helper spring system. Vehicle-specific fitment information was not provided.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
