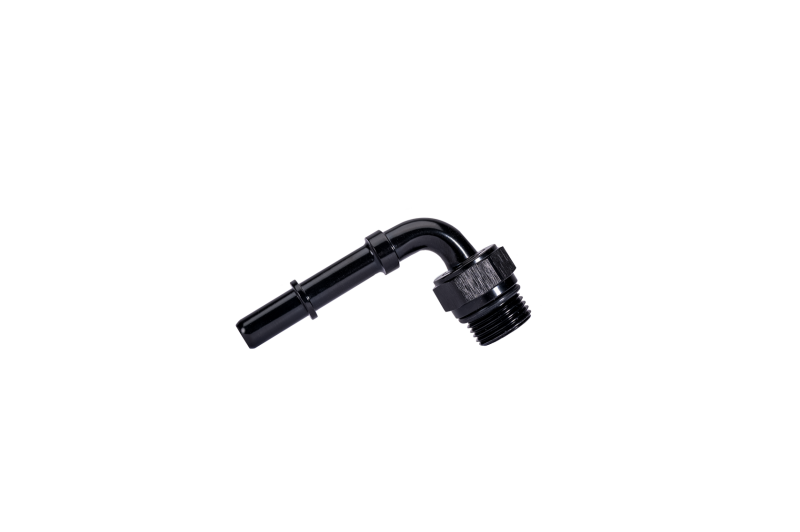

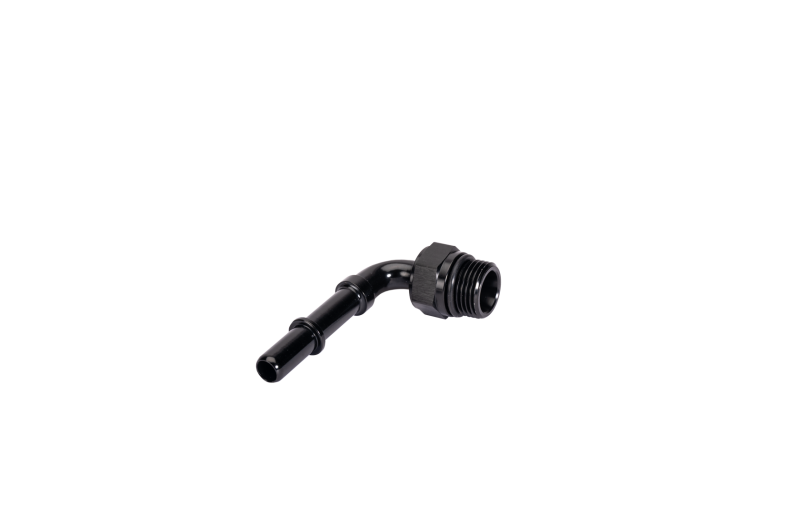

Fleece Performance - fpeFPE-APT-34-90-Q38 - 90-Degree 3/4-16 (-8 AN) to 3/8-Inch Swivel Quick Connect

3/8"" Swivel Quick Connect to 3/4""-16 O-ring (-8 AN) features: Male AN straight thread O-Ring Boss (ORB) swivel fitting with O-ring to quick connect Short hex height to maximize install clearance Black anodized aluminum construction

The Fleece Performance fpeFPE-APT-34-90-Q38 is a 90-degree swivel quick-connect fitting designed to connect a 3/8-inch quick-connect interface to a 3/4-inch-16 male AN straight-thread O-ring boss (ORB) port, also identified as -8 AN. Its angled configuration supports routing flexibility where a straight fitting may not provide the desired connection path.

Key Features & Performance Benefits

• 90-Degree Configuration: Provides an angled connection layout for installation flexibility.
• Swivel Quick Connect: Combines a swivel fitting with a quick-connect interface for convenient connection positioning.
• O-Ring Boss Thread: Uses a male 3/4-inch-16 AN straight thread with an O-ring for the ORB connection.
• Short Hex Design: The short hex height helps maximize installation clearance.

Key Product Specifications & Technical Data

• Brand: Fleece Performance
• Part Number: fpeFPE-APT-34-90-Q38
• Fitting Type: Swivel quick-connect fitting
• Quick-Connect Size: 3/8 inch
• Thread Size: 3/4 inch-16
• Thread Style: Male AN straight thread O-ring boss (ORB)
• AN Size: -8 AN
• Construction: Black anodized aluminum

What's Included in the Box

One Fleece Performance swivel quick-connect fitting.

Fitment

Vehicle fitment data was not provided.

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Units Per Sku: 1
Regular Stock: t
