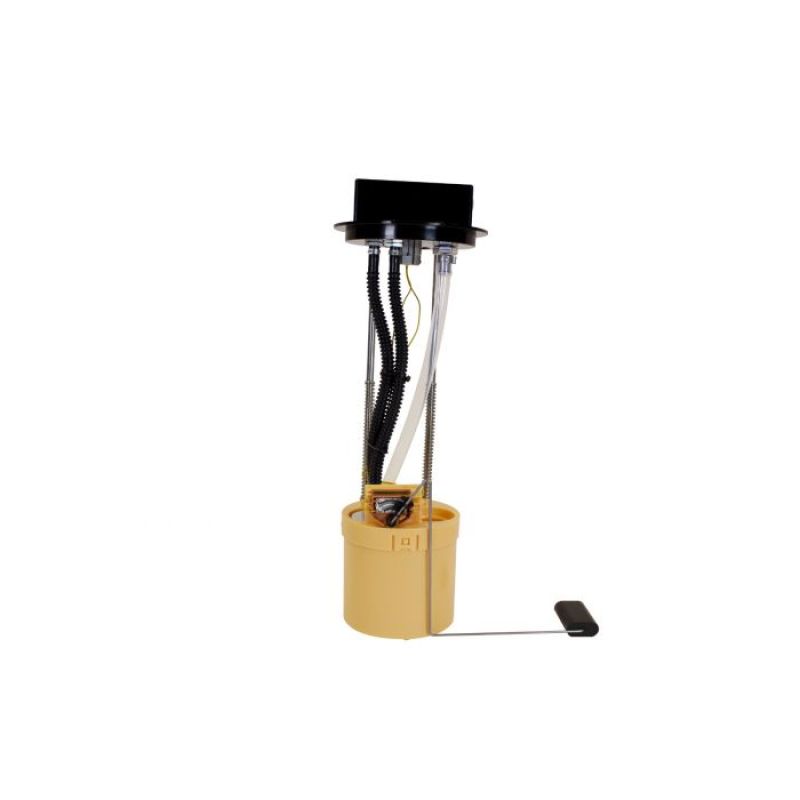

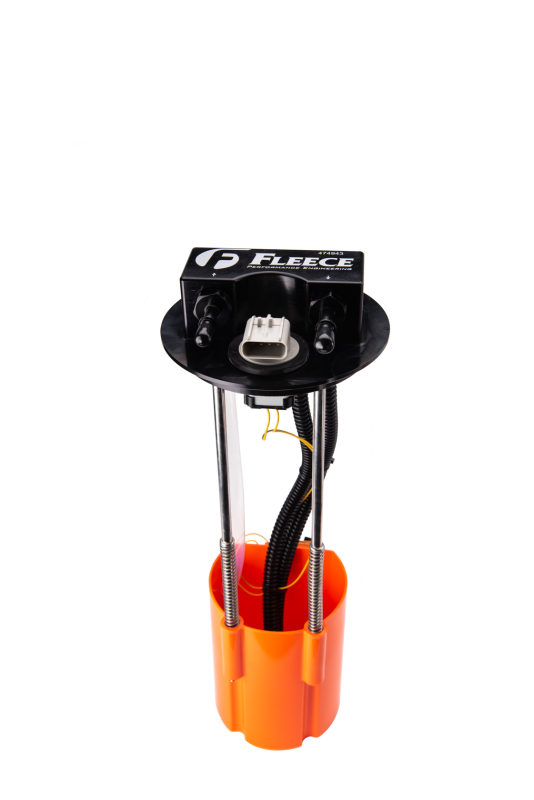

Fleece Performance - fpeFPE-SF-CUMM-0509 - 05-09 Dodge Ram Cummins SureFlo Performance Sending Unit

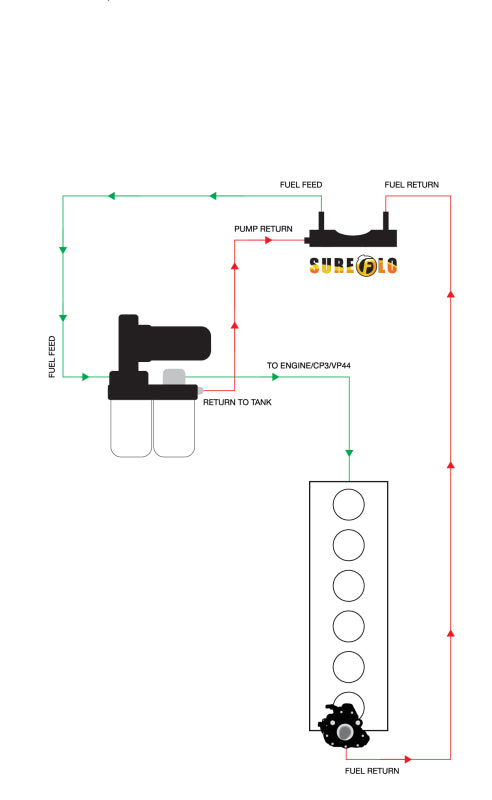

PROBLEM: If you are running an aftermarket pump that is mounted external of the fuel tank, you will need to install a draw straw or drill your fuel tank to accommodate a sump. Each of these has some pretty significant drawbacks including the 1/4 tank issues that result in cavitation of the pump when you draw air into the fuel system. SOLUTION: SureFlo is designed to work with externally mounted aftermarket lift pumps and fits directly into your stock sending unit location. It features factory style quick disconnects to adapt your stock fuel lines at the tank, giving you the cleanest installation available and requiring no cutting or drilling of the tank. SureFlo works by drawing fuel from, and returning fuel to, the bucket assembly at the base of the unit. This ensures you are always drawing fuel into your pump and not drawing air into the fuel system as well as eliminates the dreaded 1/4 tank problems. The SureFlo bucket also incorporates one way check valves to allow fuel to easily flow in, even at the lowest of fuel levels. SureFlo sending units are a great alternative for trucks originally equipped without an in tank pump needing to repair a malfunctioning level sender or if you are simply looking to run your own custom fuel lines directly to the tank. SureFlo is not recommended for use with aftermarket lift pumps that exceed a 200 GPH rating. SureFlo features include: OEM style fitment that requires no tank cutting or drilling New fuel level electronics and fuel float Heavy duty billet aluminum cap Universal -8 AN ports for professional plumbing of a custom fuel setup New O-ring or flange seal 8 to 3/4'-16 straight male fitting w/ O-ring APPLICATION NOTES For MY 1998 trucks, this sending unit will work for both 12-valve and 24-valve models. The stock sending unit in both cases will have a range between 20-220 ohms. Recommended Cross Sell Skus - FPE-FFD-RO-3G/FPE-FFD-RO-3G-67

• Universal -8 AN ports for professional plumbing of a custom fuel setup
• OEM style fitment that requires no tank cutting or drilling
• New fuel level electronics and fuel float
• Heavy duty billet aluminum cap
• New O-ring or flange seal

The Fleece Performance SureFlo Performance Sending Unit is designed for 2005-2006 Dodge Ram trucks equipped with a Cummins engine and an externally mounted aftermarket lift pump. It fits directly into the stock sending unit location and uses factory-style quick disconnects to adapt the stock fuel lines at the tank, providing an installation that requires no cutting or drilling of the fuel tank.

Key Features & Performance Benefits

• OEM-style fitment: Installs at the stock sending unit location without tank cutting or drilling.

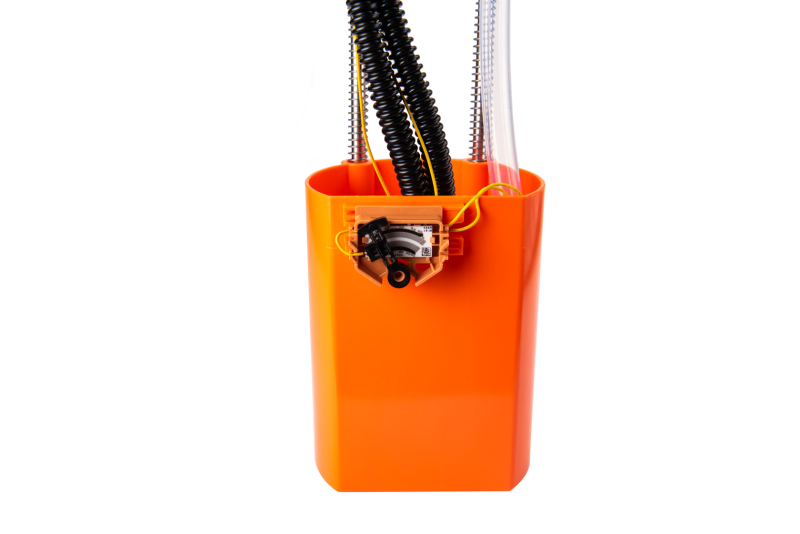

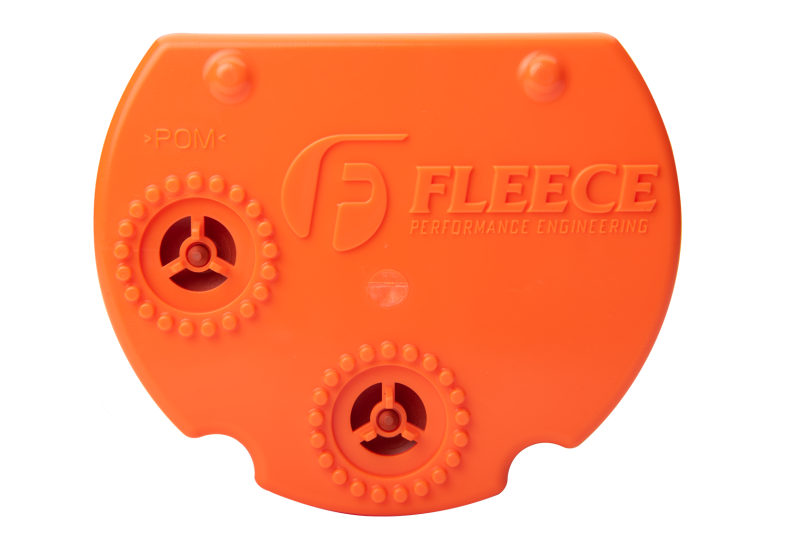

• SureFlo bucket assembly: Draws fuel from and returns fuel to the bucket assembly to help maintain fuel flow and reduce air entry into the fuel system.
• Integrated check valves: One-way check valves allow fuel to flow into the bucket assembly, including at low fuel levels.
• Custom plumbing capability: Universal -8 AN ports support professional plumbing for a custom fuel setup.

Key Product Specifications & Technical Data

• Brand: Fleece Performance
• Part number: fpeFPE-SF-CUMM-0509
• Product type: Performance sending unit
• Application: 2005-2009 Dodge Ram with Cummins
• Ports: Universal -8 AN
• Fitting: 8 to 3/4-16 straight male fitting with O-ring

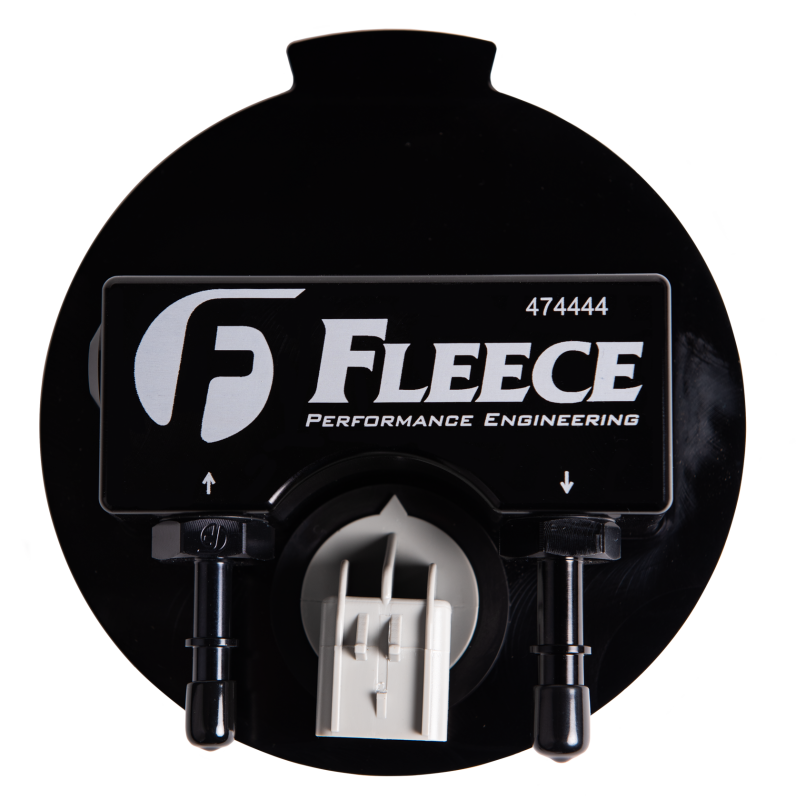

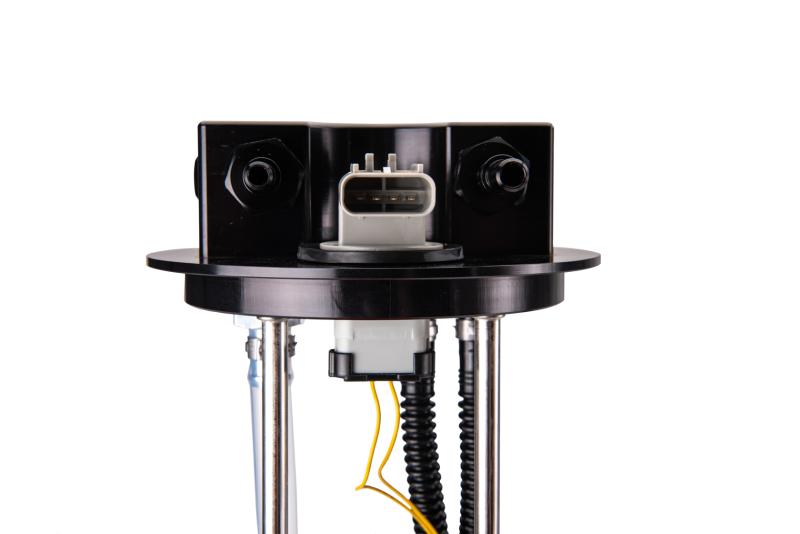

• Construction: Heavy-duty billet aluminum cap
• Fuel-level components: New fuel level electronics and fuel float

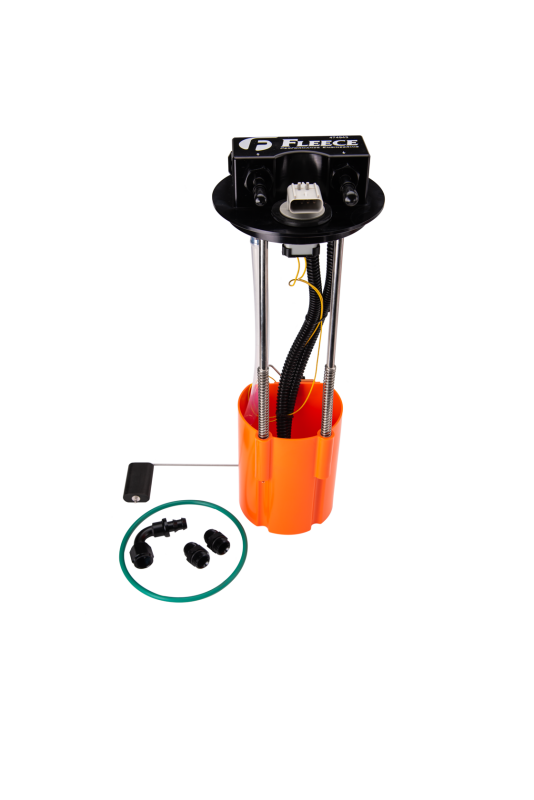

What's Included

• SureFlo Performance Sending Unit
• New O-ring or flange seal
• 8 to 3/4-16 straight male fitting with O-ring

Fitment

Fits 2005-2006 Dodge Ram 2500 and 3500 models listed in the available fitment data. For model-year 1998 trucks, the sending unit is stated to work with both 12-valve and 24-valve models using the stock sending unit range of 20-220 ohms. The SureFlo sending unit is not recommended for aftermarket lift pumps exceeding a 200 GPH rating.

Fitments:
2005 Dodge Ram 2500 Laramie
2005 Dodge Ram 2500 SLT
2005 Dodge Ram 2500 ST
2005 Dodge Ram 3500 Laramie
2005 Dodge Ram 3500 SLT
2005 Dodge Ram 3500 ST
2006 Dodge Ram 2500 Laramie
2006 Dodge Ram 2500 SLT
2006 Dodge Ram 2500 Sport
2006 Dodge Ram 2500 ST
2006 Dodge Ram 2500 TRX4
2006 Dodge Ram 3500 Laramie
2006 Dodge Ram 3500 SLT
2006 Dodge Ram 3500 Sport
2006 Dodge Ram 3500 ST
2007 Dodge Ram 2500 Laramie
2007 Dodge Ram 2500 SLT
2007 Dodge Ram 2500 Sport
2007 Dodge Ram 2500 ST
2007 Dodge Ram 2500 TRX4
2007 Dodge Ram 3500 Laramie
2007 Dodge Ram 3500 SLT
2007 Dodge Ram 3500 Sport
2007 Dodge Ram 3500 ST
2007 Dodge Ram 3500 TRX4
2008 Dodge Ram 2500 Laramie
2008 Dodge Ram 2500 SLT
2008 Dodge Ram 2500 ST
2008 Dodge Ram 2500 SXT
2008 Dodge Ram 3500 Laramie
2008 Dodge Ram 3500 SLT
2008 Dodge Ram 3500 ST
2008 Dodge Ram 3500 SXT
2009 Dodge Ram 2500 Laramie
2009 Dodge Ram 2500 SLT
2009 Dodge Ram 2500 ST
2009 Dodge Ram 2500 SXT
2009 Dodge Ram 3500 Laramie
2009 Dodge Ram 3500 SLT
2009 Dodge Ram 3500 ST
2009 Dodge Ram 3500 SXT

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
