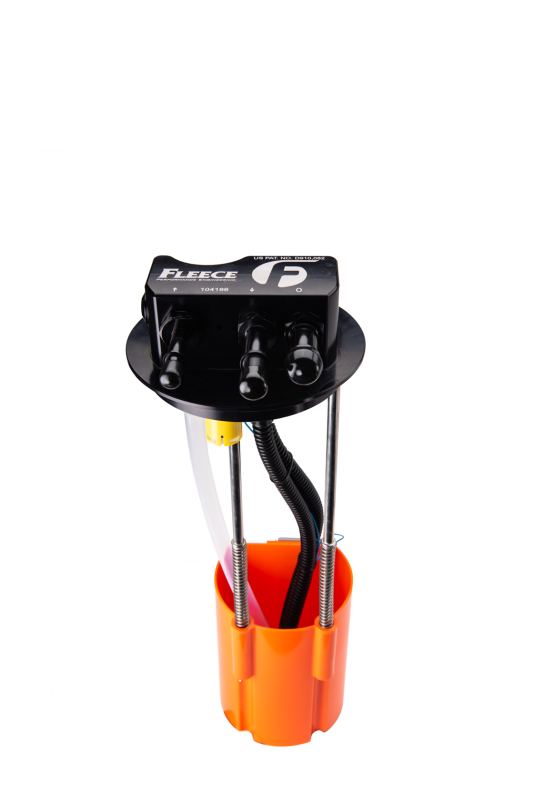

Fleece Performance fpeFPE-SF-GM-0410 - 04.5-10 GM Duramax SureFlo Performance Sending Unit

PROBLEM: If you are running an aftermarket pump that is mounted external of the fuel tank, you will need to install a draw straw or drill your fuel tank to accommodate a sump. Each of these has some pretty significant drawbacks including the 1/4 tank issues that result in cavitation of the pump when you draw air into the fuel system. SOLUTION: SureFlo is designed to work with externally mounted aftermarket lift pumps and fits directly into your stock sending unit location. It features factory style quick disconnects to adapt your stock fuel lines at the tank, giving you the cleanest installation available and requiring no cutting or drilling of the tank. SureFlo works by drawing fuel from, and returning fuel to, the bucket assembly at the base of the unit. This ensures you are always drawing fuel into your pump and not drawing air into the fuel system as well as eliminates the dreaded 1/4 tank problems. The SureFlo bucket also incorporates one way check valves to allow fuel to easily flow in, even at the lowest of fuel levels. SureFlo sending units are a great alternative for trucks originally equipped without an in tank pump needing to repair a malfunctioning level sender or if you are simply looking to run your own custom fuel lines directly to the tank. SureFlo is not recommended for use with aftermarket lift pumps that exceed a 200 GPH rating. SureFlo features include: OEM style fitment that requires no tank cutting or drilling New fuel level electronics and fuel float Heavy duty billet aluminum cap Universal -8 AN ports for professional plumbing of a custom fuel setup New O-ring or flange seal 8 to 3/4'-16 straight male fitting w/ O-ring

• Universal -8 AN ports for professional plumbing of a custom fuel setup
• 8 to 3/4'-16 straight male fitting w/ O-ring
• New fuel level electronics and fuel float

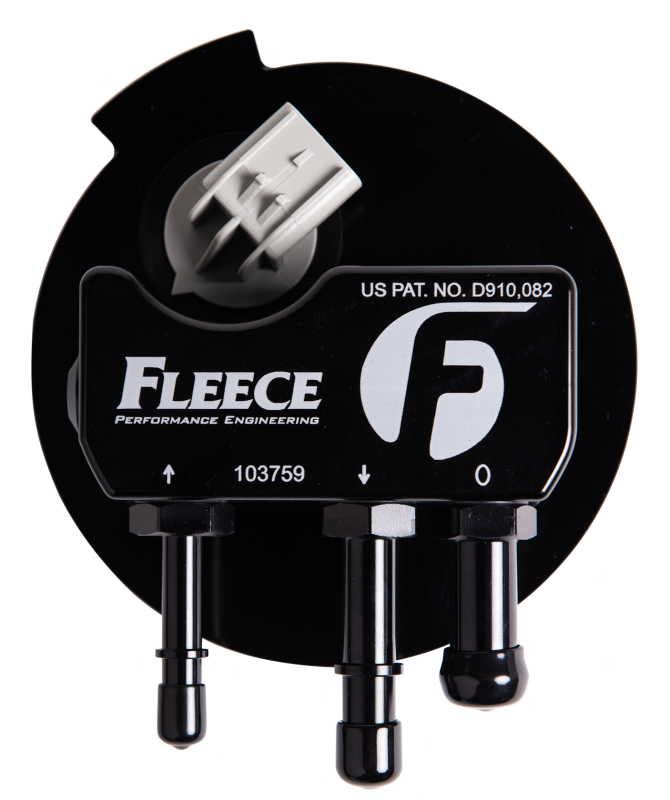

• Heavy duty billet aluminum cap
• New O-ring or flange seal
• OEM style fitment

The Fleece Performance SureFlo Performance Sending Unit is designed for use with externally mounted aftermarket lift pumps and installs in the stock fuel-sending-unit location. Its OEM-style fitment eliminates the need to cut or drill the fuel tank, while factory-style quick disconnects adapt stock fuel lines at the tank for a clean installation.

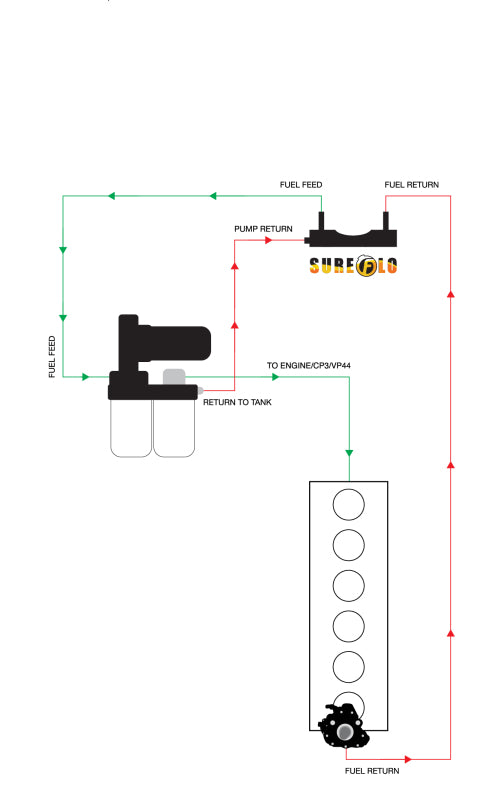

The SureFlo design draws fuel from and returns fuel to the bucket assembly at the base of the unit. This helps maintain fuel flow to the pump and reduce the risk of drawing air into the fuel system at low fuel levels. Integrated one-way check valves allow fuel to flow into the bucket assembly, helping address the 1/4-tank cavitation issues associated with some external pump installations. The unit is not recommended for aftermarket lift pumps exceeding 200 GPH.

Key Features & Performance Benefits

• OEM-style fitment: Installs in the stock sending-unit location without tank cutting or drilling.

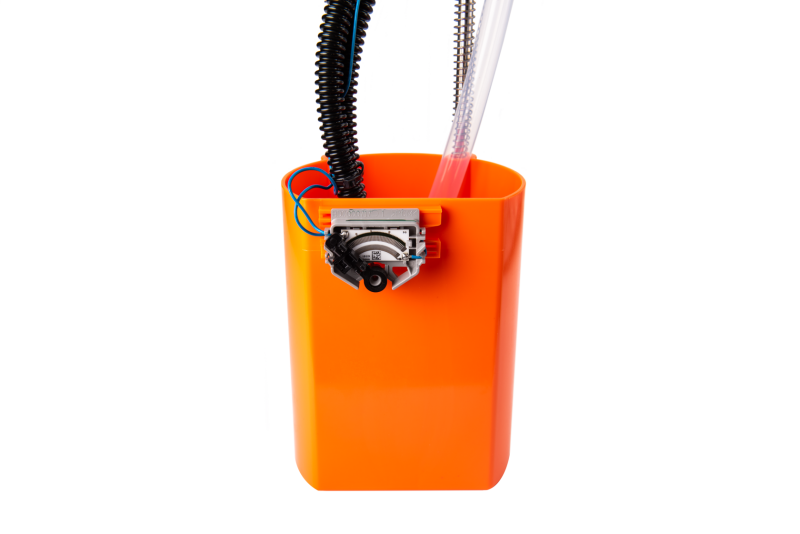

• Fuel bucket assembly: Draws and returns fuel through the bucket to help maintain fuel supply and reduce air ingestion.

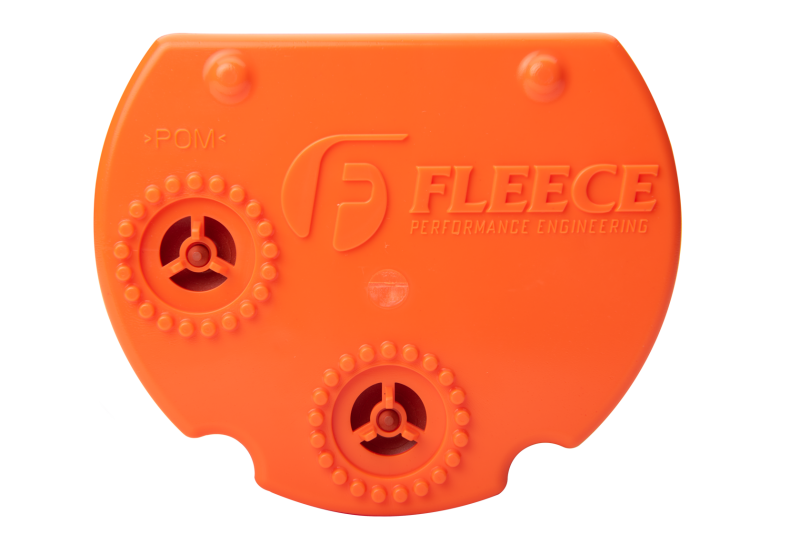

• One-way check valves: Help fuel flow into the bucket assembly, including at low fuel levels.

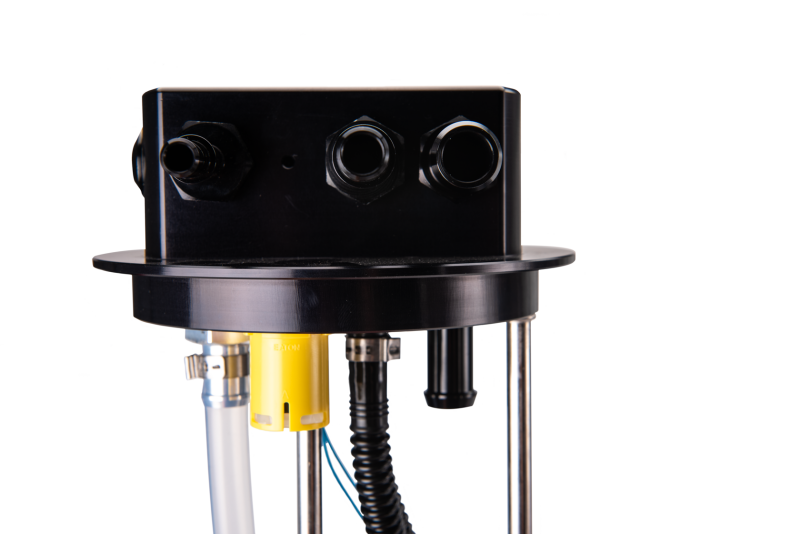

• Custom plumbing capability: Universal -8 AN ports support professional fuel-line installation.

Product Specifications & Technical Data

• Brand: Fleece Performance
• Part number: fpeFPE-SF-GM-0410
• Product type: SureFlo performance sending unit
• Application: Externally mounted aftermarket lift pumps
• Fuel pump limitation: Not recommended for lift pumps exceeding 200 GPH
• Port type: Universal -8 AN ports
• Fitting: 8 to 3/4-16 straight male fitting with O-ring
• Cap material: Billet aluminum

What's Included in the Box

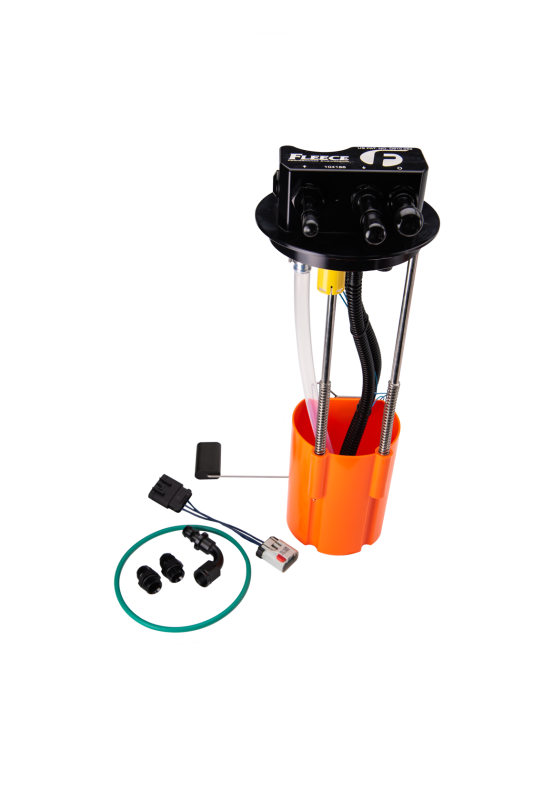

The SureFlo performance sending unit includes the sending unit assembly with new fuel-level electronics and fuel float, heavy-duty billet aluminum cap, new O-ring or flange seal, universal -8 AN ports, and an 8 to 3/4-16 straight male fitting with O-ring.

Fitment

Fits 2010 Chevrolet Silverado 2500 HD, 2010 Chevrolet Silverado 3500 HD, 2010 GMC Sierra 2500 HD, and 2010 GMC Sierra 3500 HD.

Fitments:
2004 Chevrolet Silverado 2500 HD Base
2004 Chevrolet Silverado 2500 HD LS
2004 Chevrolet Silverado 2500 HD LT
2004 Chevrolet Silverado 2500 HD WT
2004 Chevrolet Silverado 3500 Base
2004 Chevrolet Silverado 3500 LS
2004 Chevrolet Silverado 3500 LT
2004 Chevrolet Silverado 3500 WT
2004 GMC Sierra 2500 HD Base
2004 GMC Sierra 2500 HD SLE
2004 GMC Sierra 2500 HD SLT
2004 GMC Sierra 2500 HD WT
2004 GMC Sierra 3500 Base
2004 GMC Sierra 3500 SLE
2004 GMC Sierra 3500 SLT
2004 GMC Sierra 3500 WT
2005 Chevrolet Silverado 2500 HD Base
2005 Chevrolet Silverado 2500 HD LS
2005 Chevrolet Silverado 2500 HD LT
2005 Chevrolet Silverado 2500 HD WT
2005 Chevrolet Silverado 3500 Base
2005 Chevrolet Silverado 3500 LS
2005 Chevrolet Silverado 3500 LT
2005 GMC Sierra 2500 HD Base
2005 GMC Sierra 2500 HD SLE
2005 GMC Sierra 2500 HD SLT
2005 GMC Sierra 2500 HD WT
2005 GMC Sierra 3500 Base
2005 GMC Sierra 3500 SLE
2005 GMC Sierra 3500 SLT
2005 GMC Sierra 3500 WT
2006 Chevrolet Silverado 2500 HD LS
2006 Chevrolet Silverado 2500 HD LT
2006 Chevrolet Silverado 2500 HD WT
2006 Chevrolet Silverado 3500 LS
2006 Chevrolet Silverado 3500 LT
2006 Chevrolet Silverado 3500 WT
2006 GMC Sierra 2500 HD SL
2006 GMC Sierra 2500 HD SLE
2006 GMC Sierra 2500 HD SLT
2006 GMC Sierra 2500 HD WT
2006 GMC Sierra 3500 SL
2006 GMC Sierra 3500 SLE
2006 GMC Sierra 3500 SLT
2006 GMC Sierra 3500 WT
2007 Chevrolet Silverado 2500 HD LT
2007 Chevrolet Silverado 2500 HD LTZ
2007 Chevrolet Silverado 2500 HD WT
2007 Chevrolet Silverado 2500 HD Classic LS
2007 Chevrolet Silverado 2500 HD Classic LT
2007 Chevrolet Silverado 2500 HD Classic WT
2007 Chevrolet Silverado 3500 Classic LS
2007 Chevrolet Silverado 3500 Classic LT
2007 Chevrolet Silverado 3500 Classic WT
2007 Chevrolet Silverado 3500 HD LT
2007 Chevrolet Silverado 3500 HD LTZ
2007 Chevrolet Silverado 3500 HD WT
2007 GMC Sierra 2500 HD SLE
2007 GMC Sierra 2500 HD SLT
2007 GMC Sierra 2500 HD WT
2007 GMC Sierra 2500 HD Classic SL
2007 GMC Sierra 2500 HD Classic SLE
2007 GMC Sierra 2500 HD Classic SLT
2007 GMC Sierra 2500 HD Classic WT
2007 GMC Sierra 3500 Classic SL
2007 GMC Sierra 3500 Classic SLE
2007 GMC Sierra 3500 Classic SLT
2007 GMC Sierra 3500 Classic WT
2007 GMC Sierra 3500 HD SLE
2007 GMC Sierra 3500 HD SLT
2007 GMC Sierra 3500 HD WT
2008 Chevrolet Silverado 2500 HD LT
2008 Chevrolet Silverado 2500 HD LTZ
2008 Chevrolet Silverado 2500 HD WT
2008 Chevrolet Silverado 3500 HD LT
2008 Chevrolet Silverado 3500 HD LTZ
2008 Chevrolet Silverado 3500 HD WT
2008 GMC Sierra 2500 HD SLE
2008 GMC Sierra 2500 HD SLT
2008 GMC Sierra 2500 HD WT
2008 GMC Sierra 3500 HD SLE
2008 GMC Sierra 3500 HD SLT
2008 GMC Sierra 3500 HD WT
2009 Chevrolet Silverado 2500 HD LT
2009 Chevrolet Silverado 2500 HD LTZ
2009 Chevrolet Silverado 2500 HD WT
2009 Chevrolet Silverado 3500 HD LT
2009 Chevrolet Silverado 3500 HD LTZ
2009 Chevrolet Silverado 3500 HD WT
2009 GMC Sierra 2500 HD SLE
2009 GMC Sierra 2500 HD SLT
2009 GMC Sierra 2500 HD WT
2009 GMC Sierra 3500 HD SLE
2009 GMC Sierra 3500 HD SLT
2009 GMC Sierra 3500 HD WT
2010 Chevrolet Silverado 2500 HD LT
2010 Chevrolet Silverado 2500 HD LTZ
2010 Chevrolet Silverado 2500 HD WT
2010 Chevrolet Silverado 3500 HD LT
2010 Chevrolet Silverado 3500 HD LTZ
2010 Chevrolet Silverado 3500 HD WT
2010 GMC Sierra 2500 HD SLE
2010 GMC Sierra 2500 HD SLT
2010 GMC Sierra 2500 HD WT
2010 GMC Sierra 3500 HD SLE
2010 GMC Sierra 3500 HD SLT
2010 GMC Sierra 3500 HD WT
