Fluidampr fdr300009 - 1989-2002 Dodge Cummins 5.9L 12V/24V High Strength Bolt Kit

For 1989-2002 5.9L Cummins 12v/24v applications up to 700 hp / 1,250 ft-lbs torque, Fluidampr recommends damper installation with the High Strength Bolt Kit for secure mounting. Kit features heat treated, high strength bolts from ARP? and a diamond impregnated friction washer. Harmonic Balancer - Fluidampr - Installation Kit - 1989-2002 5.9L Cummins 12v/24v - Up to 700hp/1250tq -under head length 1.425 -thread 12mm x 1.25 -head size 9/16 12pt (14mm)

• High quality hardware.
• Secure mounting.

The Fluidampr fdr300009 High Strength Bolt Kit is designed for damper installation on 1989-2002 5.9L Cummins 12V and 24V applications producing up to 700 hp and 1,250 ft-lbs of torque. The kit provides high-strength mounting hardware and a diamond-impregnated friction washer for secure installation.

Hardware includes heat-treated high-strength bolts from ARP, with a 1.425-inch under-head length, 12mm x 1.25 thread, and 9/16-inch 12-point (14mm) head size. The kit is listed for 1998-2002 Dodge Ram 2500 and 3500 applications. One kit is included per part number.

Key Features & Performance Benefits

• High-strength hardware: Heat-treated bolts support secure damper mounting.
• Diamond-impregnated friction washer: Helps provide secure mounting.
• Broad Cummins application range: Designed for 1989-2002 5.9L Cummins 12V and 24V applications.
• High-output application support: Recommended for applications up to 700 hp and 1,250 ft-lbs of torque.

Key Product Specifications & Technical Data

• Brand: Fluidampr
• Part number: fdr300009
• Product type: Harmonic balancer installation kit
• Engine application: 5.9L Cummins 12V/24V
• Application years: 1989-2002
• Maximum listed output: 700 hp / 1,250 ft-lbs torque
• Thread: 12mm x 1.25
• Head size: 9/16-inch 12-point (14mm)

What's Included

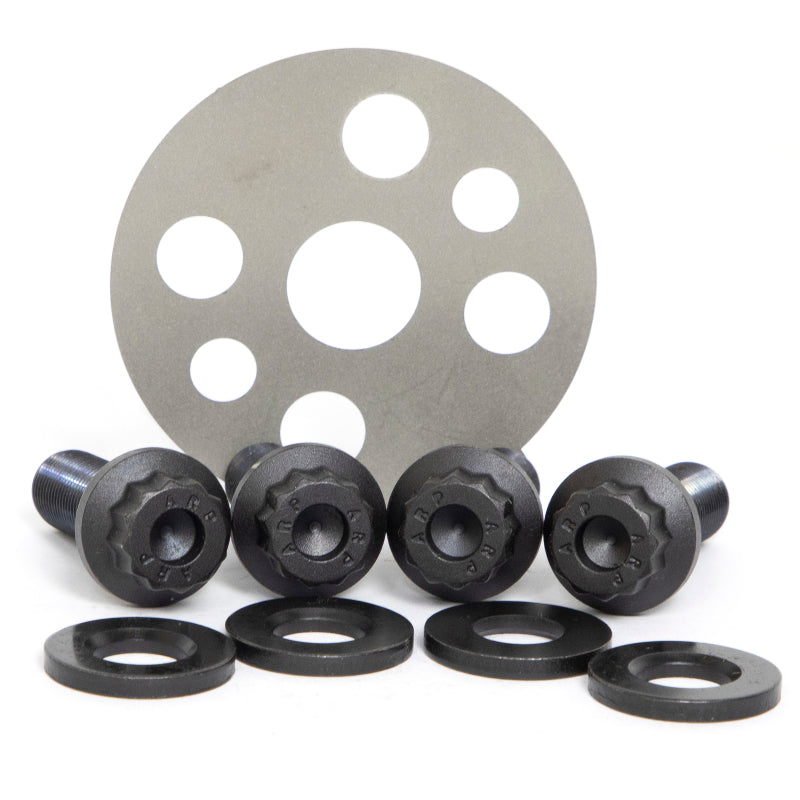

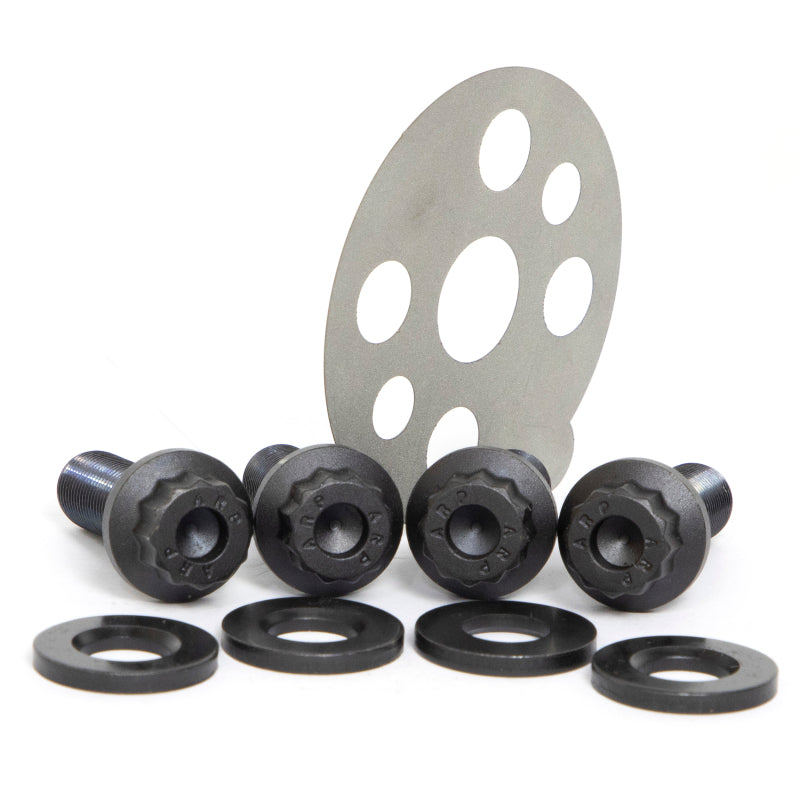

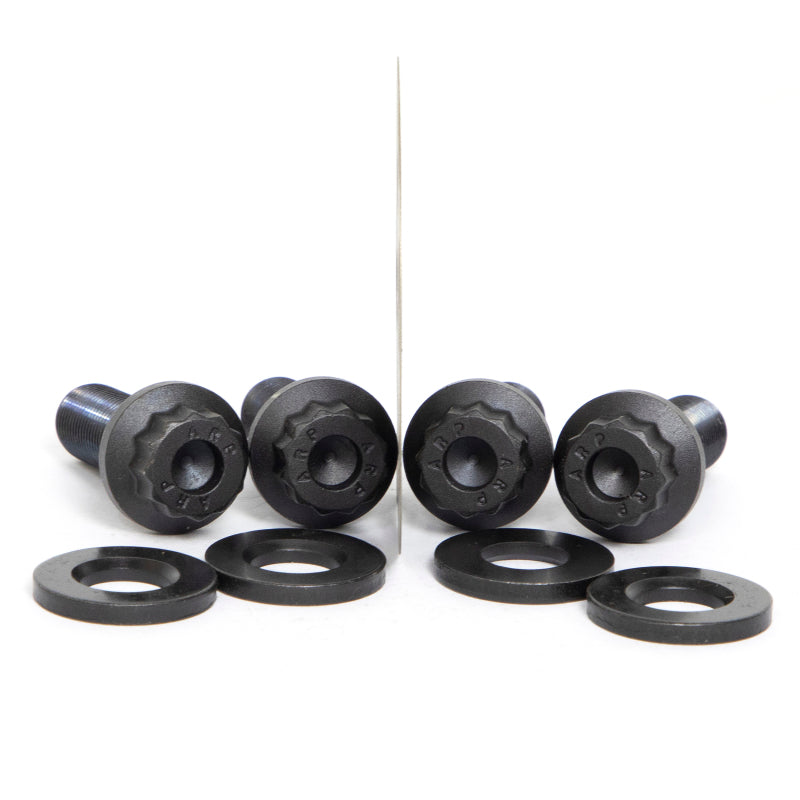

High-strength installation bolts and a diamond-impregnated friction washer.

Fitment

Fits 1998-2002 Dodge Ram 2500 and Dodge Ram 3500 models.

Fitments:
1998 Dodge Ram 2500 Base
1998 Dodge Ram 3500 Base
1999 Dodge Ram 2500 Base
1999 Dodge Ram 3500 Base
2000 Dodge Ram 2500 Base
2000 Dodge Ram 3500 Base
2001 Dodge Ram 2500 Base
2001 Dodge Ram 3500 Base
2002 Dodge Ram 2500 Base
2002 Dodge Ram 3500 Base

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
