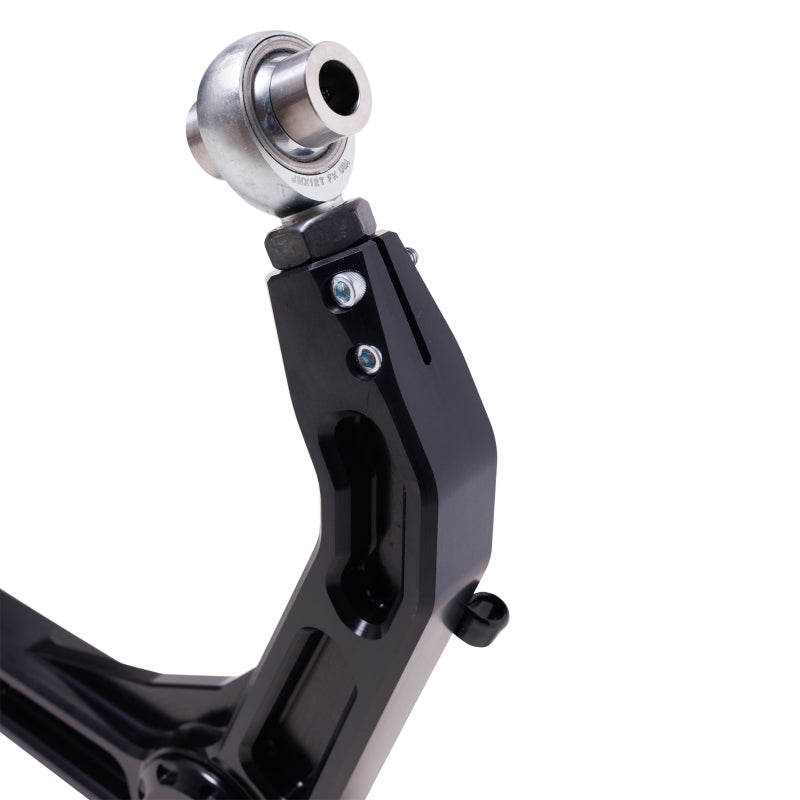

FOX 803-35-000 Billet Upper Control Arms for 2022-2025 Toyota Tundra and 2023 Toyota Sequoia

The Upper Control Arms (UCA) are consider the first step when building a mid-travel truck, to unlock the vehicles off-road capability through tough terrain. Our engineers spent time evaluating suspension geometry and optimized the UCAs specifically for the intended vehicle. Lifting a vehicle compromises the OEM alignment specification by introducing too much caster, FOX UCAs provide the necessary correction to maintain the vehicle's alignment while maximizing droop travel for more articulation off-road. Additional caster helps reduce wander at high-speed for more confidence behind the wheel. You'll notice a precise comfortable ride on rougher roads and trails. TOYOTA TUNDRA | UPPER CONTROL ARM | (2022-2025) FOX Upper Control Arms feature a lifetime warranty on the aluminum arm. This is backed by a 12 month warranty on all serviceable components and finishes.

• Stainless-steel taper misalignment spacers and 12-point bolts at the steering knuckle ensure a reliable and precise fit. Bolt-on the UCAs without any modification to the vehicle chassis
• The 3/4" chromoly heim joints are fully adjustable allowing for fine tuning of caster and camber. The Kevlar fiber reinforced PTFE liner to prevent binding and long-lasting precision
• FOX upper control arms are CNC machined in the USA from T6061 billet aluminum. Type II anodization offers superior corrosion resistance and feature a laser etched FOX logo
• 1.25" uniballs are comprised of a hard chrome plated ball and low carbon steel race to increase service life. A PTFE liner mitigates noise to keep the ride comfortable
• Stainless-Steel Taper Misalignment Spacers And 12-Point Bolts At The Steering Knuckle Ensure A Reliable And Precise Fit
• 1.25 in. Uniballs Are Comprised Of A Hard Chrome Plated Ball And Low Carbon Steel Race To Increase Service Life
• The 3/4 in. Chromoly Heim Joints Are Fully Adjustable Allowing For Fine Tuning Of Caster And Camber
• Type II Anodization Offers Superior Corrosion Resistance And Feature A Laser Etched FOX Logo
• The Kevlar Fiber Reinforced PTFE Liner To Prevent Binding And Long-Lasting Precision
• FOX Upper Control Arms Are CNC Machined In The USA From T6061 Billet Aluminum
• Bolt-On The Ucas w/o Any Modification To The Vehicle Chassis
• PTFE Liner Mitigates Noise To Keep The Ride Comfortable

Upgrade the off-road capability of your 2022-2025 Toyota Tundra or 2023 Toyota Sequoia with FOX 803-35-000 Billet Upper Control Arms. Designed as a foundational upgrade for mid-travel suspension builds, these upper control arms optimize suspension geometry, help restore alignment after lifting, and maximize droop travel for improved articulation over rough terrain. Additional caster helps reduce high-speed wander, providing more confident handling on roads and trails.

Each FOX upper control arm is CNC machined in the USA from T6061 billet aluminum and finished with Type II anodization for enhanced corrosion resistance. The aluminum arm is backed by a lifetime warranty, while serviceable components and finishes are covered by a 12-month warranty. Bolt-on installation requires no modifications to the vehicle chassis, making these arms a practical solution for lifted applications.

• Precision Fit: Stainless-steel taper misalignment spacers and 12-point steering-knuckle bolts provide a reliable, accurate installation.
• Adjustable Alignment: Fully adjustable 3/4-inch chromoly heim joints allow fine tuning of caster and camber.
• Long-Term Durability: Kevlar fiber-reinforced PTFE liners resist binding and support long-lasting precision.
• Quiet Articulation: 1.25-inch uniballs use a hard chrome-plated ball, low-carbon steel race, and PTFE liner to increase service life while helping reduce noise.

Key Product Specifications & Technical Data

• Brand: FOX
• Part Number: 803-35-000
• Product Type: Upper control arm assembly
• Application: Mid-travel and lifted suspension systems
• Arm Material: T6061 billet aluminum
• Joint Type: 3/4-inch chromoly adjustable heim joint
• Uniball Size: 1.25 inches
• Finish: Type II anodized aluminum with laser-etched FOX logo

What's Included in the Box

The box includes FOX billet aluminum upper control arms, adjustable chromoly heim joints, uniball assemblies, stainless-steel taper misalignment spacers, and 12-point steering-knuckle hardware required for bolt-on installation. Fitment includes select 2022-2025 Toyota Tundra applications and 2023 Toyota Sequoia applications; verify the vehicle configuration and suspension setup before ordering.

Features:

• Optimized suspension geometry helps restore alignment and increase droop travel on lifted vehicles.
• CNC-machined T6061 billet aluminum arms provide strength with a corrosion-resistant Type II anodized finish.
• Fully adjustable 3/4-inch chromoly heim joints allow precise caster and camber adjustment.
• 1.25-inch uniballs with chrome-plated balls, steel races, and PTFE liners support durable, quiet articulation.

Fitments:
2022 Toyota Tundra 1794 Edition
2022 Toyota Tundra Capstone
2022 Toyota Tundra Limited
2022 Toyota Tundra Platinum
2022 Toyota Tundra SR
2022 Toyota Tundra SR5
2022 Toyota Tundra TRD Pro
2023 Toyota Sequoia Capstone
2023 Toyota Sequoia Limited
2023 Toyota Sequoia Platinum
2023 Toyota Sequoia SR5
2023 Toyota Sequoia TRD Pro
2023 Toyota Tundra 1794 Edition
2023 Toyota Tundra Capstone
2023 Toyota Tundra Limited
2023 Toyota Tundra Platinum
2023 Toyota Tundra SR
2023 Toyota Tundra SR5
2023 Toyota Tundra TRD Pro
2024 Toyota Sequoia Capstone
2024 Toyota Sequoia Limited
2024 Toyota Sequoia Platinum
2024 Toyota Sequoia SR5
2024 Toyota Sequoia TRD Pro
2024 Toyota Tundra 1794 Edition
2024 Toyota Tundra Capstone
2024 Toyota Tundra Limited
2024 Toyota Tundra Platinum
2024 Toyota Tundra SR
2024 Toyota Tundra SR5
2024 Toyota Tundra TRD Pro
2025 Toyota Sequoia 1794 Edition
2025 Toyota Sequoia Capstone
2025 Toyota Sequoia Limited
2025 Toyota Sequoia Platinum
2025 Toyota Sequoia SR5
2025 Toyota Sequoia TRD Pro
2025 Toyota Tundra 1794 Edition
2025 Toyota Tundra Capstone
2025 Toyota Tundra Limited
2025 Toyota Tundra Platinum
2025 Toyota Tundra SR
2025 Toyota Tundra SR5
2025 Toyota Tundra TRD Pro
2026 Toyota Sequoia 1794 Edition
2026 Toyota Sequoia Capstone
2026 Toyota Sequoia Limited
2026 Toyota Sequoia Platinum
2026 Toyota Sequoia SR5
2026 Toyota Sequoia TRD Pro
2026 Toyota Tundra 1794 Edition
2026 Toyota Tundra Capstone
2026 Toyota Tundra Limited
2026 Toyota Tundra Platinum
2026 Toyota Tundra SR
2026 Toyota Tundra SR5
2026 Toyota Tundra TRD Pro

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
