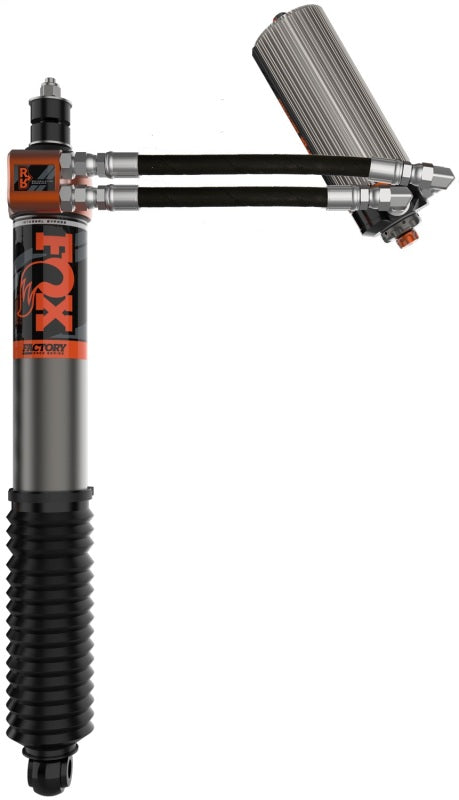

FOX 883-26-142 3.0 Factory Race Series Internal Bypass Rear Coilover for 2022-2023 Toyota Tundra, 1.5-2-Inch Lift

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV. Application specific valving to maximize performance Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.

• Performance Tuned For Vehicle Specific Application
• Aluminum Body Dissipates Heat Faster Than Steel
• Black Anodized CNC Machined Aluminum Components
• External Reservoir System Dissipates Heat Fast

Upgrade the rear suspension of your 2022-2023 Toyota Tundra with the FOX 883-26-142 3.0 Factory Race Series Internal Bypass Rear Coilover. Developed from FOX off-road race shocks, this application-specific suspension component delivers race-proven damping control, improved ride quality, and dependable performance for demanding trail and high-speed driving conditions. It is designed for Tundra applications equipped with a 1.5- to 2-inch lift.

The FOX Factory Race Series uses patented internal bypass technology to control oil flow through multiple zones of the shock stroke. This design helps provide compliant operation over smaller impacts while adding support as suspension forces increase. The FOX ride zone combines a race-developed piston, internal bypass, and Dual Speed Compression adjustment to help drivers fine-tune the suspension for vehicle weight, terrain, and speed.

A large aluminum shock body helps dissipate heat more efficiently than steel, supporting consistent damping performance during extended use. Black anodized, CNC-machined aluminum components, an external reservoir system, and a robust shaft with redundant seals provide durability in harsh off-road environments. The coilover is performance tuned for the Toyota Tundra application and is intended for serious off-road use. Professional installation and proper suspension setup are recommended. Verify vehicle configuration, lift height, and suspension compatibility before installation.

Key Product Specifications & Technical Data

• Brand: FOX
• Part Number: 883-26-142
• Series: Factory Race Series
• Product Type: Rear coilover shock
• Technology: Internal bypass with ride-zone damping control
• Adjustment: Dual Speed Compression adjustment
• Construction: Aluminum body with black anodized CNC-machined components
• Application: 2022-2023 Toyota Tundra with a 1.5- to 2-inch lift

What's Included

One FOX Factory Race Series 3.0 internal bypass rear coilover. Installation hardware and accessories not specifically listed by the manufacturer are not included.

Features:

• Performance tuned for the 2022-2023 Toyota Tundra with a 1.5- to 2-inch lift
• Patented internal bypass technology provides controlled damping across multiple suspension zones
• Dual Speed Compression adjustment allows tuning for vehicle weight, terrain, and driving speed
• Aluminum body, external reservoir, and durable anodized components help manage heat and withstand demanding off-road use

Fitments:
2022 Toyota Tundra 1794 Edition
2022 Toyota Tundra Capstone
2022 Toyota Tundra Limited
2022 Toyota Tundra Platinum
2022 Toyota Tundra SR
2022 Toyota Tundra SR5
2022 Toyota Tundra TRD Pro
2023 Toyota Tundra 1794 Edition
2023 Toyota Tundra Capstone
2023 Toyota Tundra Limited
2023 Toyota Tundra Platinum
2023 Toyota Tundra SR
2023 Toyota Tundra SR5
2023 Toyota Tundra TRD Pro
2024 Toyota Tundra 1794 Edition
2024 Toyota Tundra Capstone
2024 Toyota Tundra Limited
2024 Toyota Tundra Platinum
2024 Toyota Tundra SR
2024 Toyota Tundra SR5
2024 Toyota Tundra TRD Pro
2025 Toyota Tundra 1794 Edition
2025 Toyota Tundra Capstone
2025 Toyota Tundra Limited
2025 Toyota Tundra Platinum
2025 Toyota Tundra SR
2025 Toyota Tundra SR5
2025 Toyota Tundra TRD Pro
2026 Toyota Tundra 1794 Edition
2026 Toyota Tundra Capstone
2026 Toyota Tundra Limited
2026 Toyota Tundra Platinum
2026 Toyota Tundra SR
2026 Toyota Tundra SR5
2026 Toyota Tundra TRD Pro

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
