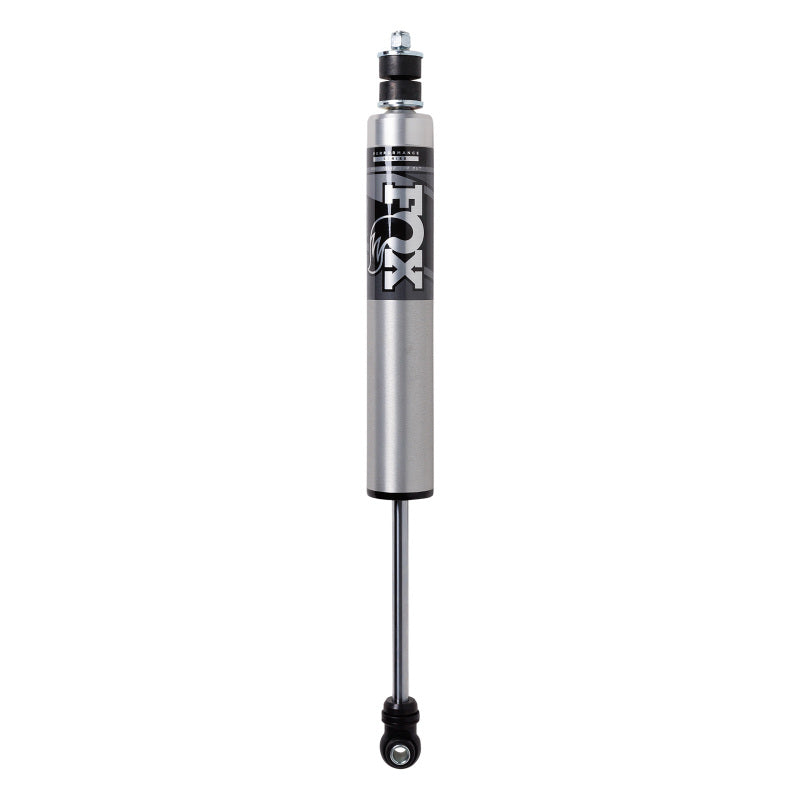

FOX 987-24-050 2.5 Performance Series HTO Rear Shock for 2013-2015 Ram 3500 with 0-3 in. Lift

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control. Application specific valving to maximize performance. Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. Tuned specifically for your vehicle’s application._x000D__x000D_ _x000D__x000D_ Consistent and fade-resistant performance due to high-quality materials: aluminum bodies, race-developed main piston, and a true internal floating piston (IFP) to separate gas and oil._x000D__x000D_ _x000D__x000D_ Built-to-last, torture-tested and race-proven to give a lifetime of great rides. FOX products are built from aluminum, dissipating heat four times better than conventional materials. All FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

• 2.5 in. Impact Extruded 6061-T6 Aluminum Shock Body
• 2.5” Impact extruded 6061-T6 aluminum shock body
• High-flow velocity-sensitive damping
• Type II clear-anodized body plating
• Fully rebuildable and re-tunable
• Internal floating piston (IFP)
• Hydraulic Top Out (HTO) piston
• Hydraulic Top Out [HTO] Piston
• Application specific tune
• 5/8 in. Hard Chrome Shaft
• 5/8” hard chrome shaft
• Corrosion resistant

Improve the ride quality, damping control, and off-road capability of your Ram 3500 with the FOX 987-24-050 2.5 Performance Series HTO rear shock. Designed for trucks with a 0-3 inch lift, this bolt-on shock uses vehicle-specific valving to provide a controlled, connected feel on pavement while increasing performance over rough terrain. Its Hydraulic Top Out (HTO) technology delivers position-sensitive rebound control, helping reduce harsh top-outs and improve comfort when the suspension reaches full extension.

The 2.5-inch impact-extruded 6061-T6 aluminum body efficiently dissipates heat and resists corrosion, supporting consistent performance during demanding towing, off-road, and high-load use. A true internal floating piston (IFP) separates the shock oil from the high-pressure nitrogen to optimize damping consistency and help minimize fade. The race-developed main piston and high-flow velocity-sensitive damping design further enhance control, particularly for vehicles equipped with heavier tires or lifted suspension systems.

Built for long-term service, the FOX Performance Series HTO shock features a hard-chrome shaft, Type II clear anodized body plating, and a fully rebuildable and re-tunable construction. The application-specific tune is engineered for the rear suspension of the 2013-2015 Ram 3500, helping deliver improved stability, reduced body motion, and dependable performance in both daily driving and off-road conditions. This shock is sold individually and is intended as a direct bolt-on replacement for compatible applications.

Key Product Specifications and Technical Data

• Brand: FOX
• Part Number: 987-24-050
• Series: 2.5 Performance Series HTO
• Shock Position: Rear
• Suspension Compatibility: 0-3 in. lift
• Shock Body Material: Impact-extruded 6061-T6 aluminum
• Damping Technology: Internal floating piston and Hydraulic Top Out
• Shaft Construction: 5/8 in. hard-chrome shaft

What's Included

• One FOX 2.5 Performance Series HTO rear shock

Fitment: Fits select 2013, 2014, and 2015 Ram 3500 applications. Verify vehicle configuration, suspension setup, and required quantity before ordering.

Features:

• Application-specific valving: Tuned for the Ram 3500 rear suspension to improve ride control, stability, and damping performance.
• Hydraulic Top Out technology: Uses position-sensitive rebound control to reduce harsh top-outs and improve comfort at full suspension extension.
• Internal floating piston: Separates shock oil from high-pressure nitrogen for consistent damping and fade resistance.
• Durable aluminum construction: The 6061-T6 aluminum body dissipates heat efficiently and resists corrosion in demanding environments.

Fitments:
2014 Ram 3500 Big Horn
2014 Ram 3500 Laramie
2014 Ram 3500 Laramie Limited
2014 Ram 3500 Laramie Longhorn
2014 Ram 3500 Lone Star
2014 Ram 3500 SLT
2014 Ram 3500 Tradesman
2015 Ram 3500 Big Horn
2015 Ram 3500 Laramie
2015 Ram 3500 Laramie Limited
2015 Ram 3500 Laramie Longhorn
2015 Ram 3500 Lone Star
2015 Ram 3500 SLT
2015 Ram 3500 Tradesman
2016 Ram 3500 Big Horn
2016 Ram 3500 Laramie
2016 Ram 3500 Laramie Longhorn
2016 Ram 3500 Limited
2016 Ram 3500 SLT
2016 Ram 3500 Tradesman
2017 Ram 3500 Big Horn
2017 Ram 3500 Laramie
2017 Ram 3500 Laramie Longhorn
2017 Ram 3500 Limited
2017 Ram 3500 Lone Star
2017 Ram 3500 SLT
2017 Ram 3500 Tradesman
2018 Ram 3500 Big Horn
2018 Ram 3500 Laramie
2018 Ram 3500 Laramie Longhorn
2018 Ram 3500 Limited
2018 Ram 3500 SLT
2018 Ram 3500 Tradesman
2019 Ram 3500 Big Horn
2019 Ram 3500 Laramie
2019 Ram 3500 Laramie Longhorn
2019 Ram 3500 Limited
2019 Ram 3500 Lone Star
2019 Ram 3500 SLT
2019 Ram 3500 Tradesman
2020 Ram 3500 Big Horn
2020 Ram 3500 Laramie
2020 Ram 3500 Laramie Longhorn
2020 Ram 3500 Limited
2020 Ram 3500 Lone Star
2020 Ram 3500 SLT
2020 Ram 3500 Tradesman
2021 Ram 3500 Big Horn
2021 Ram 3500 Laramie
2021 Ram 3500 Limited
2021 Ram 3500 Limited Longhorn
2021 Ram 3500 Lone Star
2021 Ram 3500 SLT
2021 Ram 3500 Tradesman
2022 Ram 3500 Big Horn
2022 Ram 3500 Laramie
2022 Ram 3500 Limited
2022 Ram 3500 Limited Longhorn
2022 Ram 3500 Lone Star
2022 Ram 3500 SLT
2022 Ram 3500 Tradesman
2023 Ram 3500 Big Horn
2023 Ram 3500 Laramie
2023 Ram 3500 Limited
2023 Ram 3500 Limited Longhorn
2023 Ram 3500 SLT
2023 Ram 3500 Tradesman
2024 Ram 3500 Big Horn
2024 Ram 3500 Laramie
2024 Ram 3500 Limited
2024 Ram 3500 Limited Longhorn
2024 Ram 3500 SLT
2024 Ram 3500 Special Service
2024 Ram 3500 Tradesman
2025 Ram 3500 Big Horn
2025 Ram 3500 Laramie
2025 Ram 3500 Limited
2025 Ram 3500 Limited Longhorn
2025 Ram 3500 Special Service
2025 Ram 3500 Tradesman
2026 Ram 3500 Big Horn
2026 Ram 3500 Laramie
2026 Ram 3500 Limited
2026 Ram 3500 Limited Longhorn
2026 Ram 3500 Special Service
2026 Ram 3500 Tradesman
