FOX Factory Race Series 3.2 Internal Bypass Rear Shocks for 2025+ Toyota 4Runner, 2024+ Land Cruiser and Lexus GX 550, Part Number FOX883-26-169

FOX Factory Race Series 3.2 Internal Bypass shocks for the LC250, GX550, and 4Runner chassis deliver velocity and position-sensitive damping technology, Dual Speed Compression Evolution (DSC EVO) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. Type II anodization prevents corrosion and wear of the 3.2-inch diameter aluminum bodies. Finned reservoirs increase oil capacity, house an IFP, and feature a DSC EVO adjuster. DSC EVO utilizes Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity. FOX 3.2 shocks with Internal Bypass provide the support, adjustment, and confidence you need while driving at speed. Experience race-bred performance next time you leave the pavement. Application specific valving to maximize performance Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.

• Application-specific springs and vehicle-specific tuning maximizes performance.
• 3.2 in. Impact-Extruded And CNC-Machined 6061-T6 Type II Anodized Aluminum Body
• Position- and velocity-sensitive damping maximize control through any terrain.
• Patented, internal bypass design Finned remote reservoir with DSC EVO adjuster
• Application-Specific Springs And Vehicle-Specific Tuning Maximizes Performance
• Position- And Velocity-Sensitive Damping Maximize Control Through Any Terrain
• 3.2" impact-extruded and CNC-machined 6061-T6 Type II anodized aluminum body
• Patented; Internal Bypass Design Finned Remote Reservoir w/DSC EVO Adjuster
• Redundant Sealing Pack System - Main Seal; Wiper Seal; Scraper Seal
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• 7/8 in. Hard Chromed Steel Shafts
• 7/8" hard chromed steel shafts

Brief Description: FOX Factory Race Series 3.2 Internal Bypass rear shocks deliver race-inspired control, comfort, and adjustability for the 2025 and newer Toyota 4Runner, 2024 and newer Toyota Land Cruiser, and 2024 and newer Lexus GX 550. Part number FOX883-26-169 features a bolt-on design, application-specific valving, and vehicle-specific tuning for vehicles with 0 to 1.5 inches of lift.

Patented Internal Bypass technology creates multiple damping zones throughout the shock stroke. Oil flows around the main piston in the ride zone for improved small-bump compliance, then moves through the piston as the shock enters deeper compression or rebound zones. This position- and velocity-sensitive design progressively increases damping to control hard bottom-outs, reduce harsh top-outs, and improve stability over rough terrain.

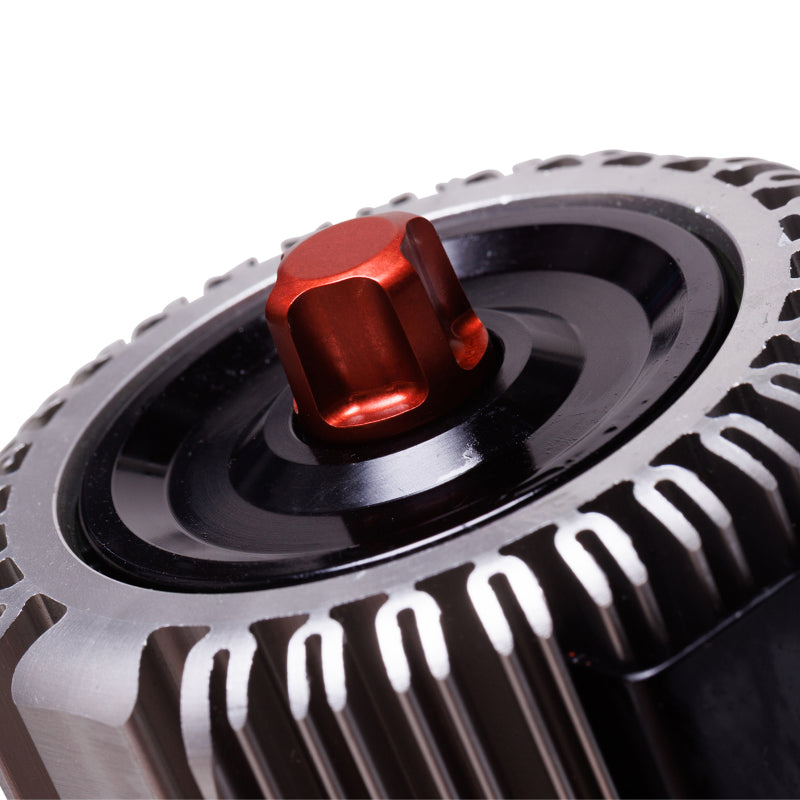

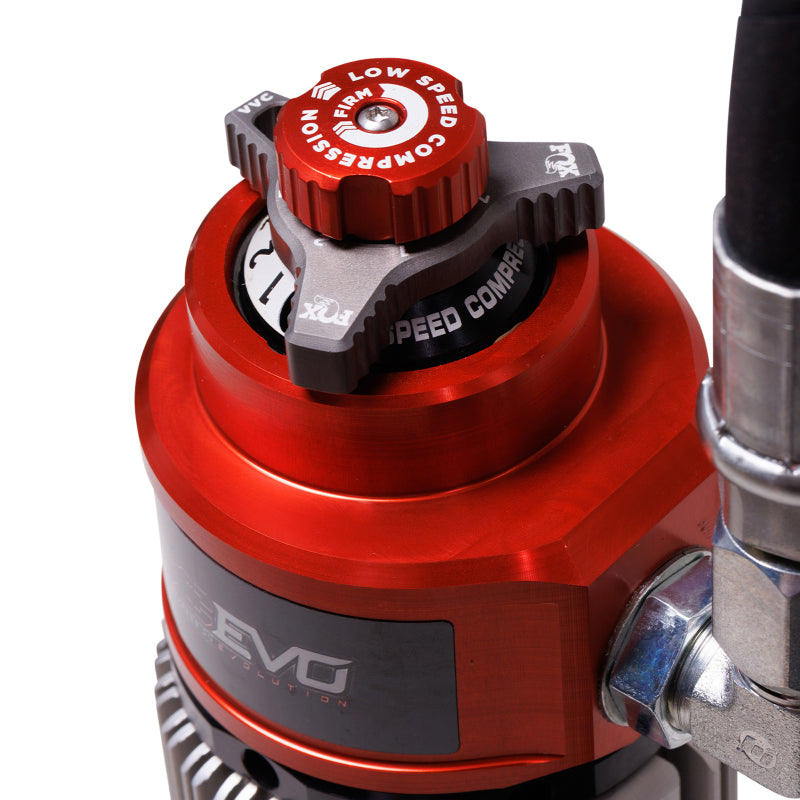

The finned remote reservoir increases oil capacity and houses an internal floating piston for consistent performance during demanding driving. The integrated Dual Speed Compression Evolution (DSC EVO) adjuster provides independent high- and low-speed compression tuning, while Variable Valve Control adjusts the high-speed circuit without adding preload to the shim stack. This helps maintain small-bump sensitivity while adding support for larger impacts and higher-speed terrain. The 3.2-inch impact-extruded and CNC-machined 6061-T6 aluminum body uses Type II anodization for improved corrosion and wear resistance. A 7/8-inch hard-chromed steel shaft and redundant main, wiper, and scraper seals provide durability in demanding environments.

Fitment includes the 2024+ Toyota Land Cruiser, 2024+ Lexus GX 550, and 2025+ Toyota 4Runner. Confirm vehicle configuration, suspension lift, and application-specific requirements before installation.

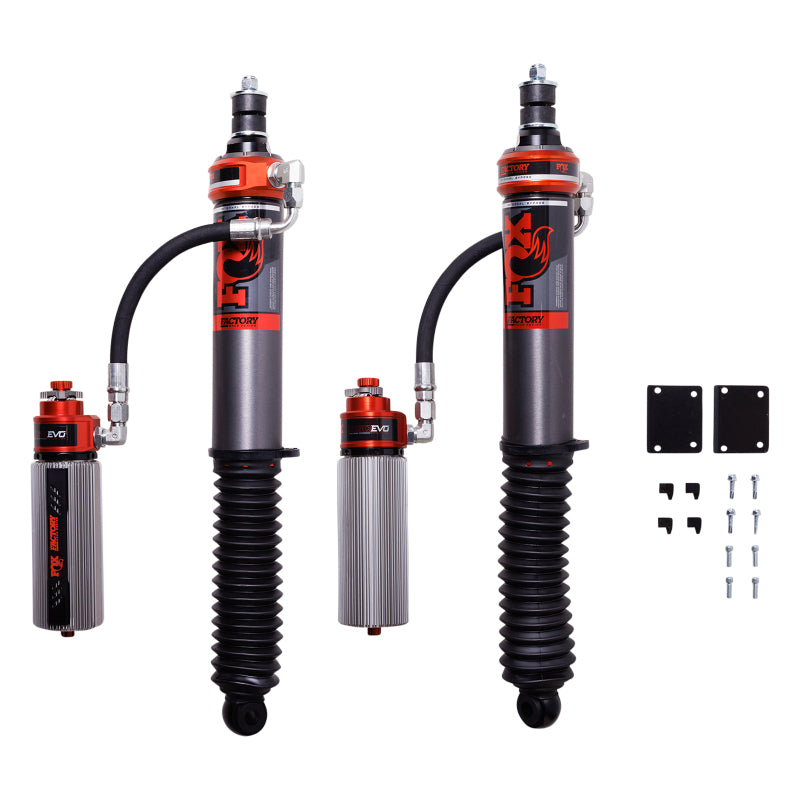

What's Included

• FOX Factory Race Series 3.2 Internal Bypass rear shocks
• Finned remote reservoirs with DSC EVO adjusters
• Application-specific components and vehicle-specific tuning

Features:

• Application-specific valving and vehicle-specific tuning optimize control and performance for the intended chassis.
• Patented Internal Bypass technology provides position- and velocity-sensitive damping through multiple zones of the shock stroke.
• Dual Speed Compression Evolution adjustment enables independent high- and low-speed compression tuning.
• Finned remote reservoirs and Variable Valve Control increase heat capacity and high-speed impact support while preserving small-bump sensitivity.

Fitments:
2024 Lexus GX550 Luxury
2024 Lexus GX550 Luxury+
2024 Lexus GX550 Overtrail
2024 Lexus GX550 Overtrail+
2024 Lexus GX550 Premium
2024 Lexus GX550 Premium+
2024 Toyota Land Cruiser 1958
2024 Toyota Land Cruiser Base
2024 Toyota Land Cruiser First Edition
2025 Lexus GX550 Luxury
2025 Lexus GX550 Luxury+
2025 Lexus GX550 Overtrail
2025 Lexus GX550 Overtrail+
2025 Lexus GX550 Premium
2025 Lexus GX550 Premium+
2025 Toyota 4Runner Limited
2025 Toyota 4Runner Platinum
2025 Toyota 4Runner SR5
2025 Toyota 4Runner Trailhunter
2025 Toyota 4Runner TRD Off-Road
2025 Toyota 4Runner TRD Off-Road Premium
2025 Toyota 4Runner TRD Pro
2025 Toyota 4Runner TRD Sport
2025 Toyota 4Runner TRD Sport Premium
2025 Toyota Land Cruiser 1958
2025 Toyota Land Cruiser Base
2026 Lexus GX550 Luxury
2026 Lexus GX550 Luxury+
2026 Lexus GX550 Overtrail
2026 Lexus GX550 Overtrail+
2026 Lexus GX550 Premium
2026 Lexus GX550 Premium+
2026 Toyota 4Runner Limited
2026 Toyota 4Runner Platinum
2026 Toyota 4Runner SR5
2026 Toyota 4Runner Trailhunter
2026 Toyota 4Runner TRD Off-Road
2026 Toyota 4Runner TRD Off-Road Premium
2026 Toyota 4Runner TRD Pro
2026 Toyota 4Runner TRD Sport
2026 Toyota 4Runner TRD Sport Premium
2026 Toyota Land Cruiser 1958
2026 Toyota Land Cruiser Base

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
