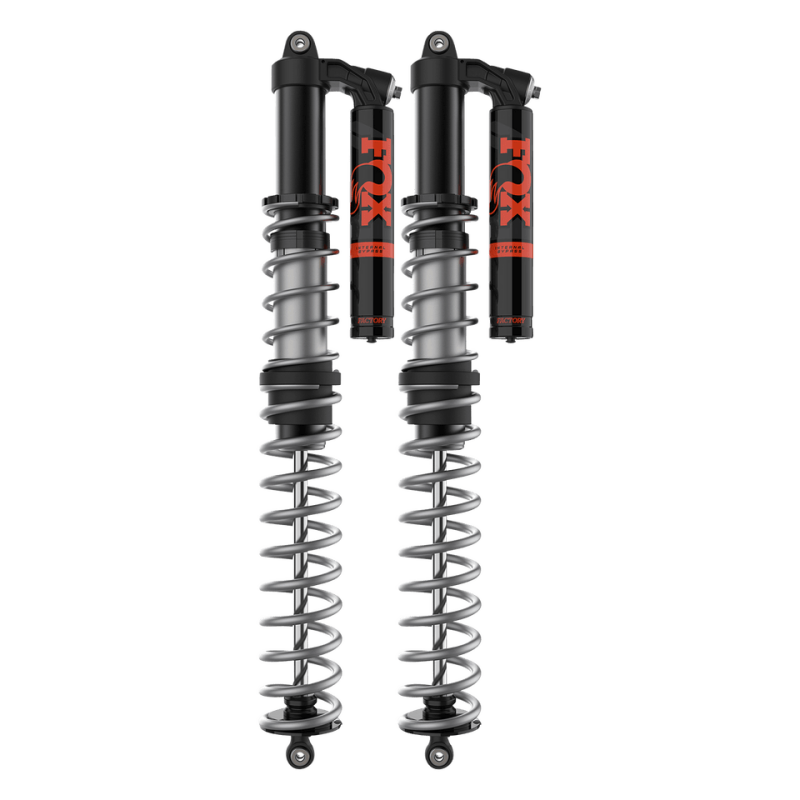

FOX Powersports Race Series 3.0 Internal Bypass Rear Shocks for Kawasaki Teryx KRX 1000, Part Number FOX885-08-509-2

Direct bolt in replacement for 2 rear shocks

• Position-sensitive internal bypass damping tubes
• Adjustable Dual-Speed Compression (DSC)
• Adjustable wide range rebound
• Adjustable spring crossover
• Adjustable spring preload

Upgrade the rear suspension of your Kawasaki Teryx KRX 1000 with the FOX Powersports Race Series 3.0 Internal Bypass Rear Shocks. Part Number FOX885-08-509-2 is a direct bolt-in replacement for the two rear shocks, delivering tunable damping and improved suspension control for demanding off-road use. The position-sensitive internal bypass design provides progressive damping through the suspension stroke, helping balance ride comfort, traction, and bottom-out resistance.

These FOX Race Series shocks feature adjustable Dual-Speed Compression (DSC), allowing separate low-speed and high-speed compression tuning to suit terrain, vehicle setup, and driving style. Adjustable wide-range rebound control helps manage suspension extension and wheel movement, while adjustable spring crossover and spring preload provide additional control over suspension response and ride characteristics. The result is a versatile rear suspension system that can be fine-tuned for trail riding, technical terrain, and performance-focused recreational use.

This rear shock package is designed for 2020-2023 Kawasaki KRF1000 Teryx KRX 1000 models, including Special Edition, Trail Edition, and eS applications where listed. The package includes two rear FOX Race Series shocks. Professional installation and suspension setup are recommended to ensure proper adjustment for the vehicle, rider, cargo, and intended terrain.

Product Specifications and Technical Data

• Brand: FOX Powersports
• Part Number: FOX885-08-509-2
• Product Type: Rear performance shocks
• Series: Race Series
• Shock Design: 3.0-inch internal bypass
• Compression Adjustment: Dual-Speed Compression (DSC)
• Rebound Adjustment: Wide-range adjustable rebound
• Application: Two-seat Kawasaki Teryx KRX 1000

What's Included

• Two FOX Race Series rear shocks
• Installation and adjustment hardware as supplied by FOX Powersports

Fitment

Fits 2020-2023 Kawasaki KRF1000 Teryx KRX 1000, including applicable 2021-2023 Special Edition, Trail Edition, and eS models.

Features:

• Direct bolt-in replacement for two rear shocks on compatible Kawasaki Teryx KRX 1000 models
• Position-sensitive internal bypass damping tubes provide progressive suspension control through the shock stroke
• Adjustable Dual-Speed Compression (DSC) enables independent low-speed and high-speed compression tuning
• Adjustable wide-range rebound, spring crossover, and spring preload support precise suspension setup

Fitments:
2020 Kawasaki KRF1000 Teryx KRX 1000 Base
2021 Kawasaki KRF1000 Teryx KRX 1000 Base
2021 Kawasaki KRF1000 Teryx KRX 1000 eS Base
2021 Kawasaki KRF1000 Teryx KRX 1000 Special Edition Base
2021 Kawasaki KRF1000 Teryx KRX 1000 Trail Edition Base
2022 Kawasaki KRF1000 Teryx KRX 1000 Base
2022 Kawasaki KRF1000 Teryx KRX 1000 Special Edition Base
2022 Kawasaki KRF1000 Teryx KRX 1000 Trail Edition Base
2023 Kawasaki KRF1000 Teryx KRX 1000 Base
2023 Kawasaki KRF1000 Teryx KRX 1000 eS Base
2023 Kawasaki KRF1000 Teryx KRX 1000 Special Edition Base
2023 Kawasaki KRF1000 Teryx KRX 1000 Trail Edition Base
2024 Kawasaki KRF1000 Teryx KRX 1000 Base
2024 Kawasaki KRF1000 Teryx KRX 1000 Special Edition Base
2024 Kawasaki KRF1000 Teryx KRX 1000 Trail Edition Base
2025 Kawasaki KRF1000 Teryx KRX 1000 Base
2025 Kawasaki KRF1000 Teryx KRX 1000 Blackout Edition Base
2025 Kawasaki KRF1000 Teryx KRX 1000 Lifted Edition Base
2025 Kawasaki KRF1000 Teryx KRX 1000 Trail Edition Base

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: powersports
Epa: N/A
Regular Stock: false
Clearance Item: t
Units Per Sku: 1
